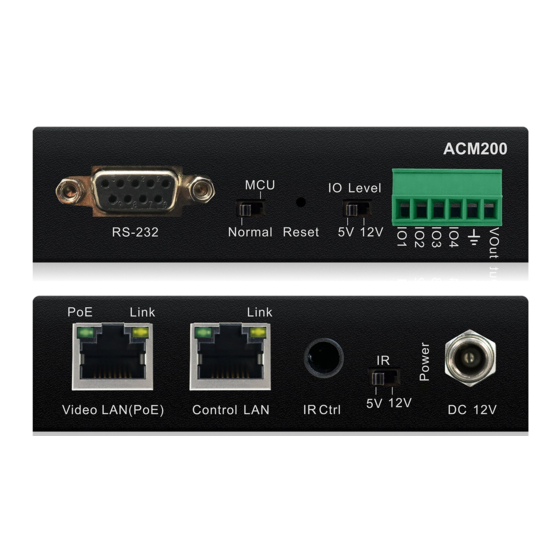

- Page 1 IO Level RS-232 Normal Reset Link Link Yellow Green Yellow Green 5V 12V Video LAN(PoE) Control LAN IR Ctrl DC 12V Blustream Multicast ACM200 - Advanced Control Module API Document RevA4 23/04/2019 M U L T I C A S T...
- Page 2 The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, Audio and Video. Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
- Page 3 IR as your Reserved for future use. method of controlling the Multicast system. When using the Blustream GPIO - Reserved for future use. IRCAB cable (optional) ensure cable Video LAN (PoE) - Connect to the direction is correct.
-
Page 4: Infrared Control
RS-232 Blustream have created 16x input & 16x output IR commands allowing source selection of up to 16x IPxxxUHD-TX Transmitters on up to 16x IPxxxUHD-RX Receivers. For systems larger than 16x source devices (IPxxxUHD-TX) it is recommended to use RS-232 or TCP/IP control. - Page 5 ACM200 API DEVELOPMENT VOut contact support@blustream.co.uk / support@blustream.com.au...
-
Page 6: Rs-232 And Telnet Commands
ACM200 API DEVELOPMENT RS-232 and Telnet Commands The Blustream Multicast system can be controlled via serial and TCP/IP. The following pages list all available serial commands for the Multicast solution. Common Mistakes • Carriage return – Some programs do not require the carriage return where as other will not work unless sent directly after the string. - Page 7 4:1080p@60 5:1080i@50 Set output xxx resolution to bypass (=0) 6:1080i@60 OUTxxxRESrr Set output xxx resolution to 2160p@30(=1) 7:720p@60 8:720p@50 9:1280x1024@60 10:1024x768@60 11:1360x768@60 12:1440x900@60 13:1680x1050@60 Single Receiver (output) status OUTxxxSTATUS (See status example at end of document) contact support@blustream.co.uk / support@blustream.com.au...
- Page 8 HDMI 4K@30Hz 4:4:4, Audio 7.1CH(Default) zz=16: HDMI 4K@60Hz 4:2:0, Audio 2CH PCM zz=17: HDMI 4K@60Hz 4:2:0, Audio 5.1CH DTS/DOLBY zz=18: HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HD Single Transmitter (input) status INyyySTATUS (See status example at end of document) www.blustream.co.uk / www.blustream.com.au...
- Page 9 (See status example at end of document) Single Video Wall status VWidxSTATUS (See status example at end of document) For full Video wall API commands including VW setup please see 'HELP COMMANDS' on page 17 of this manual. contact support@blustream.co.uk / support@blustream.com.au...
- Page 10 ACM200 Control port which gives the ability to show video status on third party control products. The image export feature requires the 3rd party control system to poll the blustream 'mxsta_Ver1.09.json' file (for a sample of this please contact Blustream technical support). the control system will poll this informaiton using the following link (the below link is based on default control port IP address of 192.168.0.225):...
- Page 11 Type "HELP" for more reference Output xxx does not exist (RX has not been configured) Input yyy does not exist (TX has not been configured) Output xxx is offline Input yyy is offline Param range error (outside of given settings) contact support@blustream.co.uk / support@blustream.com.au...
- Page 12 Out Net HPD Ver Mode Res Rotate Name 001 On Off A7.3.0 VW Receiver 001 Fast Fr Vid/Aud/IR_/Ser/USB/CEC HDR MCas 001 001/004/000/000/002/000 CEC DBG Stretch IR BTN LED SGEn/Br/Bit On On Off /9/8n1 Static 00:19:FA:00:59:3F 169.254.006.001 169.254.006.001 255.255.000.000 ================================================================ www.blustream.co.uk / www.blustream.com.au...
- Page 13 FW Version: 1.14 VW Col Row CfgSel Name Video Wall 2 OutID 001 002 003 004 CFG Name Configuration 1 Group FromIn Screen H01V01 H02V01 H01V02 H02V02 Configuration 2 Group FromIn Screen H02V01 H02V02 H01V01 H01V02 ================================================================ contact support@blustream.co.uk / support@blustream.com.au...
- Page 14 CFG Name Configuration 1 Group FromIn Screen H01V01 H02V01 H01V02 H02V02 Configuration 2 Group FromIn Screen H02V01 H02V02 H01V01 H01V02 ================================================================ ACM200> gpio00status ================================================================ IP Control Box ACM200 GPIO Info FW Version: 1.14 GPIO DIR Set Get ================================================================ www.blustream.co.uk / www.blustream.com.au...
- Page 15 OUT ooo GUEST: Start Serial Guest Mode To Output ooo Note: To Close Guest Mode Use Command CLOSEACMGUEST OUT [ooo] STATUS : Show Output ooo Detailed Status OUT ooo RB : Reboot Output ooo And Apply New Config contact support@blustream.co.uk / support@blustream.com.au...
- Page 16 IN [iii] STATUS : Show Input iii Detailed Status iii=000: Select All Input Ports iii=[001...n]: Select One Input Port id=[001...254]: ID value name: Max 16 Characters EDID iii CP ooo : Set Input iii EDID Copy From Output ooo www.blustream.co.uk / www.blustream.com.au...
- Page 17 VW idx HhhVvv OWaa VWww : Set Video Wall idx Position hh,vv Outer Width aa And View Width ww VW idx HhhVvv OHaa VHww : Set Video Wall idx Position hh,vv Outer Height aa And View Height ww aa=[100...1000]: Screen Outer Width/Height ww=[100...1000]: Screen View Width/Height contact support@blustream.co.uk / support@blustream.com.au...
- Page 18 Set Video LAN(POE) Config aaaa=LAN2: Set Control LAN(Web GUI) Config NET RB : Reboot Network And Apply New Config Call This Command After LAN Config Is Changed To Reboot Network NET TN xxxx : Set Telnet Port To xxxx www.blustream.co.uk / www.blustream.com.au...
- Page 19 ACM200 API DEVELOPMENT www.blustream.co.uk www.blustream.com.au contact support@blustream.co.uk / support@blustream.com.au...
