Web-GUI - Transmitters

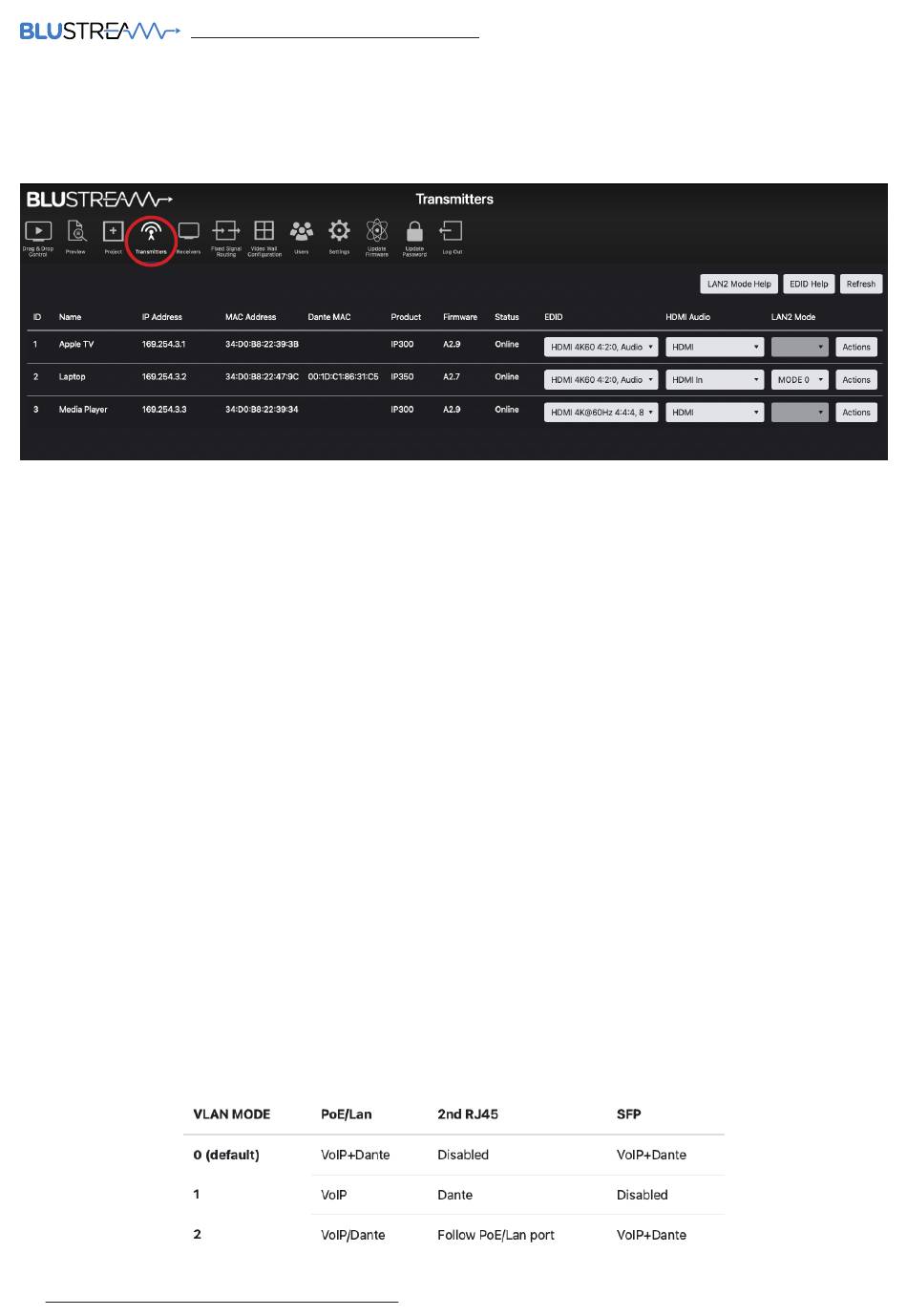

The Transmitter summary page is an overview of all Transmitter devices that have been configured within the system,
with the ability to update the system as required.
Features of the Transmitter summary page include:
1. ID - the ID (input) number is used for control of the Multicast system when using third party control platforms.
2. Name - the name assigned to the Transmitter (typically the device attached to the Transmitter).
3. IP Address - the IP address assigned to the Transmitter during configuration.
4. MAC Address - shows the MAC address of the Transmitter (LAN 1 port).
5. Dante MAC - shows the MAC address of the LAN2 port where independent Dante connectivity is being used. Please
see the button marked LAN2 Mode Help for further explanation on segregating Video and Dante networks.
6. Product - identifies the product in use that is connected to the system.
7. Firmware - firmware version currently loaded onto the Transmitter. For more information on firmware updating,
please see 'Update Firmware' section.
8. Status - shows the Online / Offline status of each Transmitter. Should a product show as 'Offline', check the units
connectivity to the network switch, speed of connection to the network.
9. EDID - fix the EDID value for each Transmitter (source). This is used to request specific video and audio resolutions
for the source device to output. Basic help can be obtained on EDID selection by clicking the button at the top of
the page marked 'EDID Help'. The available EDID selections used for IP50HD, IP2xxUHD, and IP3xxUHD systems all
differ.
10. HDMI Audio - selects either original HDMI audio, or replaces the embedded audio with a local analogue audio
input on the Transmitter. Default setting will be 'Auto'.
11. LAN2 Mode: where IP250UHD or IP350UHD are being used, the option to separate the Dante audio for connectivity
to a separate Dante network is controlled from here. Where IP200UHD or IP300UHD are being used, this option is
not selectable. See table below for LAN selection.
12. Actions - opens a pop-up window with advanced configuration settings. See following page for further
information.
13. Refresh - refresh all current information on the devices within the system.
