Fixed Routed Audio
The ACM allows for the audio component of a HDMI signal to be routed independently throughout the Blustream
Multicast system. Under normal operation the embedded audio within a HDMI signal will be distributed with the
associated video signal from Transmitter to Receiver/s.
The fixed audio routing capabilities of the ACM allows for the audio track from one source to be embedded onto
another Transmitters video stream.

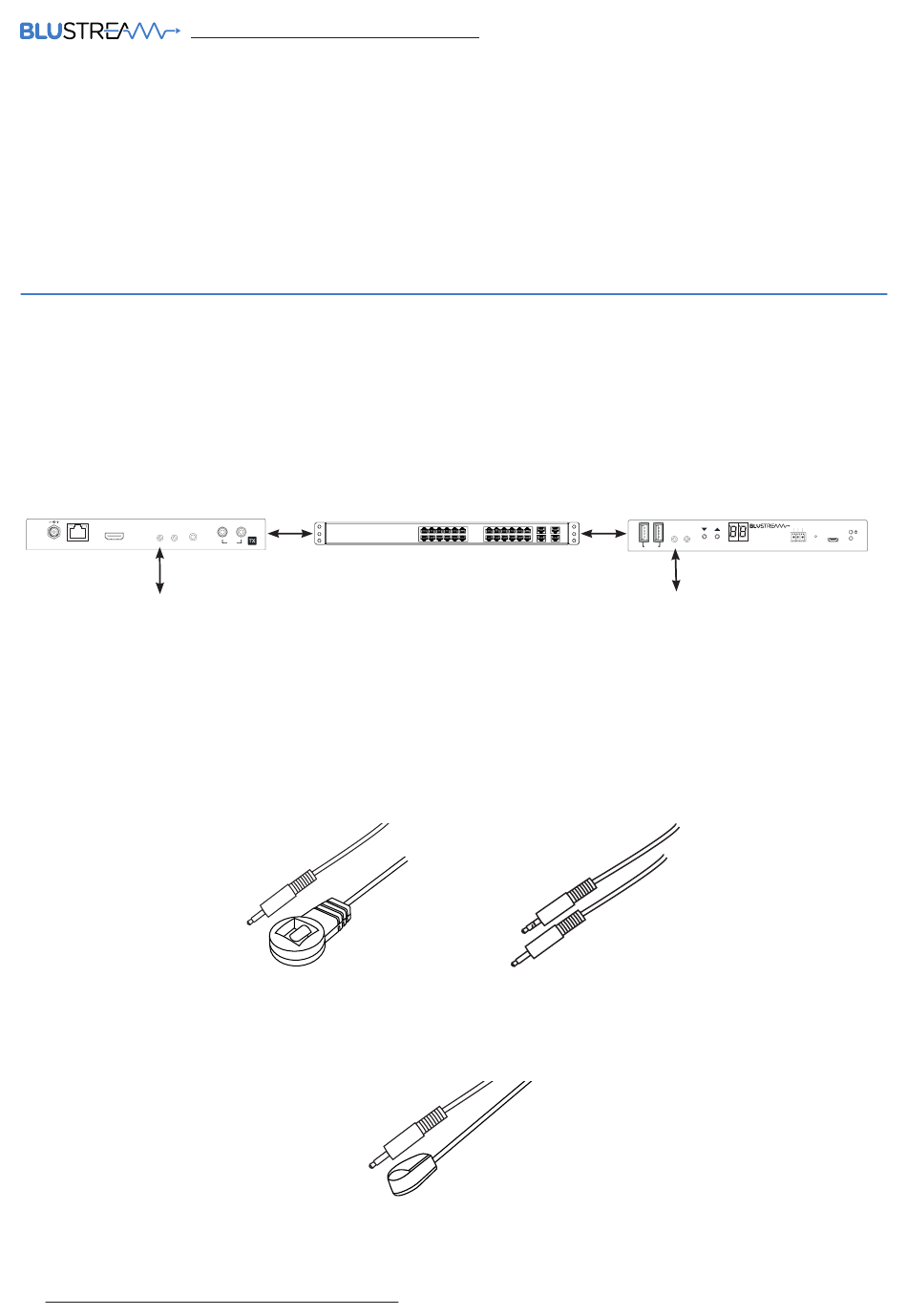

Fixed Routed IR
The fixed IR routing feature allows a fixed bi-directional IR link between 2x Multicast products. The IR signal is only
routed between configured RX to TX, or TX to TX products. This can be useful for sending IR from a centrally located
third party control solution (ELAN, Control4, RTi, Savant etc) and using the Blustream Multicast system as a method of
extending IR out to a display or another product in the system. The IR link is bi-directional so can also be sent back the
opposite way at the same time.
Rx Tx Gnd
CH SELECT
CH RS-232
MULTICAST UHD UPDATE
HDMI IN
AUDIO
IR IR
DC IN
LAN / PoE IN OUT IN
24~56V
IR
Third party control system
i.e. - Control4, ELAN, RTi etc.
Connections:
The third party control processor IR, or Blustream IR receiver, is connected to the IR RX socket on the Multicast Trans-
mitter or Receiver.
Please note: You must use Blustream 5V IRR Receiver or Blustream IRCAB (3.5mm stereo to mono 12V to 5V IR con-
verter cable). Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solu-
tions.
The Blustream 5V IRE1 Emitter is connected to the IR OUT socket on the Multicast Transmitter or Receiver.
The Blustream IRE1 & IRE2 Emitters are designed for discrete IR control of hardware.
(IRE2 - Dual Eye Emitter sold separately)
26
IR IR
LINK
USB CH SELECT
CH
IP200UHD-TX OUT IN
1 USB 2
HDMI OUT
L / R
LAN / PoE LOOP OUT
ACM - Multicast Advanced Control Module
Rx Tx Gnd
LINK
RS-232 UPDATE
MULTICAST UHD
IP200UHD-RX
Rx Tx Gnd
CH SELECT
CH L / R DC IN
RS-232 UPDATE
MULTICAST UHD
24~56V
HDMI IN
AUDIO
IR IR
DC IN
LAN / PoE IN
IN OUT
24~56V
www.blustream.co.uk / www.blustream.com.au / www.blustream-us.com
IR IR
LINK
USB
CH SELECT
IP200UHD-TX CH
OUT IN
1 USB 2
HDMI OUT
IR
L / R
LAN / PoE LOOP OUT
To display device
USER MANUAL
Rx Tx Gnd
LINK
RS-232 UPDATE
MULTICAST UHD
IP200UHD-RX
DC IN
L / R
24~56V
