Web-GUI - Transmitters - Actions
Front Panel Power LED Flash (On / Off / On 90 Seconds) - will flash the power LED on the front panel of the
Transmitter to help identify the product following auto configuration. Options are: flash the power light continuously,
or flash the LED for 90 seconds before the LED goes back to being permanently lit. Please note: the front panel LED's
will automatically time-out after 90 seconds with the front panel display. Press one of the CH buttons to wake the unit.
Copy EDID - see next page for further information on 'Copy EDID'.
Serial Settings - turn on serial 'Guest Mode' and set the individual serial port settings for the device (i.e. Baud Rate,
Parity etc).
Preview - displays a pop-up window with live a screen grab of the source device connected to the Transmitter.
Reboot - reboots the Transmitter.
Replace - used to replace an offline Transmitter. Please note: the Transmitter to be replaced must be offline for this
feature to be utilised, and the new Transmitter must be a factory default unit with default IP address: 169.254.100.254.
Remove from Project - removes the Transmitter device from the current project.
Factory Reset - restores the Transmitter to its original default settings and sets the IP address to: 169.254.100.254.
contact support@blustream.co.uk / support@blustream.com.au / support@blustream-us.com
ACM - Multicast Advanced Control Module

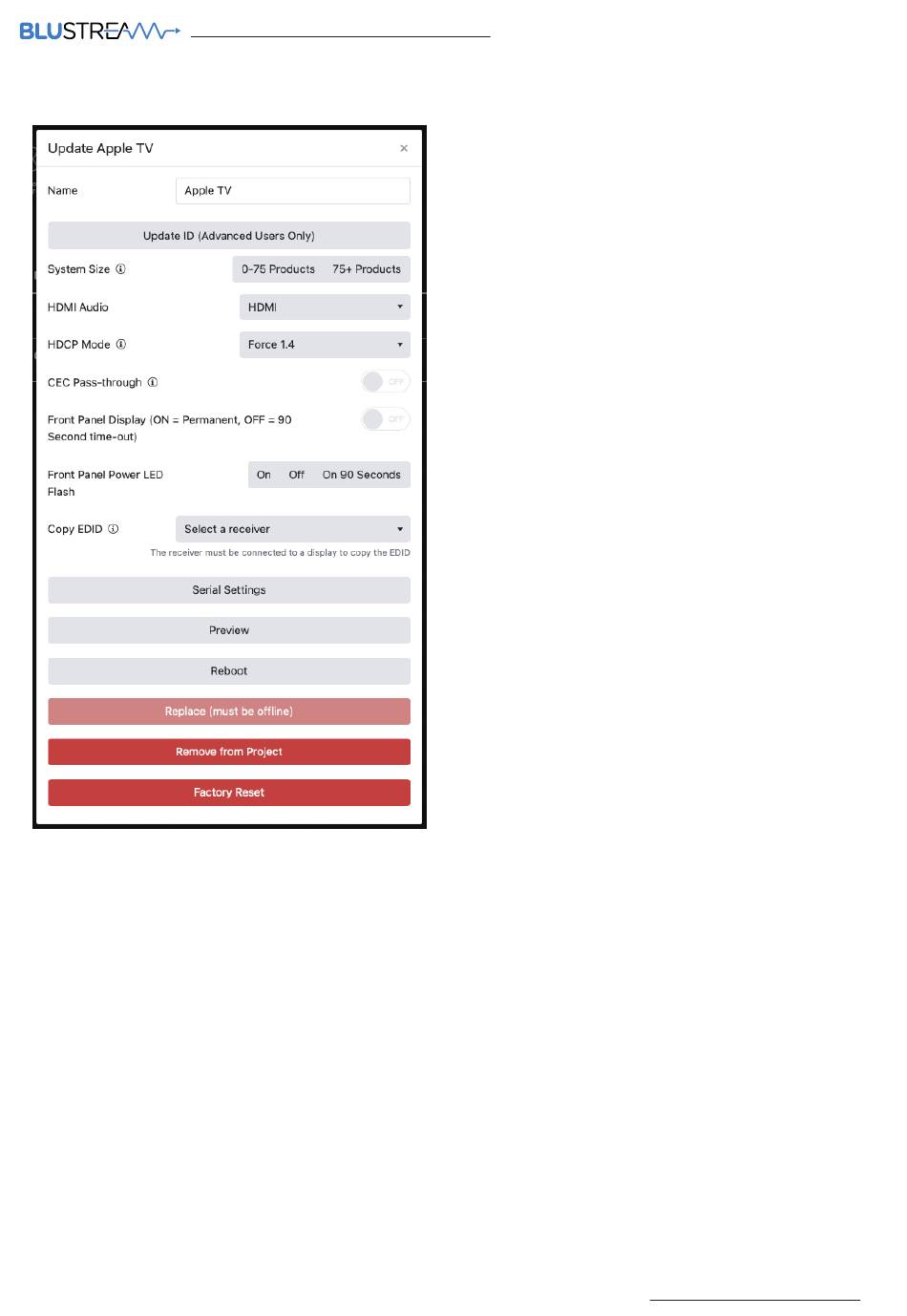

The 'Actions' button allows for advanced features of the
units to be accessed and configured.
Name - Transmitter names can be amended by entering
a name into the free-form text box. Please note: this
is limited to 16 characters in length, and some special
characters may not be supported.
Update ID - Advanced Users Only - the ID of a unit is
set (as default) to the same number as the last 3 digits
of the units IP address i.e. Transmitter number 3 is
assigned an IP address of 169.254.3.3 and will have an
ID of 3. Amending the ID of the unit is not recommended.
System Size - amend the system size per Transmitter
HDMI Audio - select between: Auto, HDMI, or Analogue
audio
HDCP Mode - select between:HDCP Bypass, Force 2.2, or
Force 1.4
CEC Pass-through (On / Off) - allows for CEC
(Consumer Electronic Command) to be sent through
the Multicast system to and from the source device
connected to the Transmitter. Please note: CEC must
be enabled on the Receiver unit also for the CEC
commands to be sent between. Default setting for this
feature is OFF.
Front Panel Display (On / Off) - enable / disable the
display on the front of the Transmitter. The front panel
display of the Multicast unit will automatically time-out
after 90 seconds, and turn off. Press any button on the
front of the Transmitter to wake the display when off.
