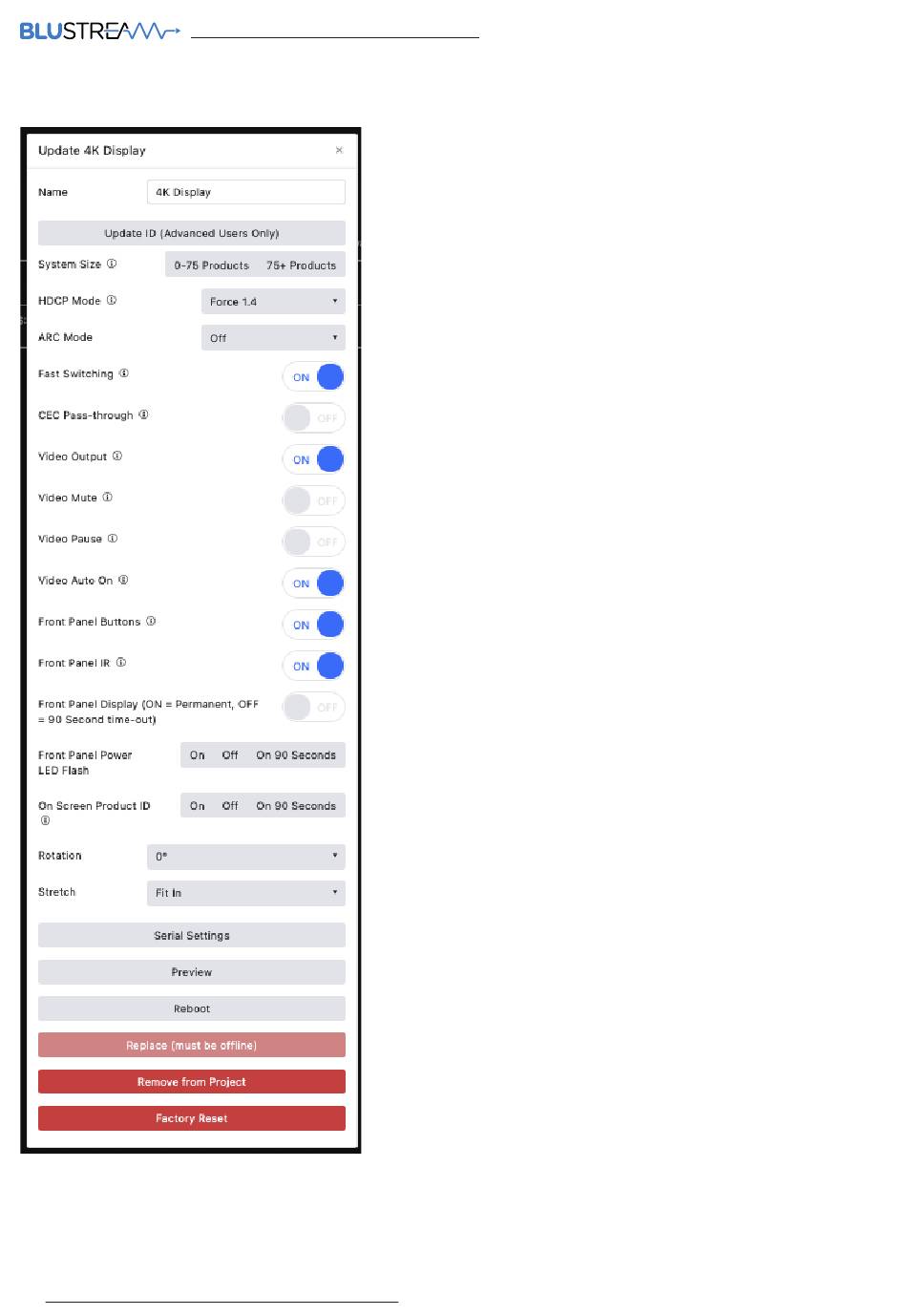

Web-GUI - Receivers - Actions
The 'Actions' button allows for advanced features of the Receiver to be
accessed and configured.
Name - can be amended by entering a name into the free-form text box.
Please note: this is limited to 16 characters in length, and some special
characters may not be supported.
Update ID - the ID is defaulted to the last 3 digits of the device IP address
i.e. Receiver 3 is assigned an IP address of 169.254.6.3. Update ID allows
the ID / IP of the unit to be amended.
System Size - amend the system size per Receiver.
HDCP Mode - select between:HDCP Bypass, Force 2.2, or Force 1.4.
ARC Mode - please see ARC explanation on next page.
Fast Switching - switches the video first, with the audio, IR, RS-232, USB
/ KVM all switched after. Please note: whilst the video feed may switch
faster, other parts of the feed (i.e. audio, IR etc) will take slightly longer to
catch up.
CEC Pass-through (ON / OFF) - allows for CEC (Consumer Electronic
Command) to be sent through the Multicast system. Please note: CEC
must also be enabled on the Transmitter.
Video Output (ON / OFF) - turns ON / OFF the HDMI video output -
requires new handshake when turning back ON.
Video Mute (ON / OFF) - mutes the HDMI output (creates a black screen),
maintaining the HDMI handshake.
Video Pause (ON / OFF) - pauses the HDMI video and embedded audio
at the frame when command issued. Turning OFF picks up the HDMI feed
from the point when command issued.
Video Auto On (ON / OFF) - turns off the video output when no media is
being distributed. Output will turn back on when media is started.
Front Panel Buttons (ON / OFF) - the Channel buttons on the front of
each Receiver can be disabled to stop unwanted switching.
Front Panel IR (ON / OFF) - enables or disables the Receiver from
accepting IR commands.
On Screen Product ID (On / Off / On 90 Seconds) - turn On / Off the On
Screen Product ID. Toggling the On Screen Product ID On shows the ID
(i.e. ID 001) of the Receiver overlayed on the display connected.
Front Panel Power LED Flash (On / Off / On 90 Seconds) - will flash the
power LED on the front panel of the Receiver to help identify the device.
Front Panel Display (On / 90 Seconds) - use this to enable / disable the
display on the front of the Receiver. The display of the device will time-
out after 90 seconds until woken.
Rotation - rotate the image by: 0, 90, 180 and 270 degrees.
Stretch - re-sizes the image to 'Stretch' to the aspect of the display, or
'Maintain Aspect Ratio' of the source device output.
Serial Settings / Preview / Reboot / Replace / Remove from Project /
Factory Reset - settings the same as expalined on the Transmitter page
previously.
