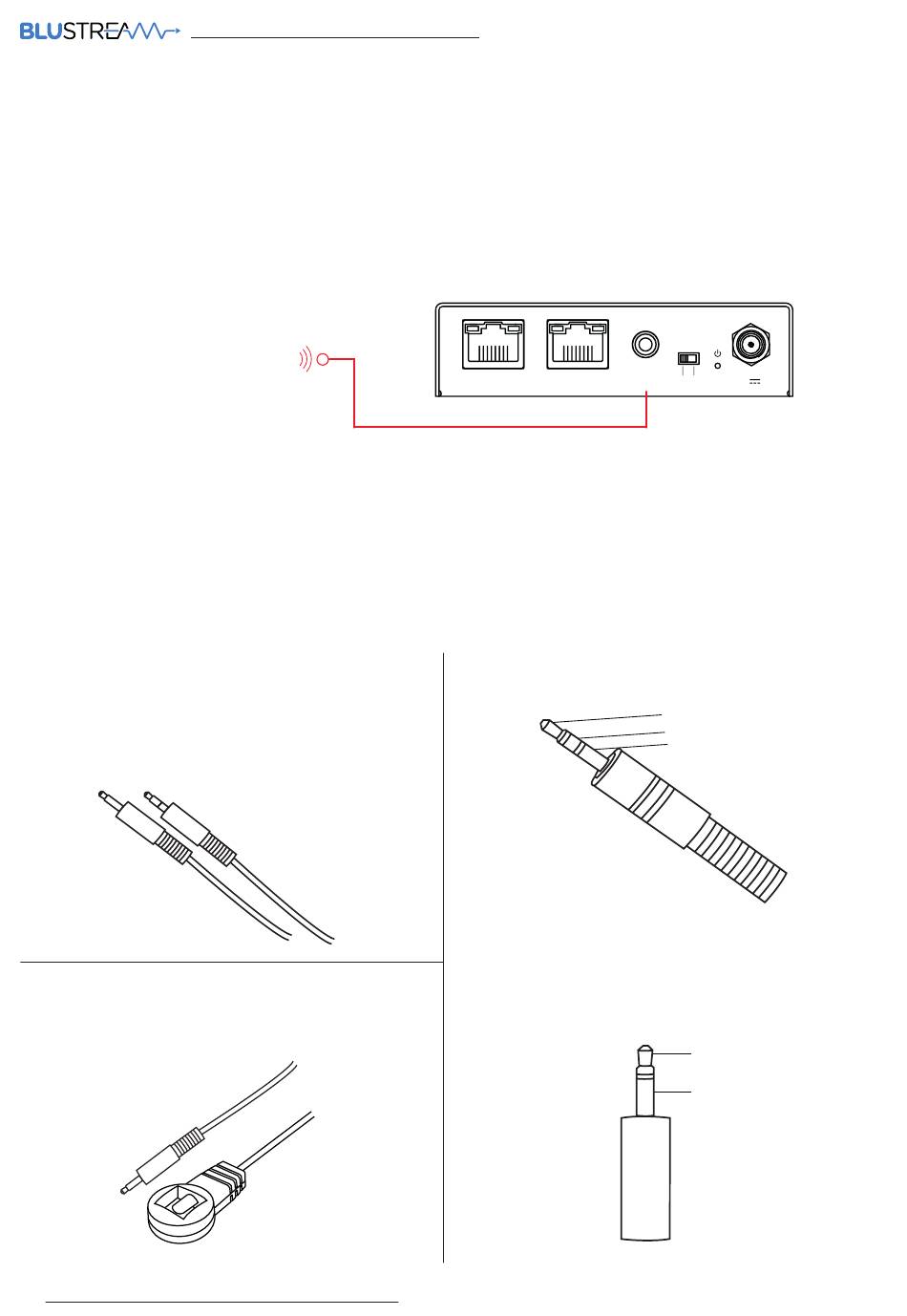

ACM Control Ports - IR Control
The Multicast system can be controlled using local IR control from a third party control system. Source selection is
the only feature available when using local IR control - advanced features of the ACM such as video wall mode, audio
embedding etc. can only be achieved using RS-232 or TCP/IP control.
Blustream have created 16x input & 16x output IR commands allowing source selection of up to 16x Multicast
Transmitters on up to 16x Multicast Receivers. For systems larger than 16x source devices, RS-232 or TCP/IP control
will be required.
Third Party Control System
(source selection only)
The ACM is compatible with both 5V and 12V IR equipment. When the ACM is being used to receive an IR input into the
IR CTRL port, the adjacent switch must be toggled correctly to suit the IR voltage line of the chosen control system
before connection.
Please note: supplied Blustream IR cabling is all 5V
3.5mm Stereo to Mono Cable - IR-CAB (included)
Blustream IR Control cable 3.5mm Mono to 3.5mm Stereo for
linking third party control solutions to Blustream products.
Compatible with 12V IR third party products.
Please note: Cable is directional as indicated
IR Receiver - IRR - stereo 3.5mm jack (optional)
Blustream 5V IR receiver to receive an IR signal and distribute
through Blustream products
06
ACM - Multicast Advanced Control Module
PoE LINK
Rx Tx Gnd
IR IR
CH Select
TX RX RS-232
VIDEO LAN (PoE) CONTROL LAN
Wiring pin - IR-CAB - stereo 3.5mm jack:
Wiring pin - IR-CAB - mono 3.5mm jack:
