BluStream Multicast ACM200 User Manual page 13

New Project Set-up Wizard - continued...

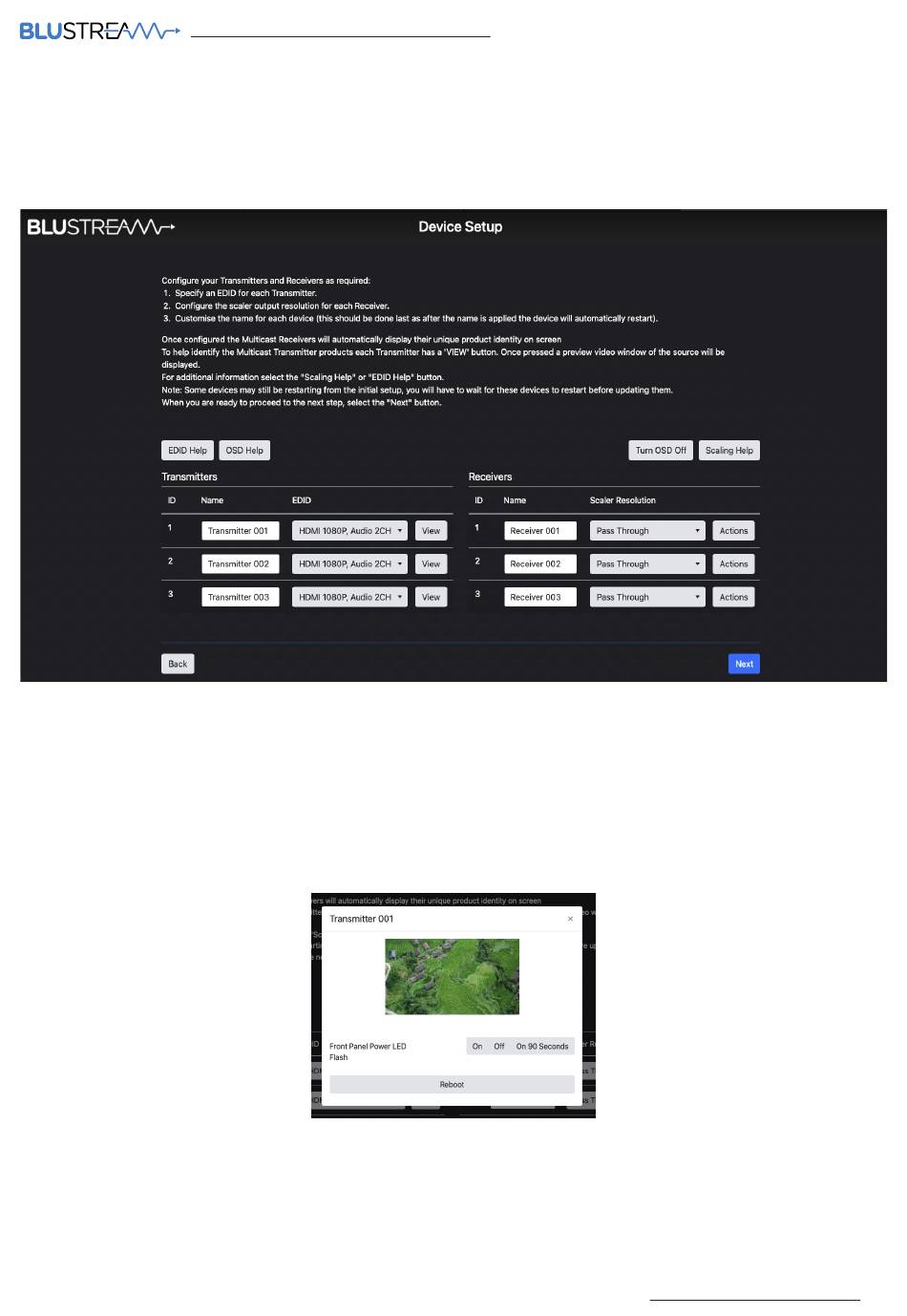

The Device Set-up page allows for Transmitters and Receivers to be named accordingly. EDID and Scaler settings
for the individual Transmitters or Receivers can be set as required. For help with EDID and Scaler settings, click the
relevant buttons marked 'EDID Help' or 'Scaling Help'.
Features of the Device Set-up page include:
1. Name of Devices - during configuration the Transmitters / Receivers are automatically assigned default names
i.e. Transmitter 001 etc. Transmitter / Receiver names can be amended by typing in the corresponding box.
2. EDID - fix the EDID value for each Transmitter (source). This is used to request specific video and audio resolutions
for the source device to output. Basic help with EDID selection can be obtained by clicking the button marked
'EDID Help'. Please note, the default EDID for Blustream equipment is: 1080p, 2ch audio.
3. View (transmitters only) - opens the following pop-up:
This pop-up shows an image preview of the media currently being accepted by the Transmitter unit for naming
purposes. The ability to also identify the unit by flashing the front panel Power LED on the unit, and the ability to
Reboot the unit will all assist with the indentification of the unit for naming purposes.
