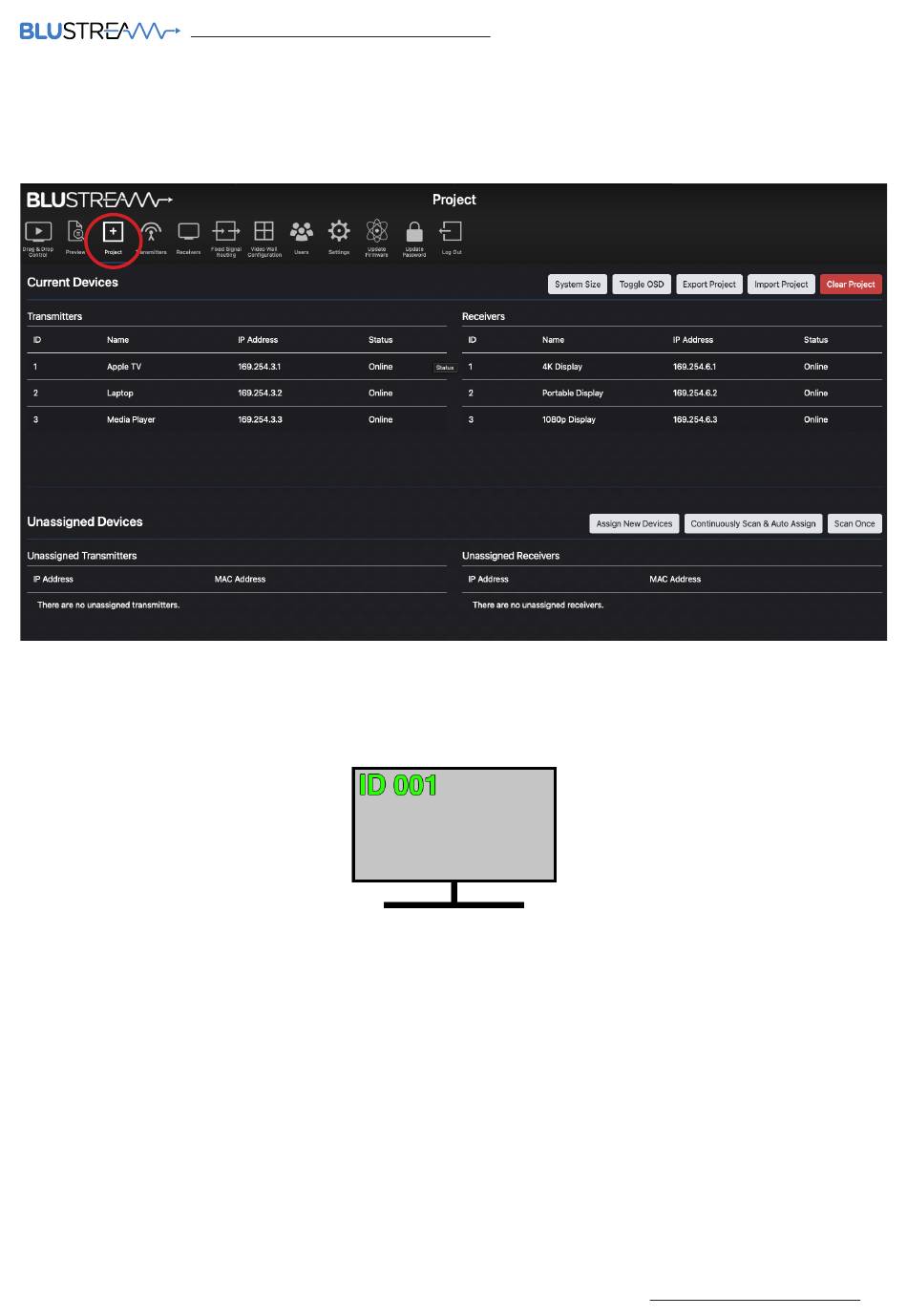

Web-GUI - Project Summary

Overview of the units that are currently set-up in the Multicast system, or for scanning the network for new devices to
assign to the system:
Options on this page include:
1. System Size: toggle between: 0-75 Products, and 75+ Products.
2. Toggle OSD: turn On / Off the OSD (On Screen Display). Toggling the OSD On shows the ID number (i.e. ID 001) of
the Multicast Receiver on each display as an overlay to the media being distributed. Toggling OSD Off removes the
OSD.
3. Export Project: create a save file (.json) for the current configuration of the system.
4. Import Project: import an already configured project into the current system. This is particularly helpful when
setting up a secondary system or expansion to a current system off-site where the two systems can be merged into
one.
5. Clear Project: clears the current project.
6. Assign New Devices: assign devices found in the Unassigned Devices section (at the bottom of this page) to the
current system
7. Continuously Scan & Auto Assign: continuously scan the network and auto assign new Multicast devices to the
next available ID and IP address as connected. If only connecting ONE new unit, use the 'Scan Once' option - the
ACM will continue to scan the network for new Multicast devices until found, or select this button again to stop the
scan.
8. Scan Once: scan the network once for any new Multicast devices connected, and then be presented with a pop
up to either manually assign the new device, or auto assign a new unit to the next available ID and IP address as
connected.
