Web-GUI - Fixed Signal Routing

The ACM is capable of advanced independent routing of the following signals via the Multicast system:
• Video
Audio (please note: ARC is only available on IP300UHD and IP350UHD systems)
•
• Infrared (IR)
• RS-232
• USB / KVM
• CEC (Consumer Electronic Command)
This allows each signal to be fixed from one Multicast product to another and not be affected by standard video
switching. This can be useful for IR, CEC or RS-232 control of products in the field using the Multicast system to extend
control commands from a third party control solution, or a manufacturers IR remote control.
Please note: with the exception of IR and RS-232, routing can only be fixed from a Receiver to a Transmitter product.
Although routing can only be set up one way, the communication is bi-directional between the two products.
By default, the routing of: Video, Audio, IR, Serial, USB and CEC will automatically
follow the Transmitter selection of the Receiver unit.

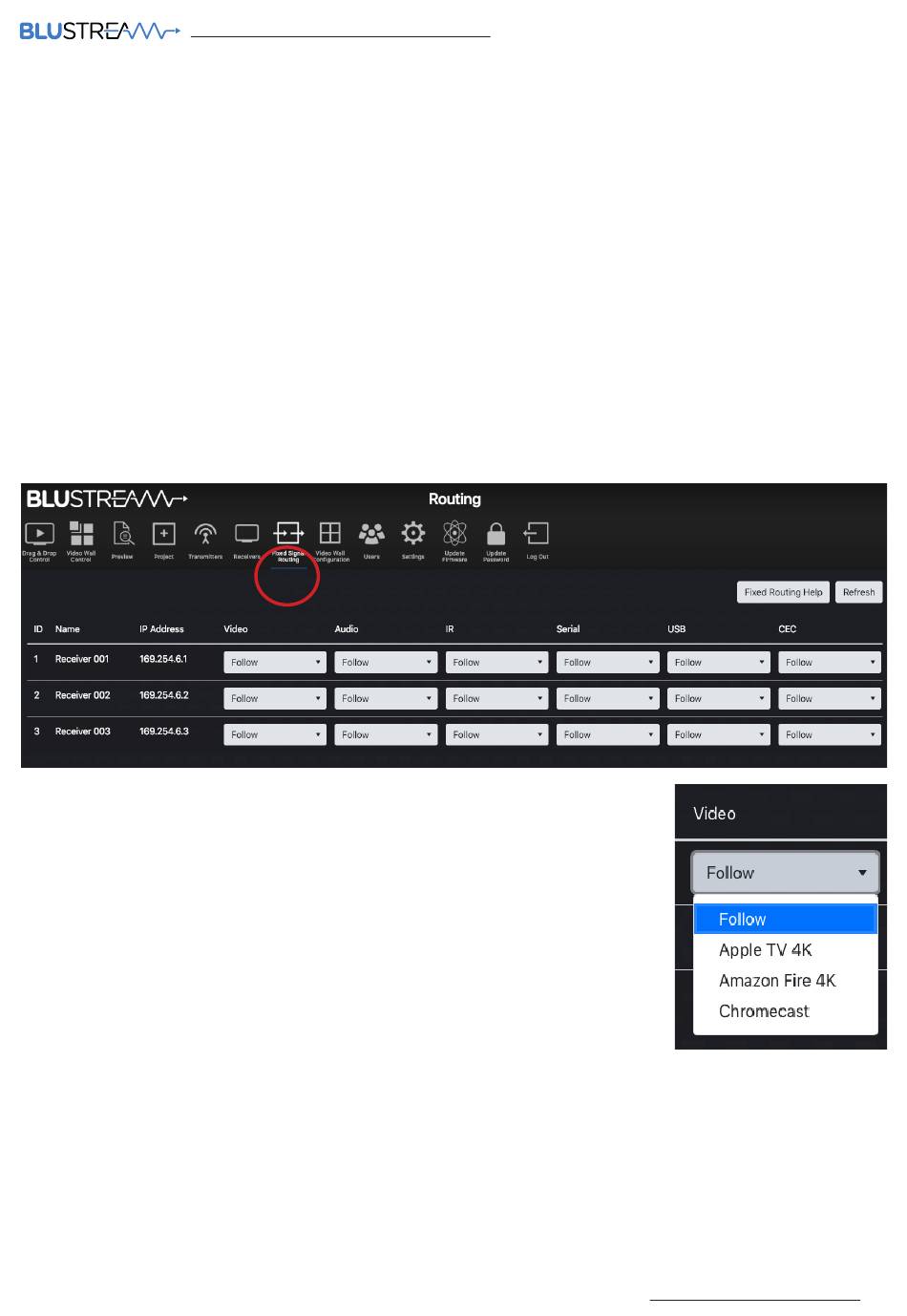

To select a fixed route, use the drop down box for each of the individual signals /
Receivers to fix a route.
Once an ACM has been added into a Multicast system, the IR switching control abilities
(not IR pass-through) and the front panel buttons of the Multicast Receivers are
enabled by default. This is disabled from the Actions function contained within the
Receiver summary page (see previous page).
Routing can be cleared by selecting 'Follow' at any point from the web-GUI. More
information on Fixed Routing can be found by clicking 'Fixed Routing Help'.
For advanced routing commands for Video, Audio, IR, RS-232, USB and CEC when using with a 3rd party control
system, please refer to the separate API Document (available to download from the Blustream website).
