Web-GUI - Video Wall Configuration

Blustream Multicast Receivers can be configured to be part of a Video Wall array within the ACM. Any Multicast system
can contain up to 9x Video Wall arrays of differing shapes and sizes. Ranging from 1x2 up to 9x9.

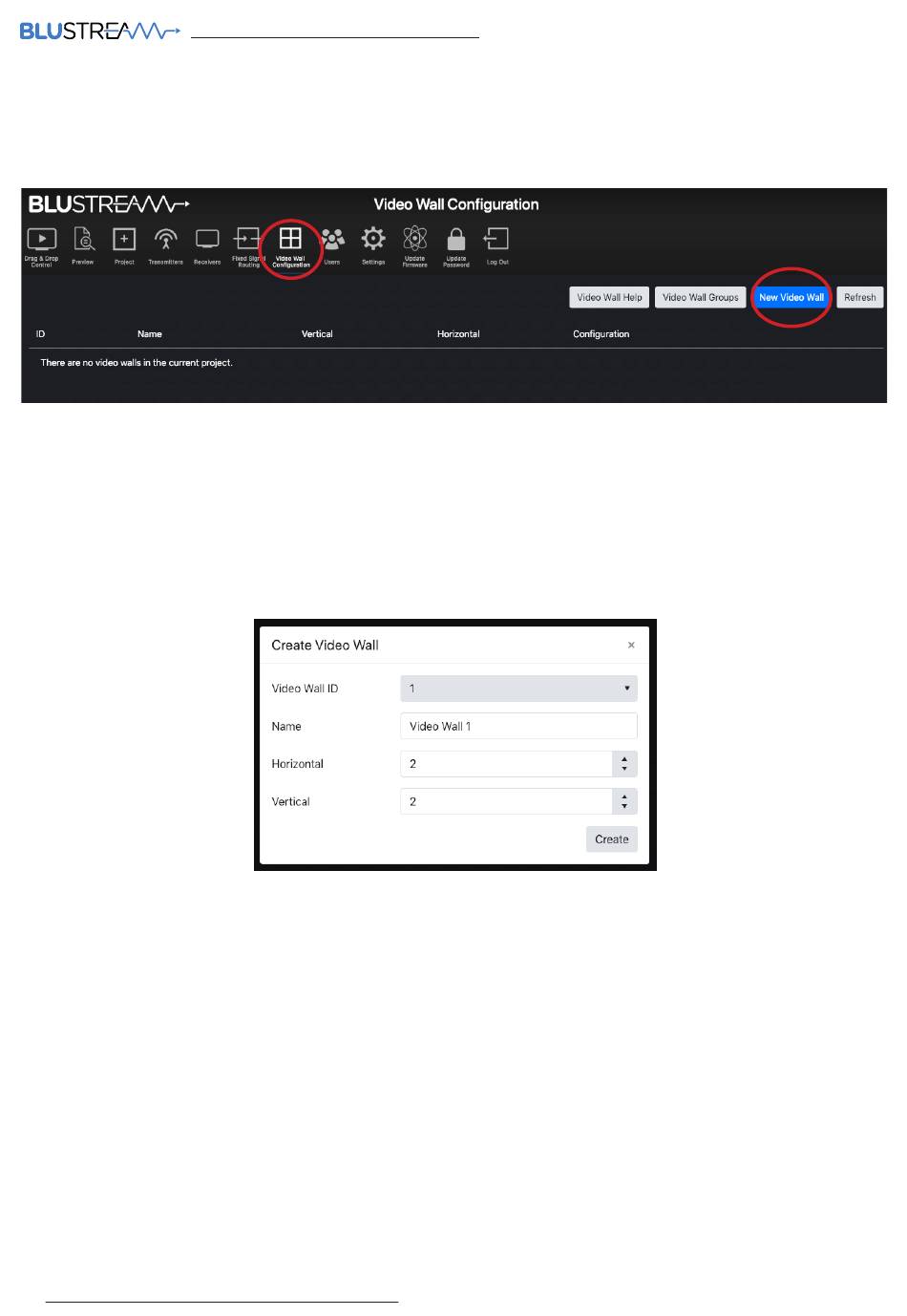

To configure a new Video Wall array, navigate to the Video Wall Configuration menu and click the button labelled
'New Video Wall' as marked at the top of the screen. Help with creating a Video Wall array can be found by clicking the
button marked 'Video Wall Help'.
Please note: the Multicast Receivers that will be used for the Video Wall should have been configured as individual
Receivers before proceeding past this point. It is good practice to have already named the Multicast Receivers for ease
of configuration i.e. "Video Wall 1 - Top Left".
Enter the relevant information into the pop-up window to name and select the number of panels both horizontally
and vertically within the Video Wall array. Once the correct information has been inserted onto the screen, select
'Create' to create the Video Wall array template within the ACM.
