Web-GUI - Video Wall Configuration - Group Configurator
For example: a 3x3 Video Wall array can have multiple configurations / presets:
• For displaying 9x different source media streams - so that all screens work independently with each individual
screen showing a single source - not grouped (leave all dropdowns as 'Single').
• As a 3x3 Video Wall - displaying one source media stream across all 9 screens (all screens need to be selected as
'Group A').
• For displaying a 2x2 Video Wall image within the overall 3x3 Video Wall array. This can have 4x different options:
- With the 2x2 in the top left of the 3x3, with 5x individual screens to the right and bottom (select the 2x2 in the
top left as Group A with other screens set as 'Single') - see example below...
- With the 2x2 in the top right of the 3x3, with 5x individual screens to the left and bottom (select the 2x2 in the
top right as Group A with other screens set as 'Single').
- With the 2x2 in the bottom left of the 3x3, with 5x individual screens to the right and top (select the 2x2 in the
bottom left as Group A with other screens set as 'Single').
- With the 2x2 in the bottom right of the 3x3, with 5x individual screens to the left and top (select the 2x2 in the
bottom right as Group A with other screens set as 'Single').
With the above example, there would be the need to create 6 different configurations for the Video Wall array,
allocating the grouped screens to a Group using the selection dropdown. The Configurations / Groups can be renamed
as required using the 'Update Name' option in the Group Configuration screen.

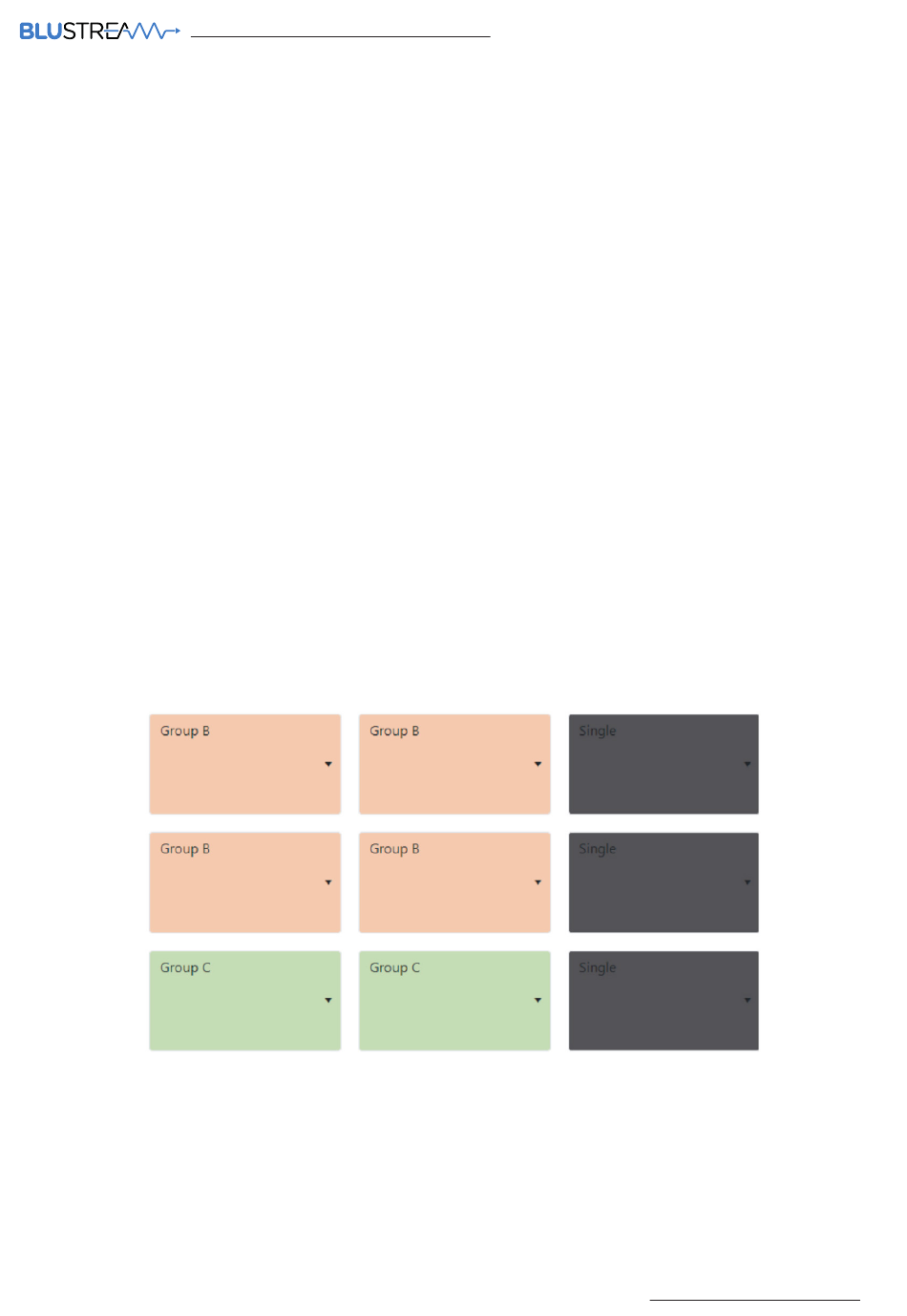

Additional configurations can be created with screens assigned as groups. This allows multiple video sources to be
viewed at the same time and will appear as a Video Wall within a Video Wall. The below example has two different
sized Video Walls inside a 3x3 array. This configuration contains 2 groups:
