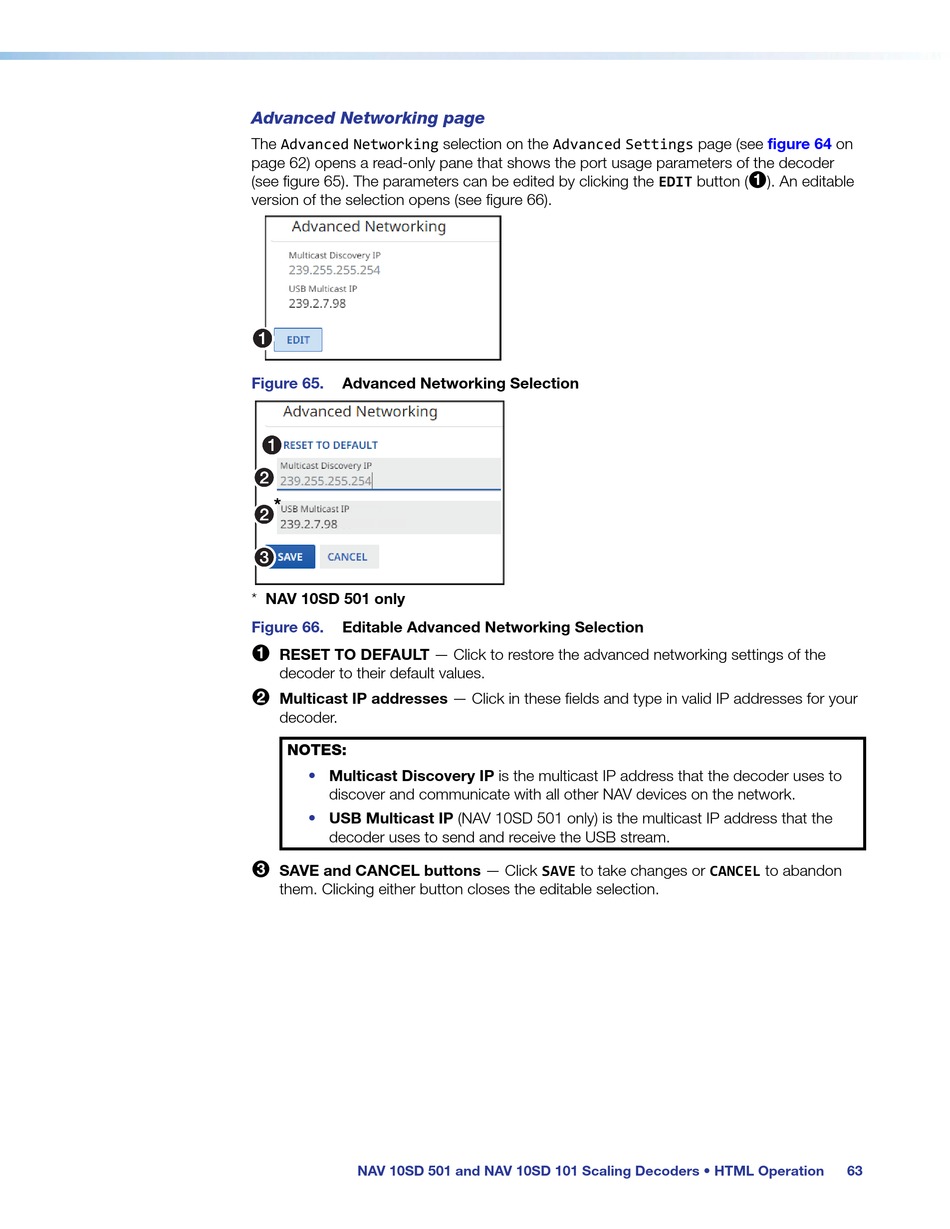

Advanced Networking page
The Advanced Networking selection on the Advanced Settings page (see
page 62) opens a read-only pane that shows the port usage parameters of the decoder
(see figure 65). The parameters can be edited by clicking the EDIT button (
version of the selection opens (see figure 66).
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Figure 65. Advanced Networking Selection
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
*
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
* NAV 10SD 501 only
Figure 66. Editable Advanced Networking Selection
1 RESET TO DEFAULT — Click to restore the advanced networking settings of the
decoder to their default values.
2
Multicast IP addresses — Click in these fields and type in valid IP addresses for your
decoder.
NOTES:
• Multicast Discovery IP is the multicast IP address that the decoder uses to
discover and communicate with all other NAV devices on the network.
• USB Multicast IP (NAV 10SD 501 only) is the multicast IP address that the
decoder uses to send and receive the USB stream.
3
SAVE and CANCEL buttons — Click SAVE to take changes or CANCEL to abandon
them. Clicking either button closes the editable selection.
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
