Typical Input Display
Typical Custom Display
* NAV 10SD 501 only

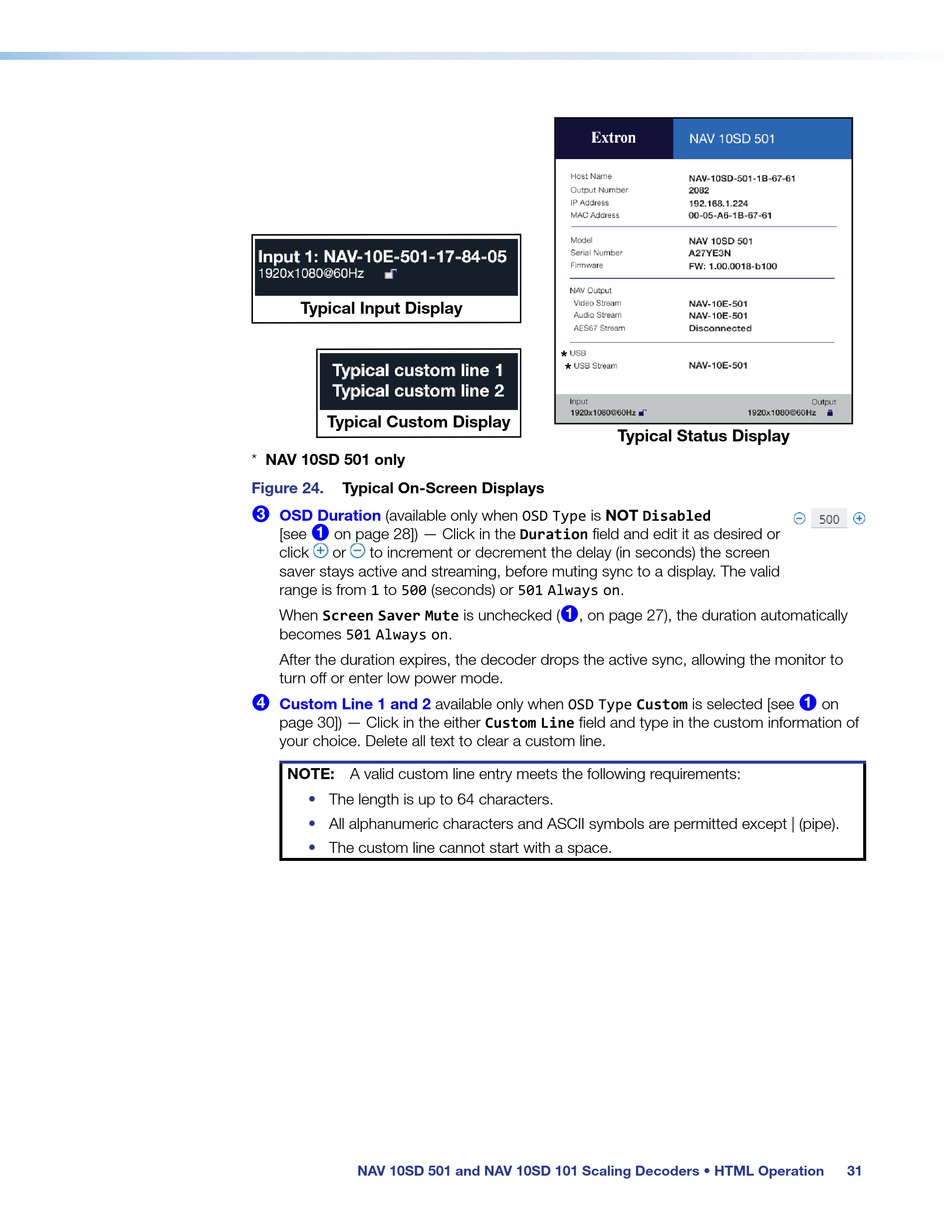

Figure 24. Typical On-Screen Displays
3 OSD Duration (available only when OSD Type is NOT Disabled
[see 1 on page 28]) — Click in the Duration field and edit it as desired or
click or to increment or decrement the delay (in seconds) the screen
saver stays active and streaming, before muting sync to a display. The valid
range is from 1 to 500 (seconds) or 501 Always on.
When Screen Saver Mute is unchecked (
becomes 501 Always on.
After the duration expires, the decoder drops the active sync, allowing the monitor to
turn off or enter low power mode.
4 Custom Line 1 and 2
page 30]) — Click in the either Custom Line field and type in the custom information of
your choice. Delete all text to clear a custom line.
NOTE: A valid custom line entry meets the following requirements:
• The length is up to 64 characters.
• All alphanumeric characters and ASCII symbols are permitted except | (pipe).
• The custom line cannot start with a space.
