NOTE: Your tab display may differ from
•
The AES67 tab is present only when an Extron AES67-capable device, such as a
DMP 128 ProDSP Digital Matrix Processor, is tied into the NAV system. See the
user guide for the applicable device to configure that device and also the Dante
documentation.
The USB tab and USB Tie in the Current Output pane are present for
•
NAV 10SD 501 only.
Current Output pane
The Current Output pane displays the output number and name of the decoder.
Available Inputs pane
The Available Inputs pane displays the input number, audio mode, model, and IP
address of all encoders available for tying to this decoder. To tie an encoder to this decoder,
click the desired encoder (
Available Inputs
). A video and audio tie is indicated in amber, audio only in red, and video only in
Video
green. Click in an existing tie to untie it.
input 3322 tied to the decoder.
NOTES:
•
Also on this page, you can open an HTML page of a connected encoder. This is a
direct page to the decoder, rather than a proxied endpoint as through a NAVigator.
Click the IP Address link in the desired input (
tab in the browser that is connected to the selected encoder. The proxied encoder
HTML page behaves as described in the guide for the encoder (see the applicable
encoder guide available at www.extron.com).
The BREAK TIES (
•
C
•

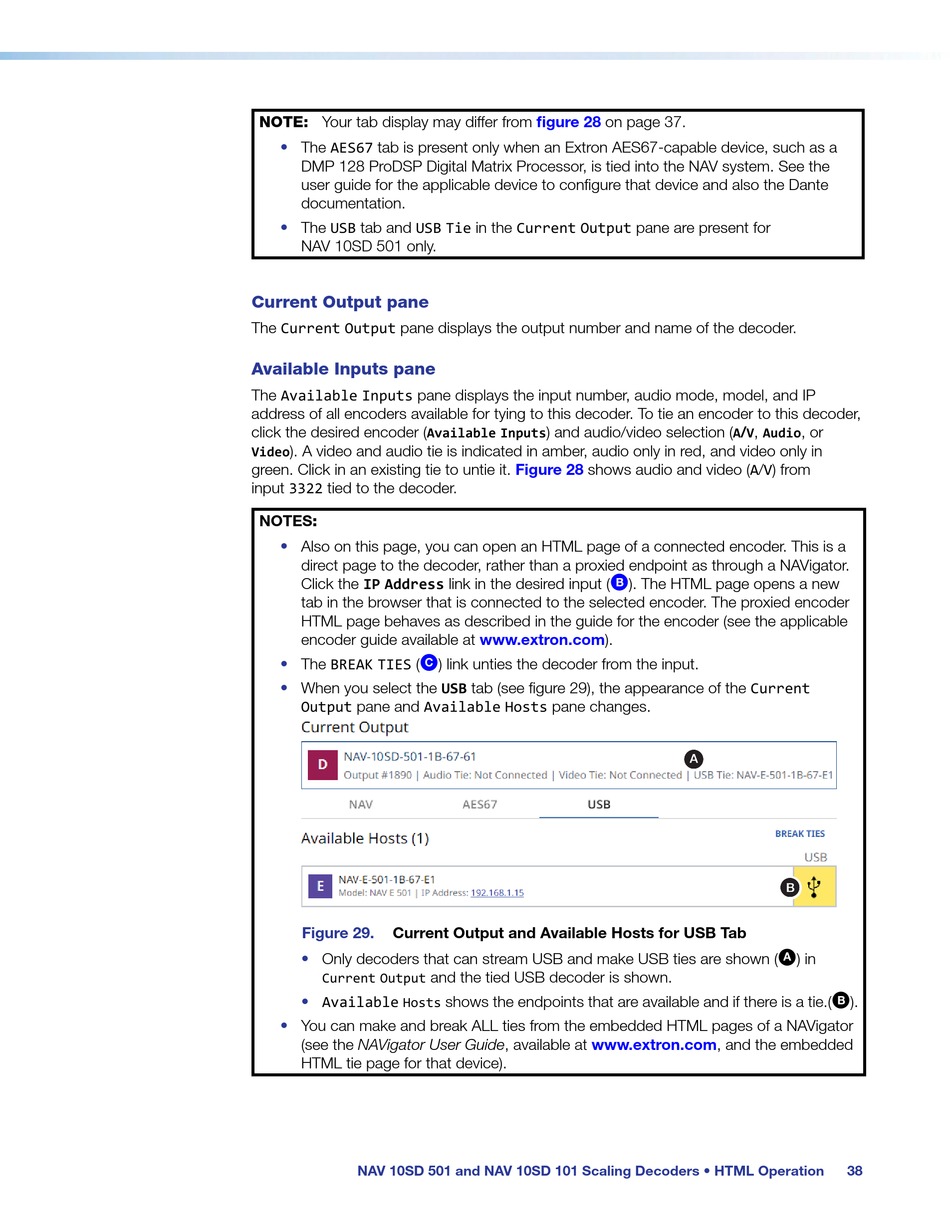

When you select the USB tab (see figure 29), the appearance of the Current
Output pane and Available Hosts pane changes.
Figure 29.
Current Output and Available Hosts for USB Tab
•
Only decoders that can stream USB and make USB ties are shown (
and the tied USB decoder is shown.
Current Output
Available
•
Hosts
•
You can make and break ALL ties from the embedded HTML pages of a NAVigator
(see the NAVigator User Guide, available at www.extron.com, and the embedded
HTML tie page for that device).
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
figure 28
on page 37.
) and audio/video selection (
Figure 28
shows audio and video (A/V) from
B
) link unties the decoder from the input.
shows the endpoints that are available and if there is a tie.(
/
,
, or
A
V
Audio
). The HTML page opens a new
A A A A
A A A A A A A A
A A A A A A
B B B B
B B B B B B B B
B B B B B B
A
) in
B
).
38
