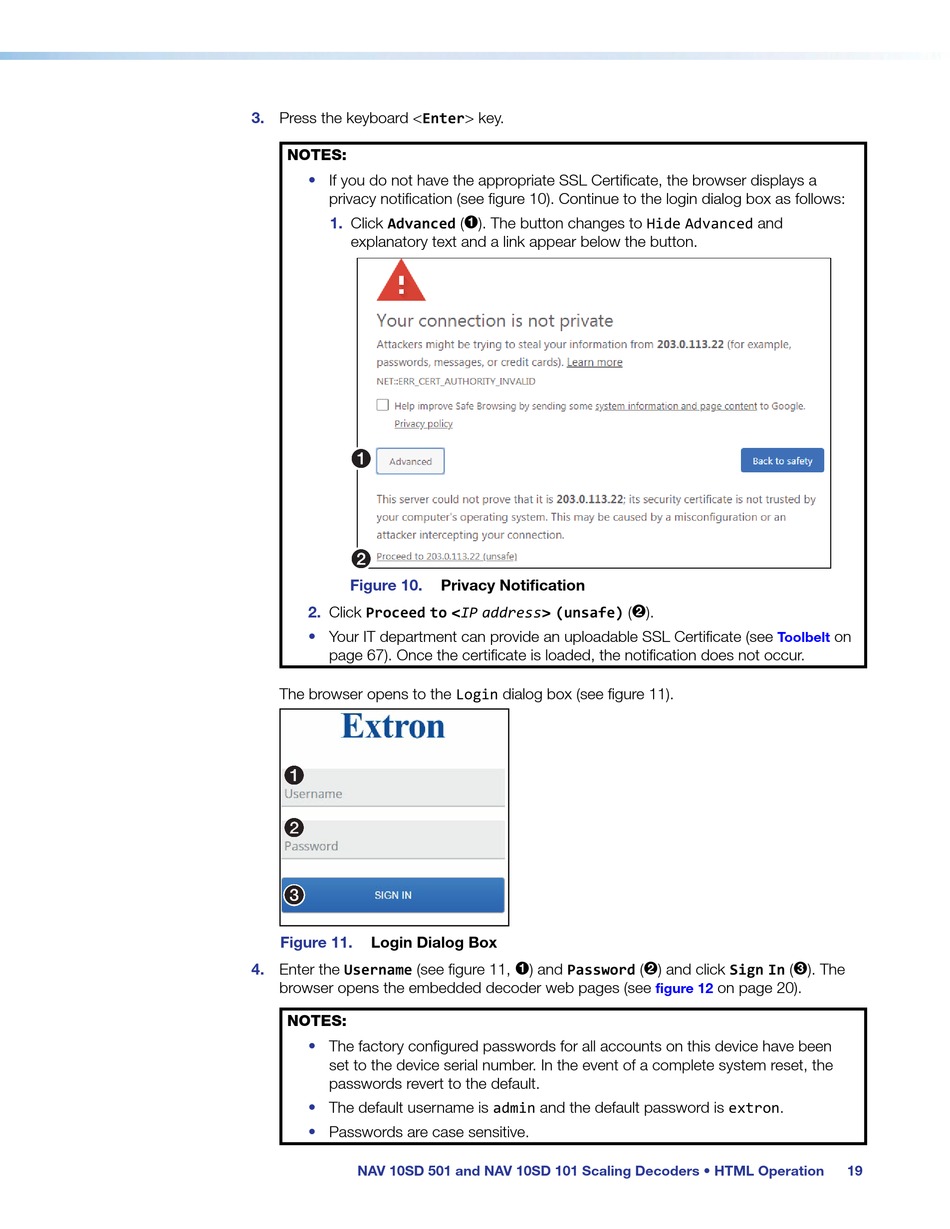

Extron electronics NAV 10SD 101 User Manual page 27

3. Press the keyboard <Enter> key.
NOTES:
• If you do not have the appropriate SSL Certificate, the browser displays a
privacy notification (see figure 10). Continue to the login dialog box as follows:
1. Click Advanced (1). The button changes to Hide Advanced and
explanatory text and a link appear below the button.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 10.
2. Click Proceed to <IP address> (unsafe) (2).
• Your IT department can provide an uploadable SSL Certificate (see
page 67). Once the certificate is loaded, the notification does not occur.
The browser opens to the Login dialog box (see figure 11).
1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3
Figure 11. Login Dialog Box
4.
Enter the Username (see figure 11, 1) and Password (2) and click Sign In (3). The
browser opens the embedded decoder web pages (see
NOTES:
• The factory configured passwords for all accounts on this device have been
set to the device serial number. In the event of a complete system reset, the
passwords revert to the default.
The default username is admin and the default password is extron.
•
• Passwords are case sensitive.
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
Privacy Notification
on
Toolbelt
on page 20).
figure 12
19
