3 Device Class Filtering
drop-down list to select among USB 2.0, HID + CAC, and HID Only.
NOTE: USB Device Class filtering limits the functionality of the
USB port.
• USB 2.0 - No restrictions, allows all USB devices to function.
• HID + CAC — Allows only devices such as a keyboard,
mouse, and a card reader (common access card) to
function.
• HID Only - Allows only devices such as a keyboard and
mouse to function.
4
Peripheral Emulation
mode, emulates a keyboard and mouse to the connected host computer, allowing the
computer to boot up if it requires a USB keyboard and mouse to be present.
5 SAVE and CANCEL buttons
abandon them. Clicking either button closes the editable pane.

Networking page

On the Networking Settings page (see figure 59), click the down arrow (
drop-down menu (see Network Connection page

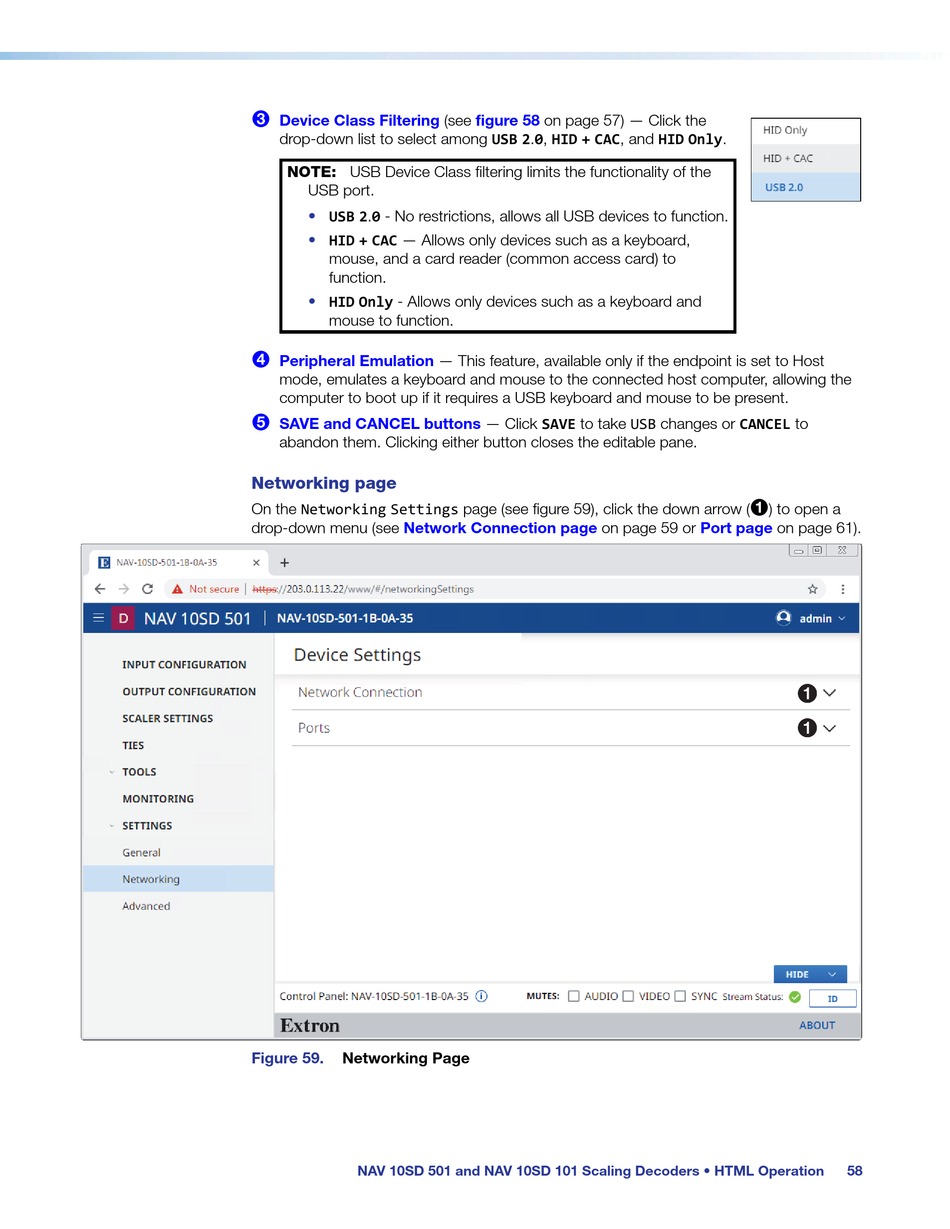

Figure 59. Networking Page
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
(see figure 58 on page 57) — Click the
— This feature, available only if the endpoint is set to Host
— Click SAVE to take USB changes or CANCEL to
on page 59 or
1 ) to open a
Port page on page 61).
