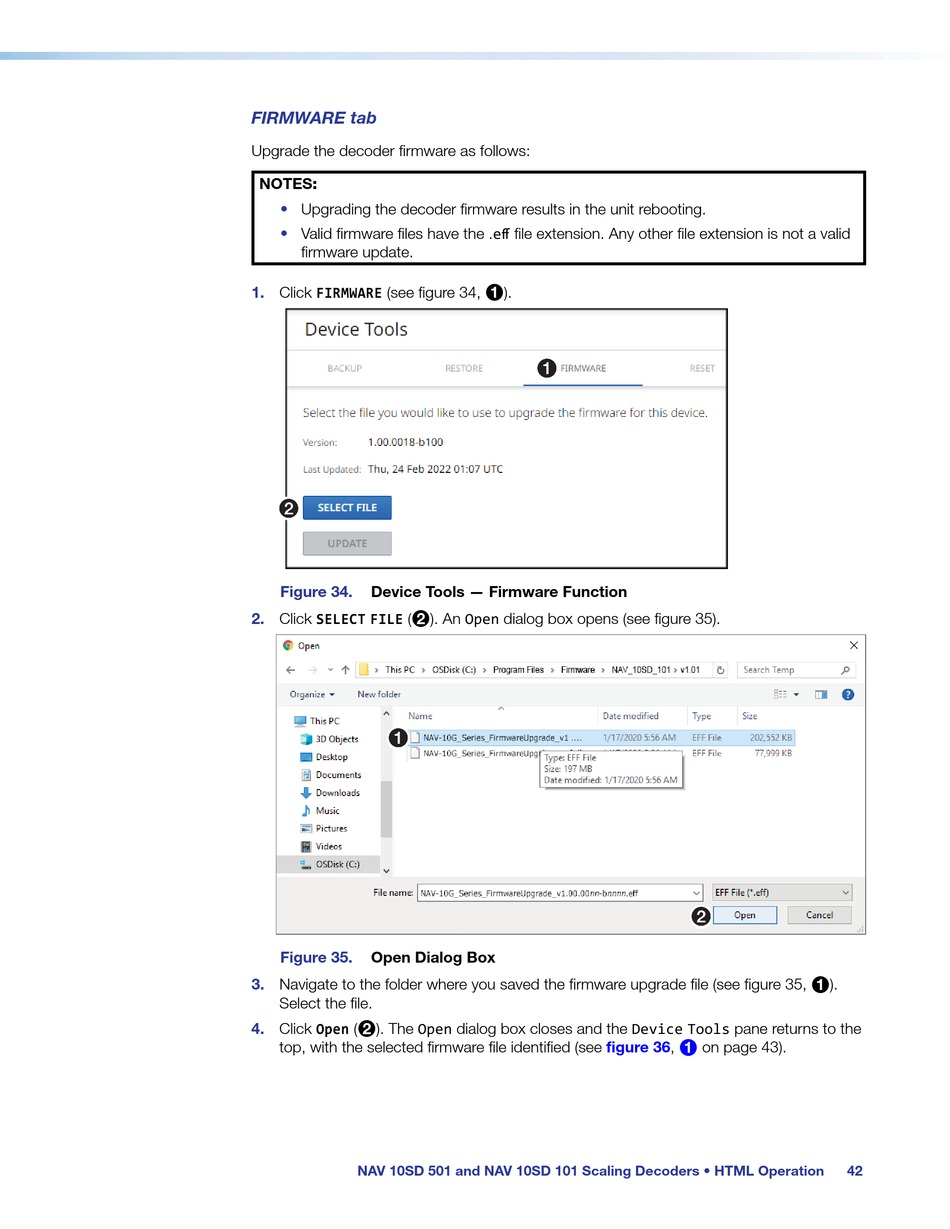

FIRMWARE tab
Upgrade the decoder firmware as follows:
NOTES:
• Upgrading the decoder firmware results in the unit rebooting.
• Valid firmware files have the .eff file extension. Any other file extension is not a valid
firmware update.
1. Click FIRMWARE (see figure 34,
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 34. Device Tools — Firmware Function
). An Open dialog box opens (see figure 35).
2. Click SELECT FILE (
2
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Figure 35. Open Dialog Box
3. Navigate to the folder where you saved the firmware upgrade file (see figure 35,
Select the file.
). The Open dialog box closes and the Device Tools pane returns to the
4. Click Open (
2
top, with the selected firmware file identified (see
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
).
1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
figure 36,
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
).
1
on page 43).
1
42
