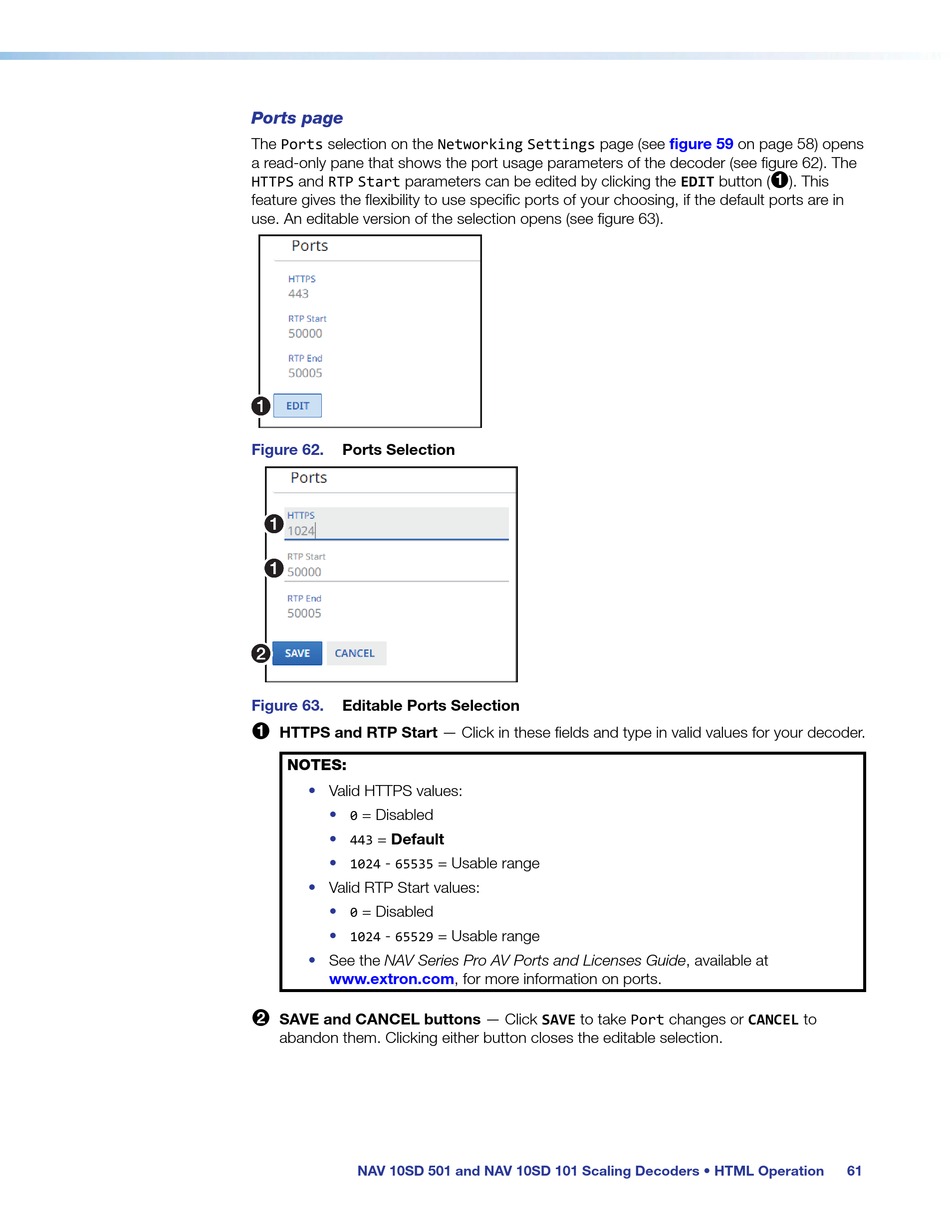

Ports page
The Ports selection on the Networking Settings page (see
a read-only pane that shows the port usage parameters of the decoder (see figure 62). The
HTTPS and RTP Start parameters can be edited by clicking the EDIT button (
feature gives the flexibility to use specific ports of your choosing, if the default ports are in
use. An editable version of the selection opens (see figure 63).
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Figure 62. Ports Selection
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 63. Editable Ports Selection
1 HTTPS and RTP Start — Click in these fields and type in valid values for your decoder.
NOTES:
• Valid HTTPS values:
• = Disabled
0
• = Default
443
•
1024 - 65535
• Valid RTP Start values:
• = Disabled
0
• -
1024 65529
• See the NAV Series Pro AV Ports and Licenses Guide, available at
www.extron.com, for more information on ports.
2 SAVE and CANCEL buttons — Click SAVE to take Port changes or CANCEL to
abandon them. Clicking either button closes the editable selection.
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
= Usable range
= Usable range
figure 59 on page 58) opens
1 ). This
