Extron electronics NAV 10SD 101 User Manual page 61

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

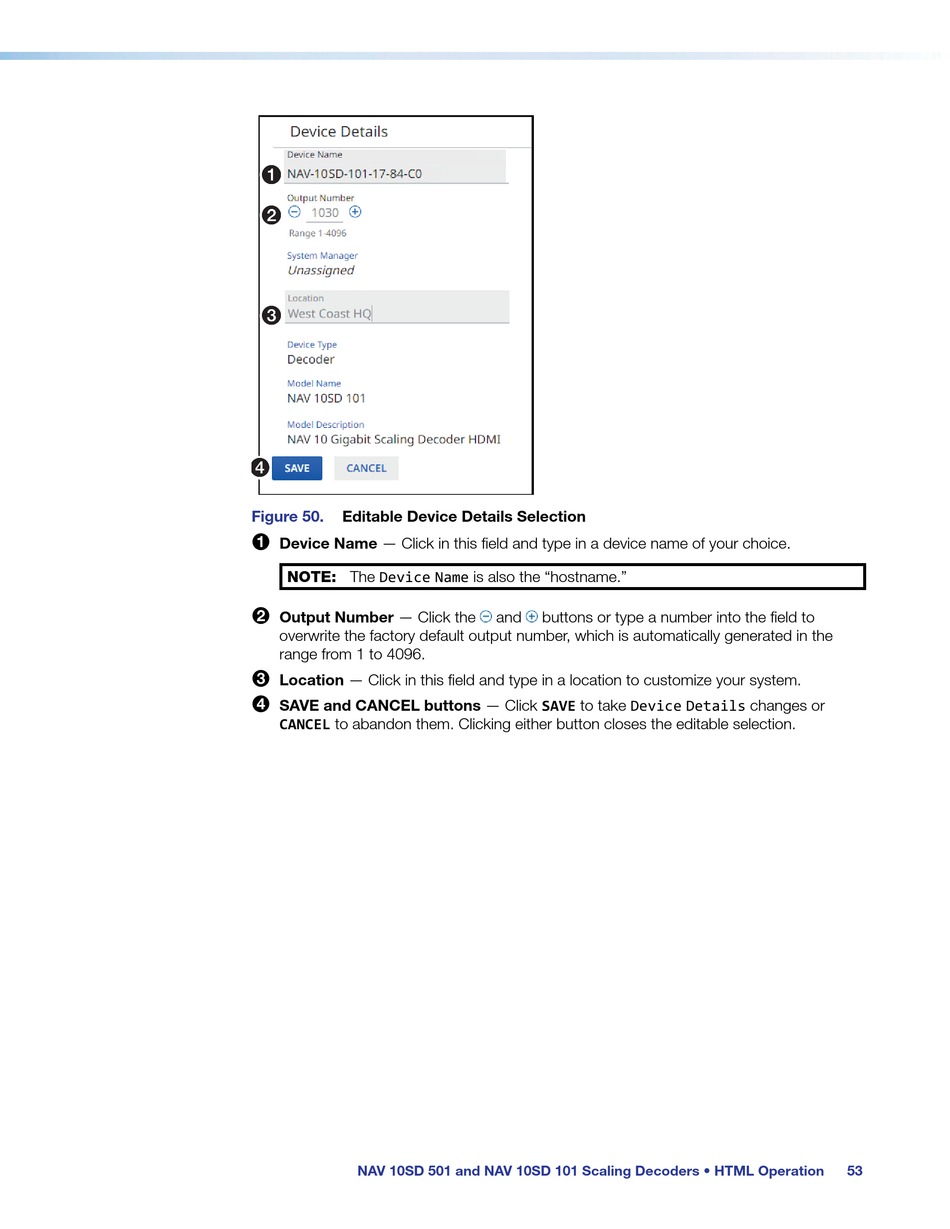

Figure 50. Editable Device Details Selection
1
Device Name — Click in this field and type in a device name of your choice.
NOTE: The Device Name is also the "hostname."
2 Output Number — Click the
overwrite the factory default output number, which is automatically generated in the
range from 1 to 4096.
3 Location — Click in this field and type in a location to customize your system.
4 SAVE and CANCEL buttons — Click SAVE to take Device Details changes or
CANCEL to abandon them. Clicking either button closes the editable selection.
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
and buttons or type a number into the field to
53
