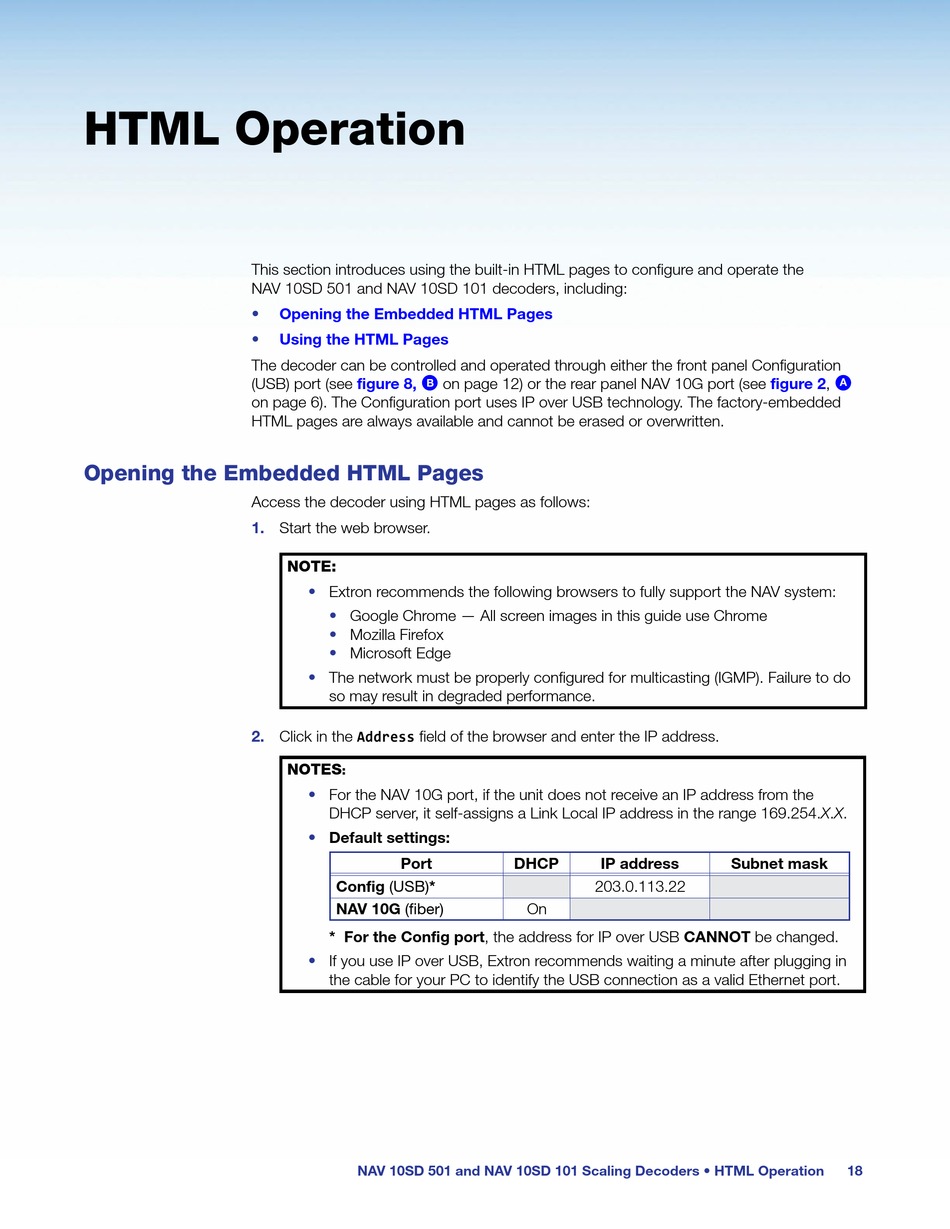

HTML Operation

This section introduces using the built-in HTML pages to configure and operate the
NAV 10SD 501 and NAV 10SD 101 decoders, including:
•
•
The decoder can be controlled and operated through either the front panel Configuration
(USB) port (see
on page 6). The Configuration port uses IP over USB technology. The factory-embedded
HTML pages are always available and cannot be erased or overwritten.

Opening the Embedded HTML Pages

Access the decoder using HTML pages as follows:
1.
2.
Opening the Embedded HTML Pages
Using the HTML Pages
figure 8, on page 12) or the rear panel NAV 10G port (see
B
Start the web browser.
NOTE:
• Extron recommends the following browsers to fully support the NAV system:
• Google Chrome — All screen images in this guide use Chrome
• Mozilla Firefox
• Microsoft Edge
•
The network must be properly configured for multicasting (IGMP). Failure to do
so may result in degraded performance.
Click in the Address field of the browser and enter the IP address.
NOTES
:
• For the NAV 10G port, if the unit does not receive an IP address from the
DHCP server, it self-assigns a Link Local IP address in the range 169.254.X.X.
• Default settings:
Port
Config (USB)*
NAV 10G (fiber)
* For the Config port, the address for IP over USB CANNOT be changed.
• If you use IP over USB, Extron recommends waiting a minute after plugging in
the cable for your PC to identify the USB connection as a valid Ethernet port.
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • HTML Operation
DHCP IP address
203.0.113.22
On
figure 2,
A
Subnet mask
