Polycom ViewStation EX User Manual page 74

Chapter 2
ViewStation User Guide

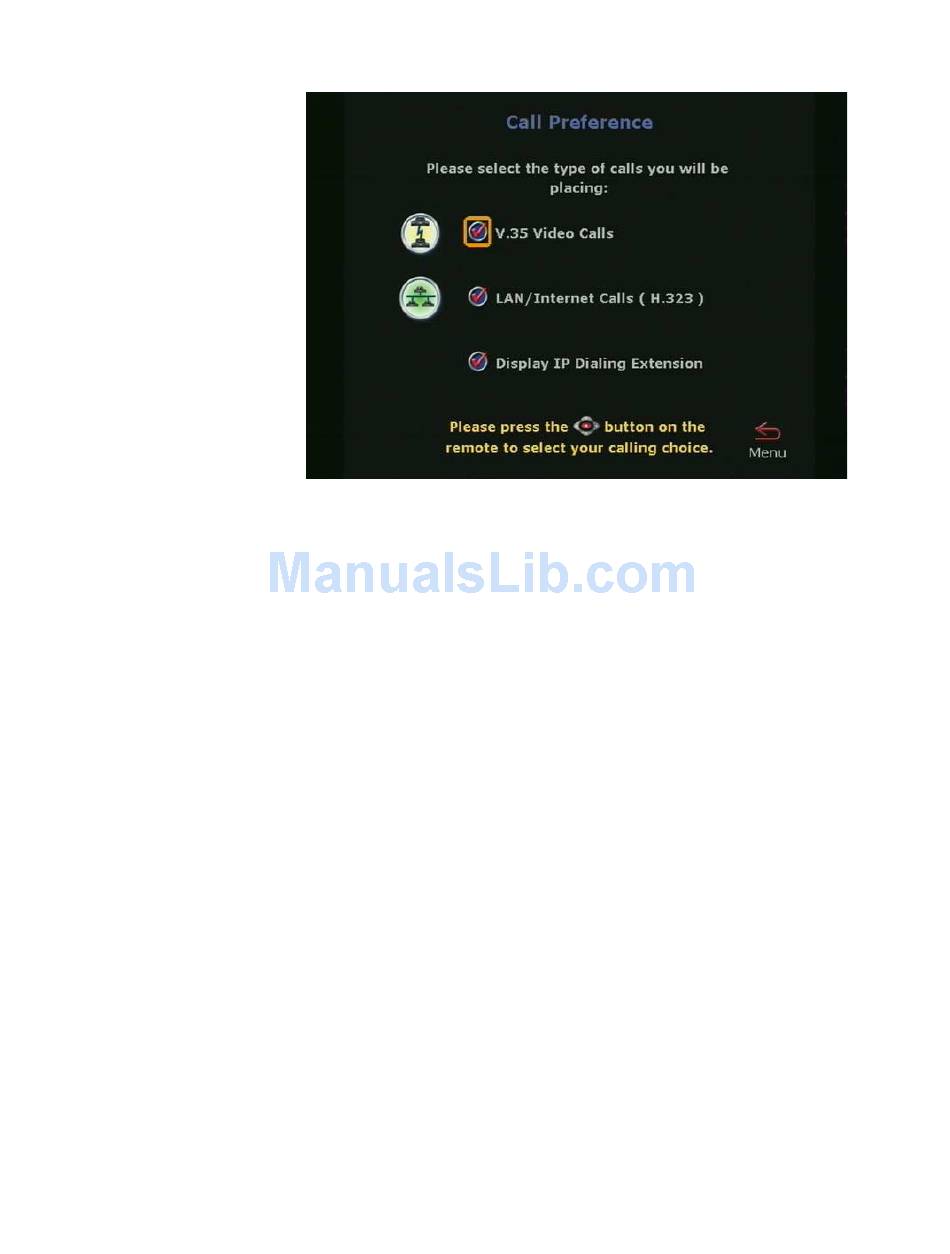

Figure 2-27. V.35 Call Preference Screen
LAN/Intranet Calls (H.323)
The LAN/Intranet Calls option shown in the second check box in
Figure 2-27 determines if H.323 calls are made from the
ViewStation.
• Checked: Enables H.323 videoconferencing for the
ViewStation.
• Not Checked: Disables H.323 videoconferencing for the
ViewStation.
Display IP Dialing Extension
• Checked: Displays the IP dialing extension used in H.323
video calls from and to the ViewStation.
• Not Checked: The IP dialing extension is not displayed for
H.323 video calls.
Video Network for V.35
The Video Network screen shown in Figure 2-28 is used to
configure the following properties:
• RS-366 Dialing
• V.35 Ports Used
• Dialing Protocol
58
Optional Configurations
www.polycom.com
