Chapter 1
ViewStation User Guide
V.35 Ports Used:
• 1: For 1-channel calls when dialing through the V.35, or
when the ViewStation is in non-dialed mode.
• 1-2: For 2 X 56 Kbps or 2 X 64 Kbps calls when dialing
through the V.35.

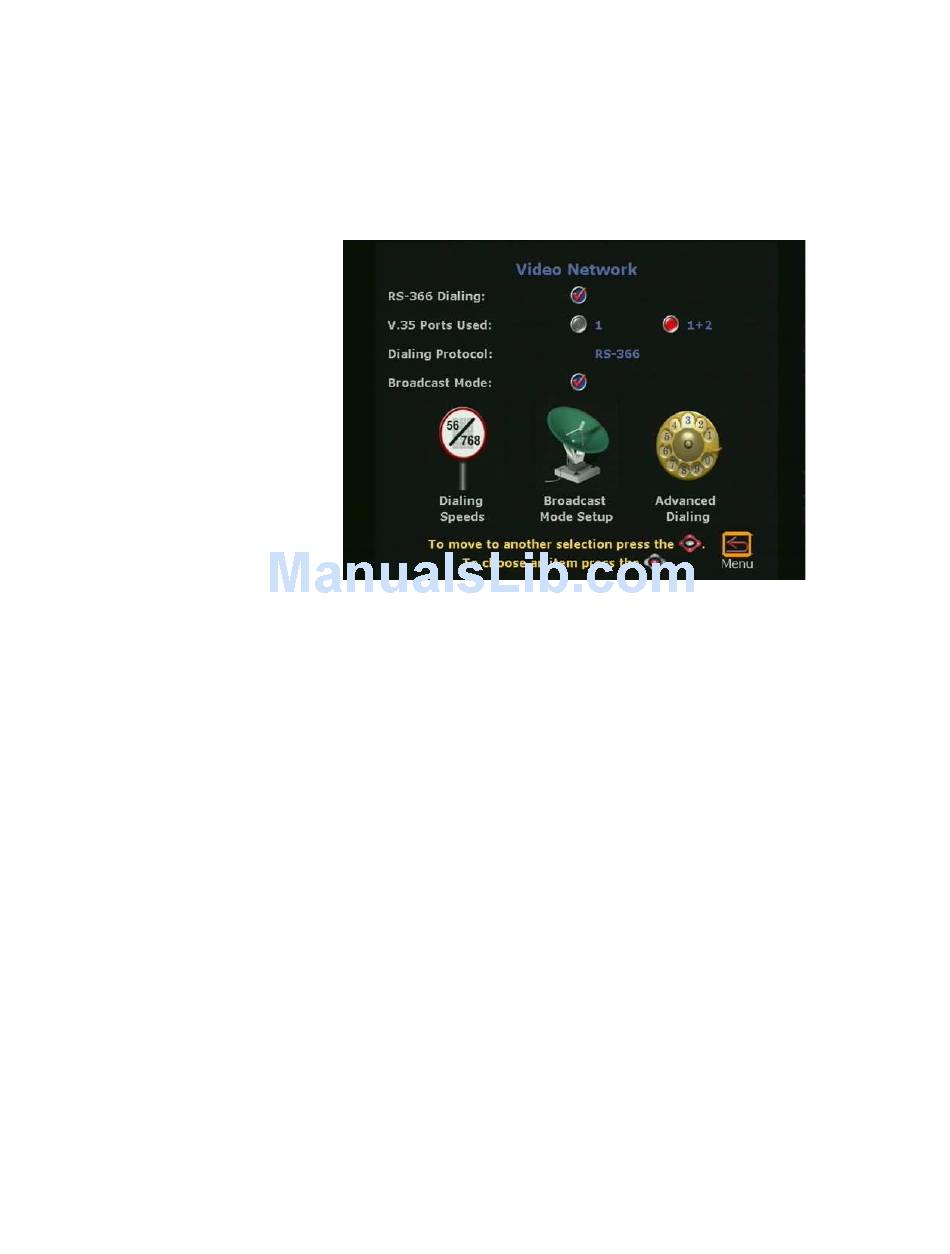

Figure 1-12. V.35 Video Network Screen
Dialing Protocol: RS-366 is displayed as the dialing protocol if
the RS-366 Dialing option is enabled. This field cannot be
changed.
Broadcast Mode: The ViewStation V.35 supports H.331
broadcast mode for broadcast transmissions over satellite. In
H.331 broadcast mode, the ViewStation sends and receives
audio and video without handshaking with either the far site
ViewStation or H.331-compatible video communications
systems. One ViewStation can send video and audio to many
ViewStations or other H.331-compatible systems, as in a large
satellite network.
• Checked: Enables broadcast mode. When checked, the
Broadcast Mode Setup icon appears.
• Not checked: Disables broadcast mode. When not
checked the Broadcast Mode Setup icon is not present.
18
