Mounting onto a Module T-Slot

An IO Blox can be mounted using the T-slots on the modules. Use the M4 square nuts
(and M4x8 screws) included in the IO Blox mounting kit to mount onto a T-slot.
NOTE: Mount the IO Blox close enough to the MB-10 amp to connect the
cables.
1. Insert two M4 square nuts (DIN 562) into one of the T-slots on the side of a
module. Insert the nuts near the end cap opposite to the motor.
2. Position the IO Blox over the T-slot nuts; align the T-slot nuts with the two
mounting holes on the sides of the IO Blox.
3. Secure the IO Blox with two M4x8 screws. See

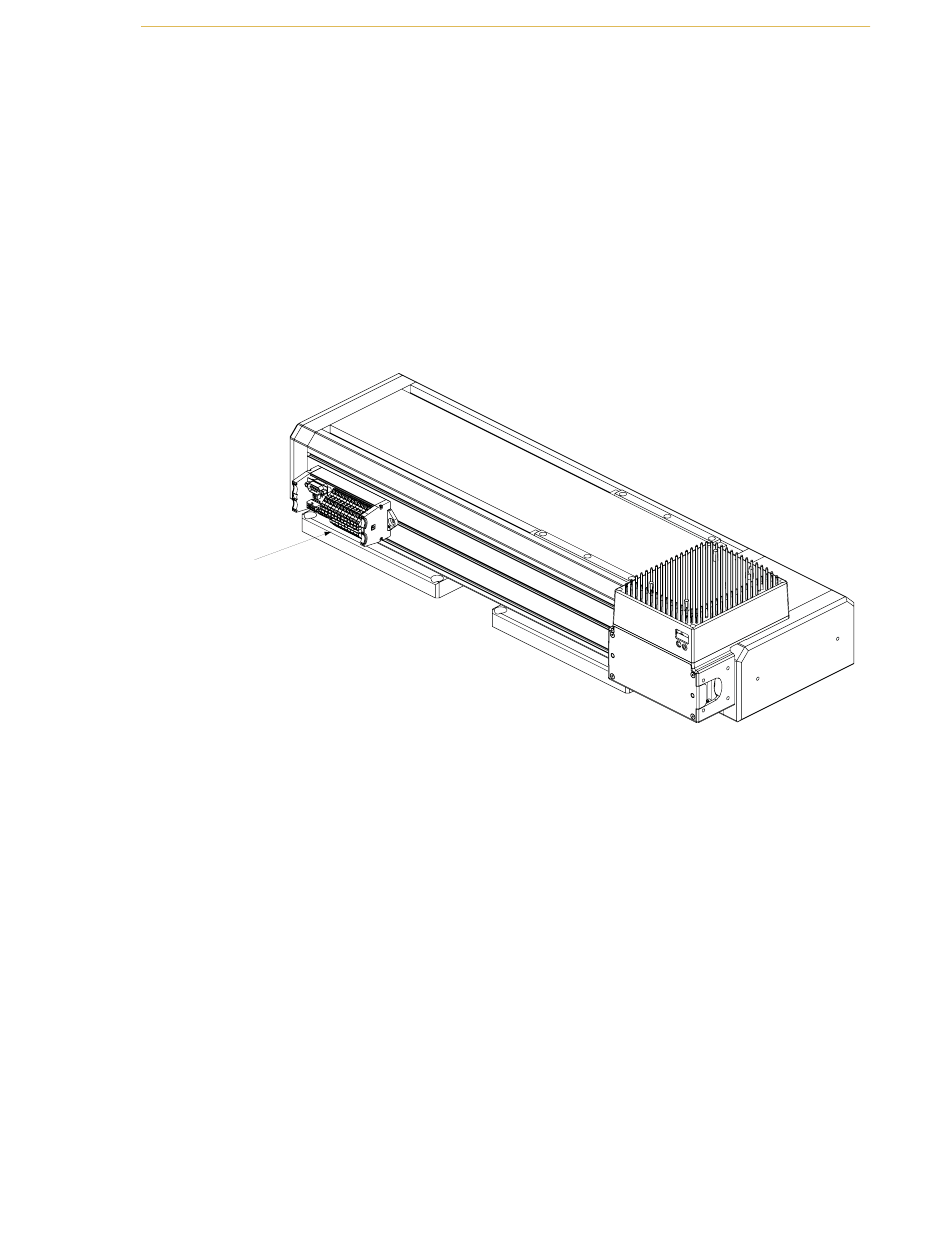

IO Blox
Mounted
on Module's
T-Slot
Figure 2-13. Mounting onto a Module T-Slot
Installation on an Adept Python Modules System
Adept IO Blox User's Guide, Rev B
Figure 2-13.
