Chapter 2 - Installation
2.5

Installation on an Adept Viper System

Mechanical Mounting

For Adept Viper robots, the IO Blox can be mounted on a DIN rail - see
DIN Rail" on page

Cable Installation

1. Locate the IO Blox-to-Robot cable supplied with the system.
2. Connect the end of the cable with the matching D-sub connector to the EXPIO
connector on the sDAI module in the PA-4 power chassis.

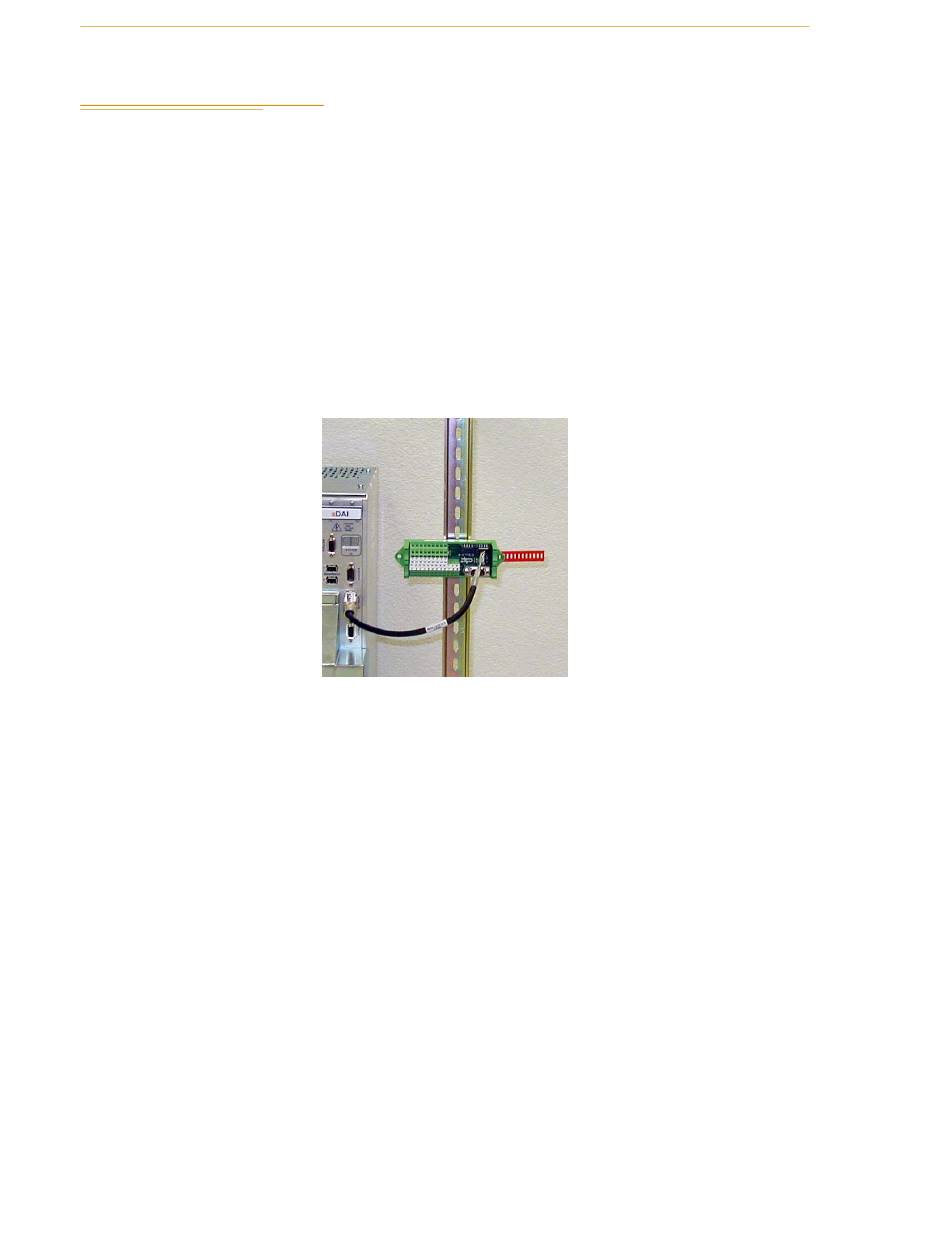

Figure 2-7. IO Blox Cable Connection to sDAI Module
3. Connect the other end of the cable to the JCBL1 connector on the IO Blox. See
Figure 3-1 on page 27
NOTE: To install multiple IO Blox devices, see
Blox Devices" on page
16
12.
for the location of JCBL1.
10.
Adept IO Blox User's Guide, Rev B
"Mounting on a
"Installing Multiple IO
