Mounting onto a Three-Axis System
1. To mount an IO Blox device to the X-axis module, mount the IO Blox to the
T-bracket cover on the X-axis MB-10 amp. See
on page 21
for information.
2. To mount the IO Blox to the Z-axis module, position the IO Blox onto the
enclosure on the Z-axis module; align the two mounting holes on the sides of the
IO Blox with the corresponding two holes on the enclosure. Secure the IO Blox
with two M4x8 screws. See
IO Blox
Mounted
on First
MB-10 Amp

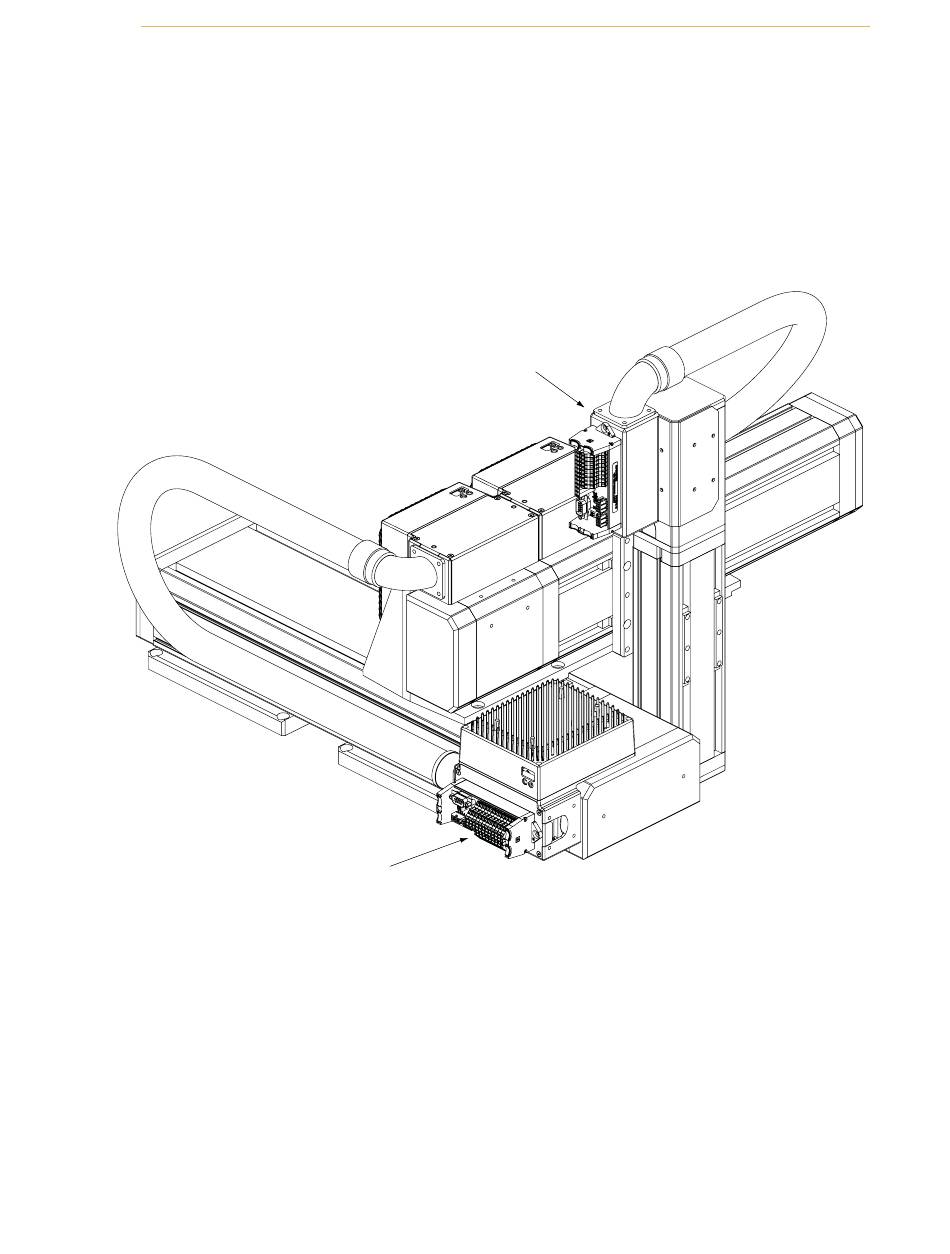

Figure 2-15. Mounting onto a Three-Axis System
NOTE: Adept recommends mounting IO Blox devices only on the first
and last MB-10 amps in a three-axis Python system.
Adept IO Blox User's Guide, Rev B
Installation on an Adept Python Modules System
"Mounting onto an MB-10 Amp"
Figure
2-15.
IO Blox
Mounted
on Last
MB-10 Amp
25
