1
Introduction
1.1
Product Description
The Adept IO Blox device is designed for adding digital input and output capability to
Adept products, including the Cobra i-series and s-series robots, Adept Python Linear
Modules, Adept Viper robots, and AdeptOne with sEJI robots. The IO Blox offers 8 inputs
and 8 outputs, all optically isolated. You can connect up to four IO Blox devices per robot
or MB-10 amp.
The IO Blox uses clamp-style terminal strips for installing customer wiring. The device
can be installed on a robot, or in a panel-mount environment on a DIN Rail. The product
is offered with several cable options for different installation locations.

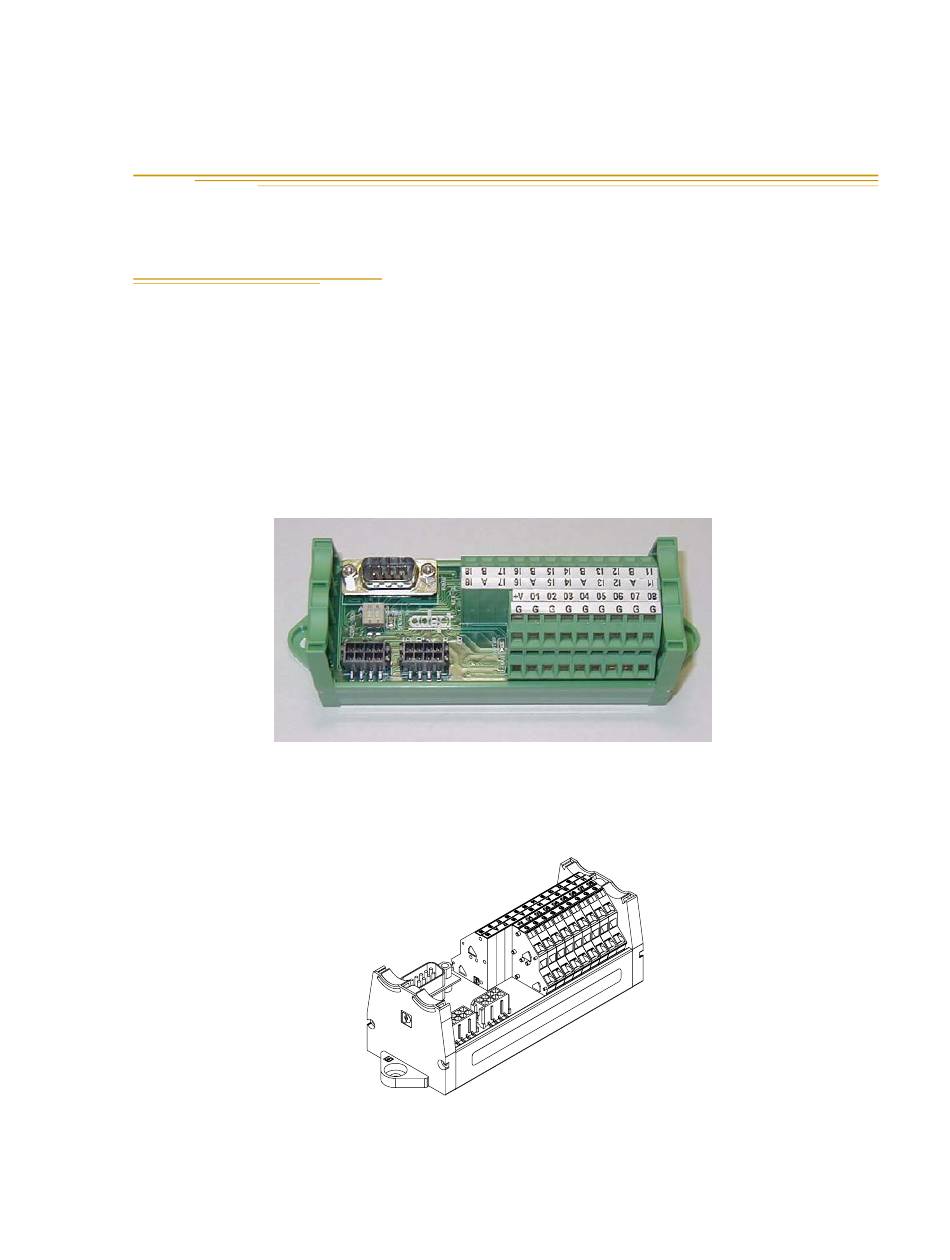

Figure 1-1. Adept IO Blox Photo
Figure 1-2. Adept IO Blox Drawing
Adept IO Blox User's Guide, Rev B
5
