Mechanical Mounting

IO Blox modules can be mounted onto Adept Python Modules systems in the following
ways:
• Onto the MB-10 T-bracket cover
• Onto the end cap of an L18 module
• Onto a module T-slot
• Onto a Z-axis harness enclosure
Use the M4x8 mounting screws included in the IO Blox mounting kit to mount the IO
Blox.
IO Blox can also be mounted on a DIN rail - see

Mounting onto an MB-10 Amp

1. Position the IO Blox on the MB-10 T-bracket cover; align the two mounting holes
on the sides of the IO Blox with the corresponding two holes on the T-bracket
cover.
2. Secure the IO Blox to the T-bracket cover with two M4x8 screws. See

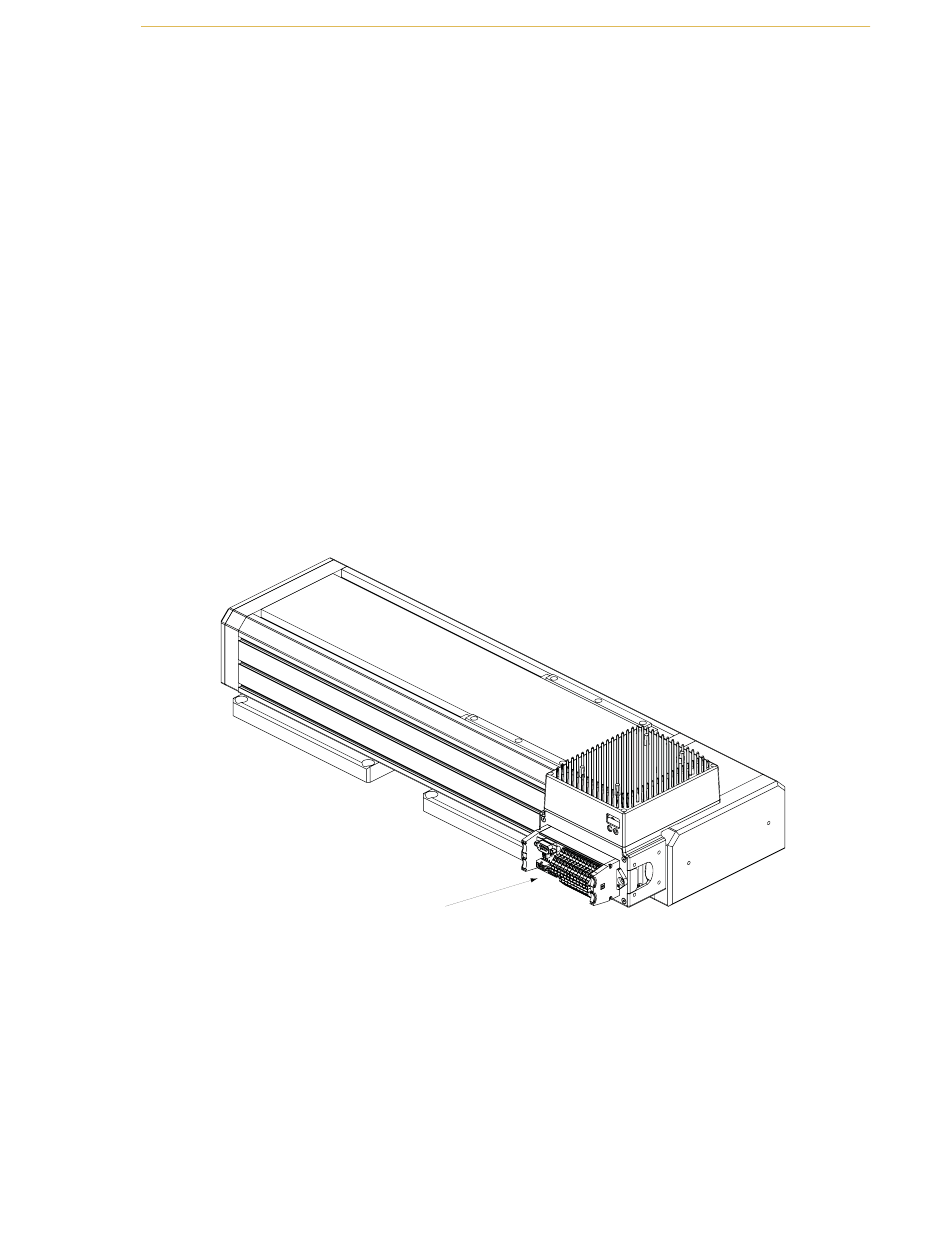

Figure 2-11. Mounting onto an MB-10 Amp
Installation on an Adept Python Modules System
IO Blox
Mounted
on MB-10
Amp T-Bracket
Cover
Adept IO Blox User's Guide, Rev B
"Mounting on a DIN Rail" on page 12.
Figure 2-11.
