Chapter 2 - Installation

Mounting on a DIN Rail

The IO Blox can be mounted on a DIN rail using an optional foot element from Phoenix
Contact, p/n 2959434. Adept does not supply this foot element - you can order it from
Phoenix Contact or another electronic parts supplier.
1. Remove the bolt flanges from each end of the device.
2. Remove one of the end caps by removing two Phillips head screws. See
2-3.
3. Turn the device over and slide in the DIN rail foot element.
4. Replace the endcap.
5. Snap the device onto the DIN rail by slipping it into the grooves in the slider and
pressing down until it clicks and locks in place.
6. To remove the device, pull on the red strap and lift the device off.

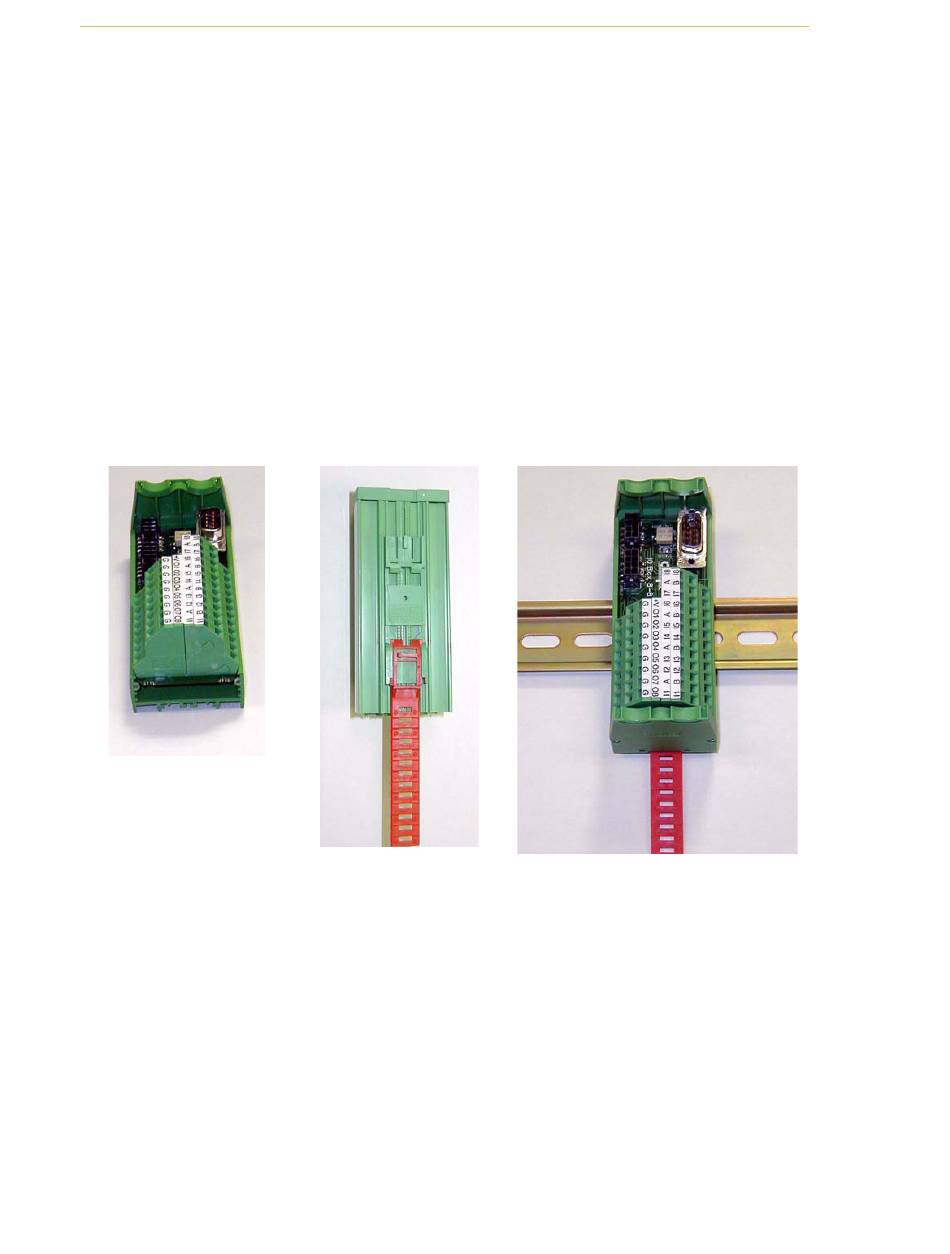

Endcap Removed
12
DIN Rail Foot
Element Installed
Figure 2-3. DIN Rail Mounting
Adept IO Blox User's Guide, Rev B
Figure
IO Blox Mounted on
DIN Rail
