Chapter 2 - Installation
Cable Installation
1. Locate the IO Blox-to-Robot cable supplied with the system.
2. Connect the end of the cable with the matching D-sub connector to the IO Blox
connector on the robot. See
3. Connect the other end of the cable to the JCBL1 connector on the IO Blox. See
Figure 3-1 on page 27
NOTE: To install multiple IO Blox devices, see
Blox Devices" on page
14

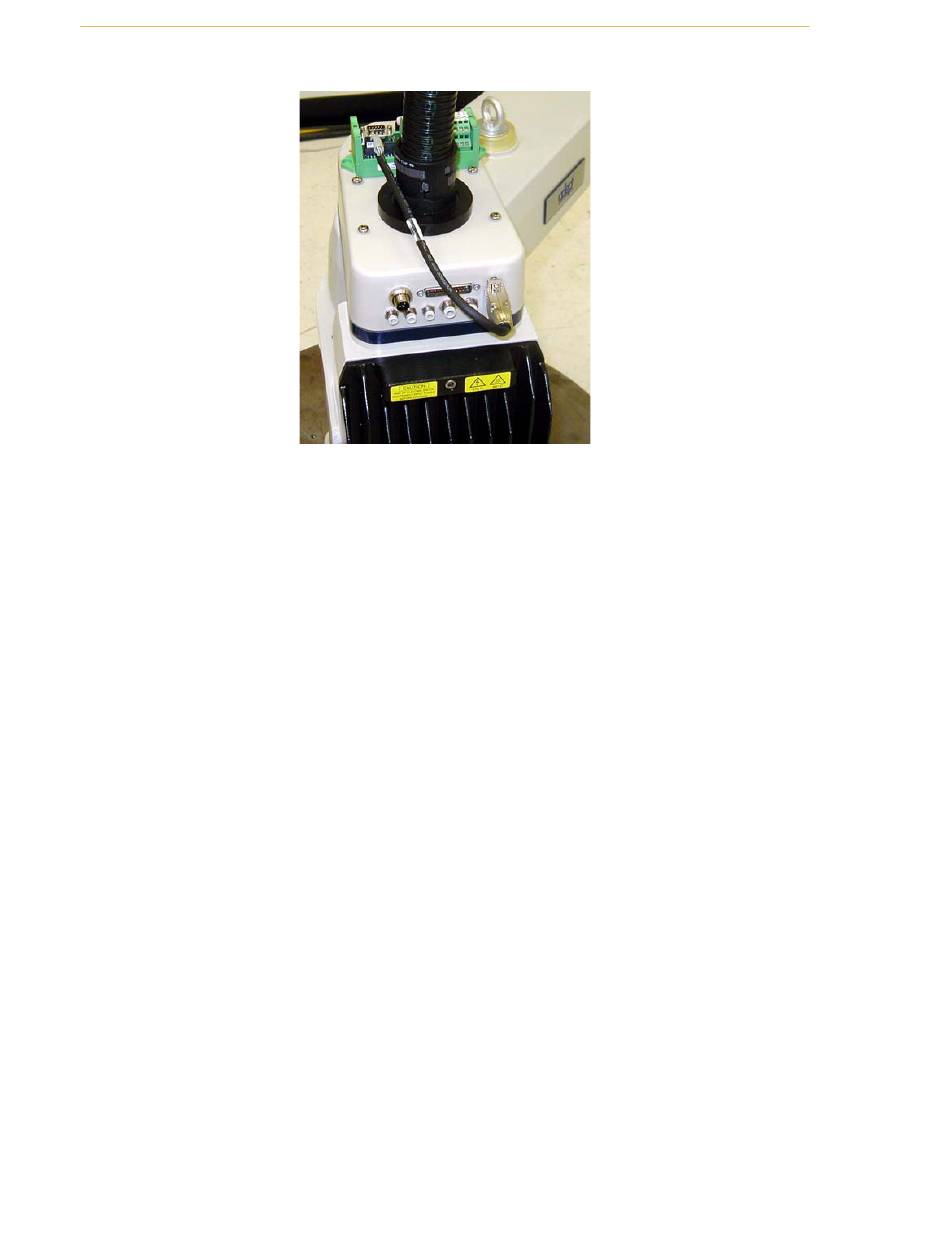

Figure 2-5. IO Blox Mounted on Inner Link
Figure
for the location of the JCBL1 connector.
10.
Adept IO Blox User's Guide, Rev B
2-5.
"Installing Multiple IO
