The module's internal supply voltages are generated from a single input supply of 5 - 15 V DC. Some of
these voltages are available on the Mercury module connectors to supply circuits on the base board.
Four LEDs are connected to the SoC pins for status signaling.
2.2

Module Configuration and Product Codes

Table 1 describes the available standard module configurations. Custom configurations are available; please
contact Enclustra for further information.
Product Code
ME-SA1-C6-7I-D10
Table 1: Standard Module Configurations

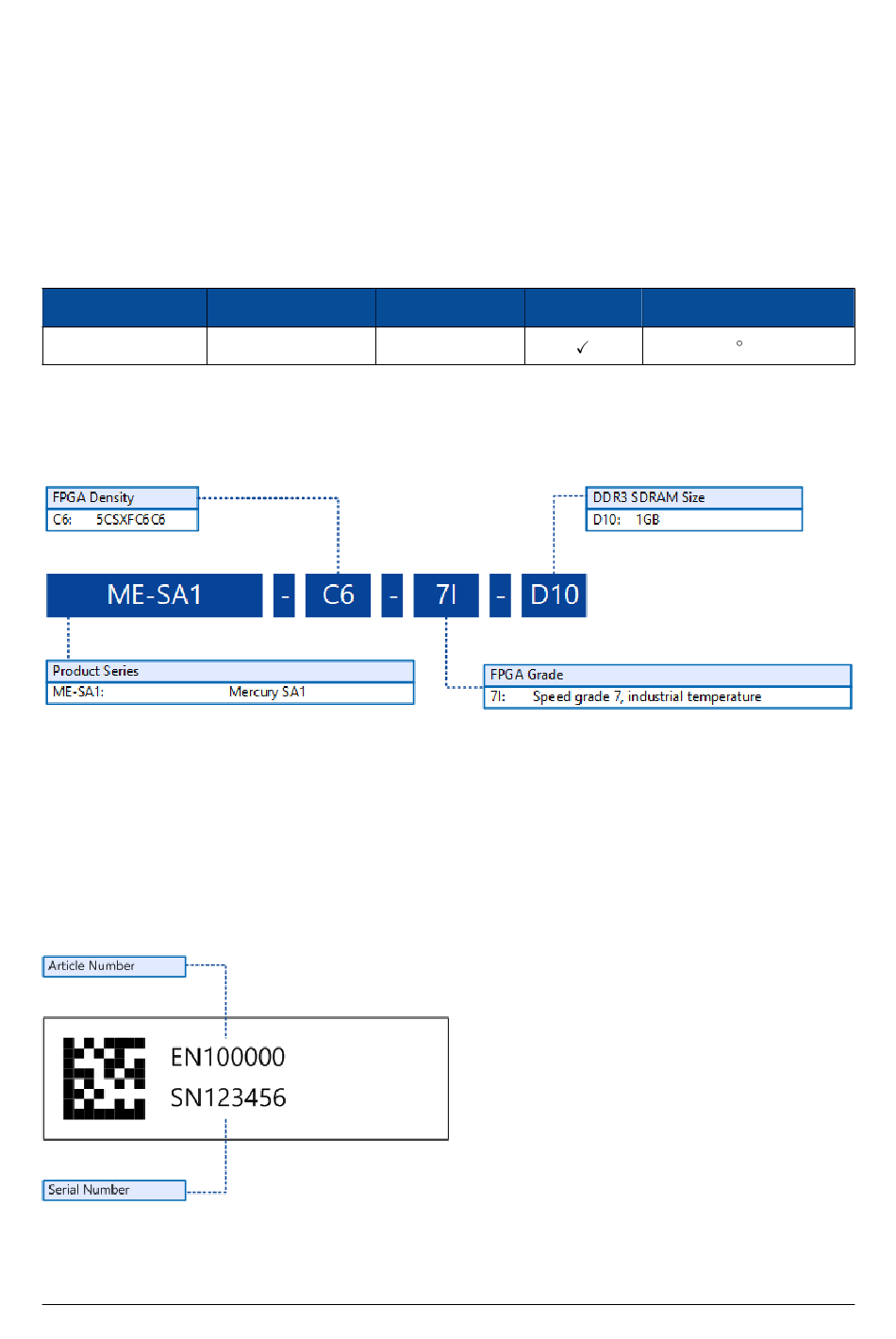

The product code indicates the module type and main features. Figure 2 describes the fields within the
product code.
Figure 2: Product Code Fields
Please note that for the first revision modules or early access modules, the product code may not respect
entirely this naming convention. Please contact Enclustra for details on this aspect.
2.3

Article Numbers and Article Codes

Every module is uniquely labeled, showing the article number and serial number. An example is presented
in Figure 3.
Figure 3: Module Label
D-0000-402-002
SoC DDR3L SDRAM
5CSXFC6C6U23I7N
PCI Express
1 GB
10 / 49
Temperature Range
-40 to +85 C
Version 06, 16.02.2021
