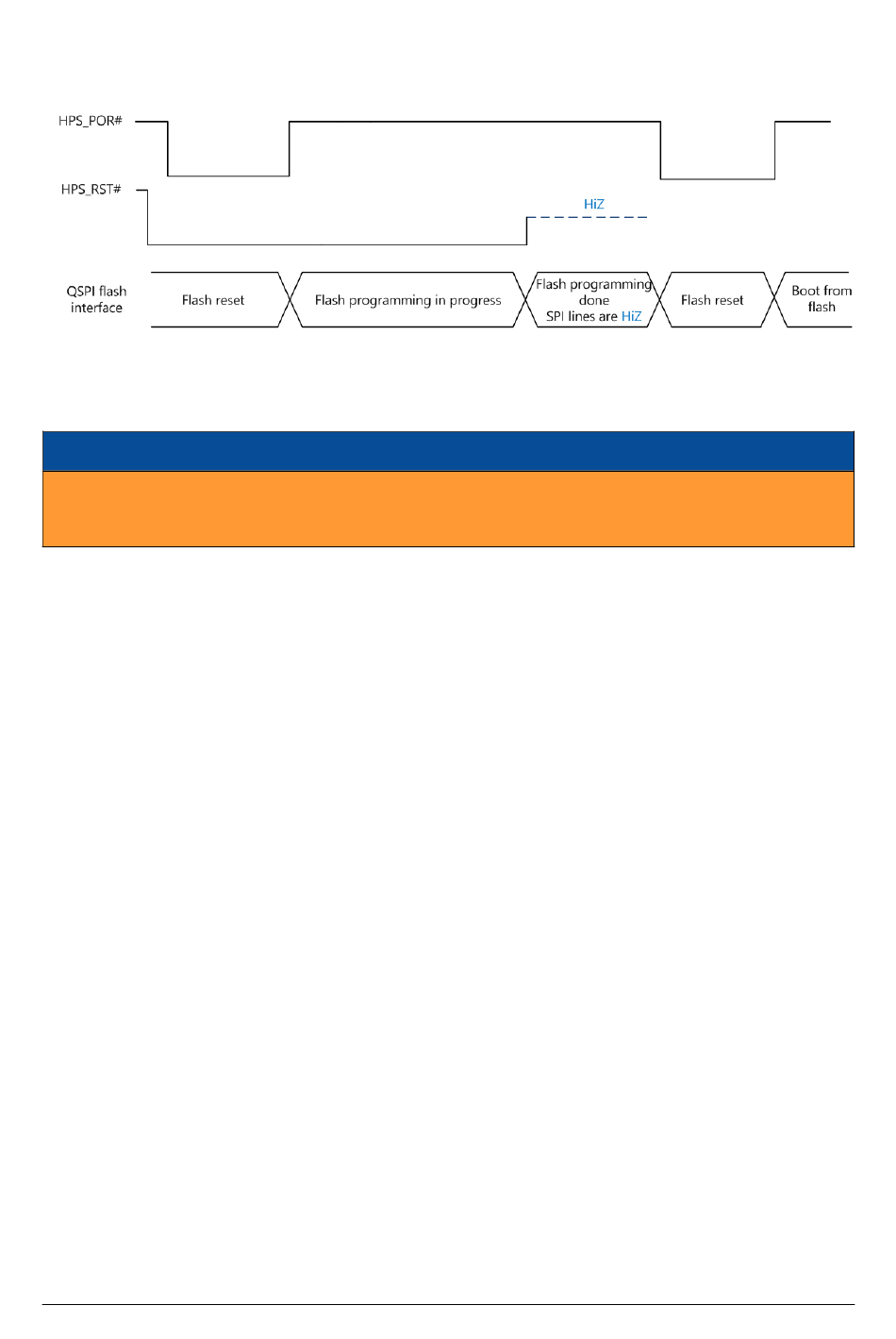

Figure 13: QSPI Flash Programming from an External SPI Master - Signal Diagrams
Warning!
Accessing the QSPI flash directly without putting the SoC device into reset may damage the equipped
SoC device, as well as other devices on the Mercury SA1 SoC module.
3.11

Enclustra Module Configuration Tool

In combination with an Enclustra base board, the QSPI flash can be programmed using the Enclustra Module
Configuration Tool (MCT) [16].
D-0000-402-002 40 / 49 Version 06, 16.02.2021
