2.4

Top and Bottom Views

2.4.1

Top View

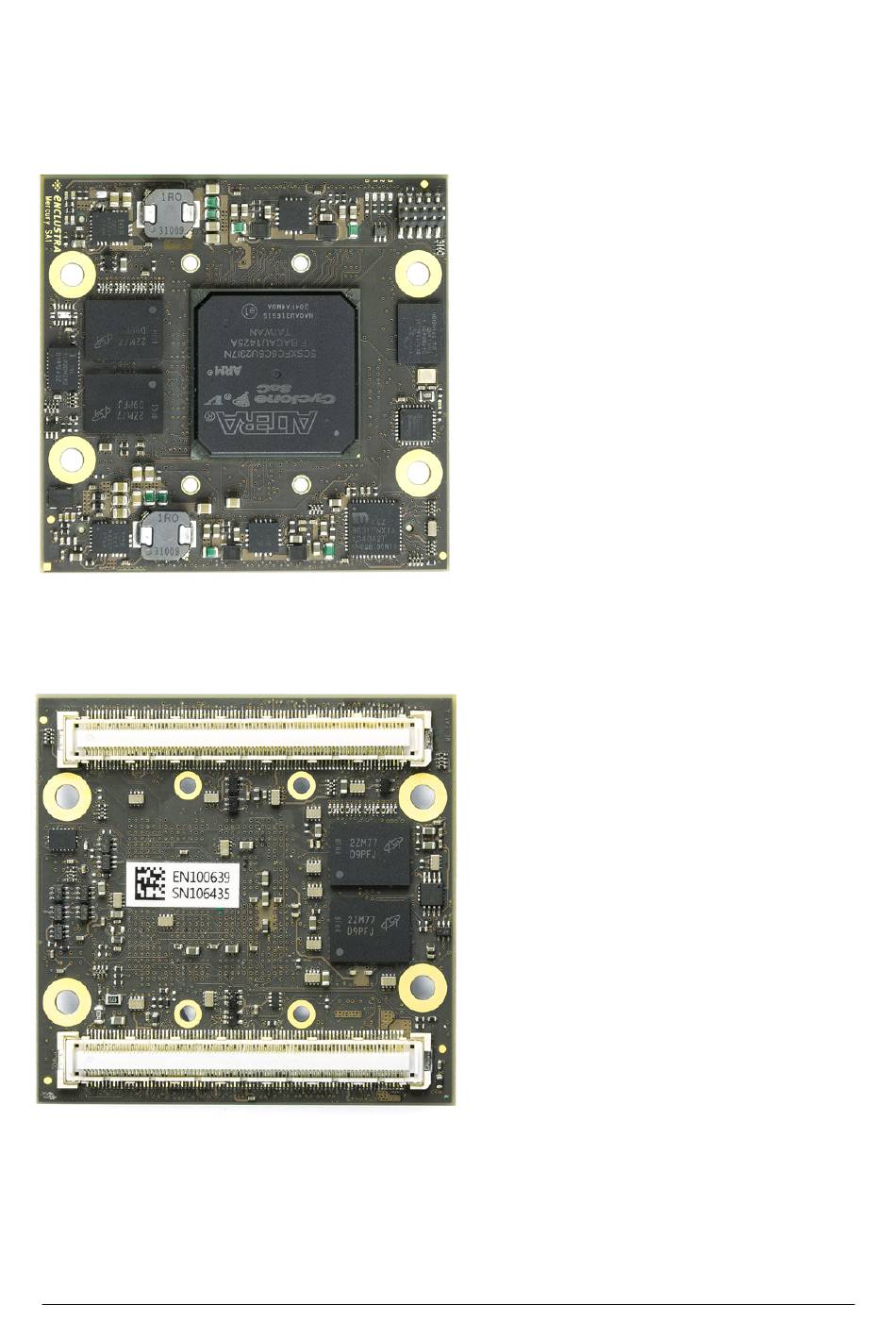

Figure 4: Module Top View
2.4.2

Bottom View

Figure 5: Module Bottom View
Please note that depending on the hardware revision and configuration, the module may look slightly dif-
ferent than shown in this document.
