2.5

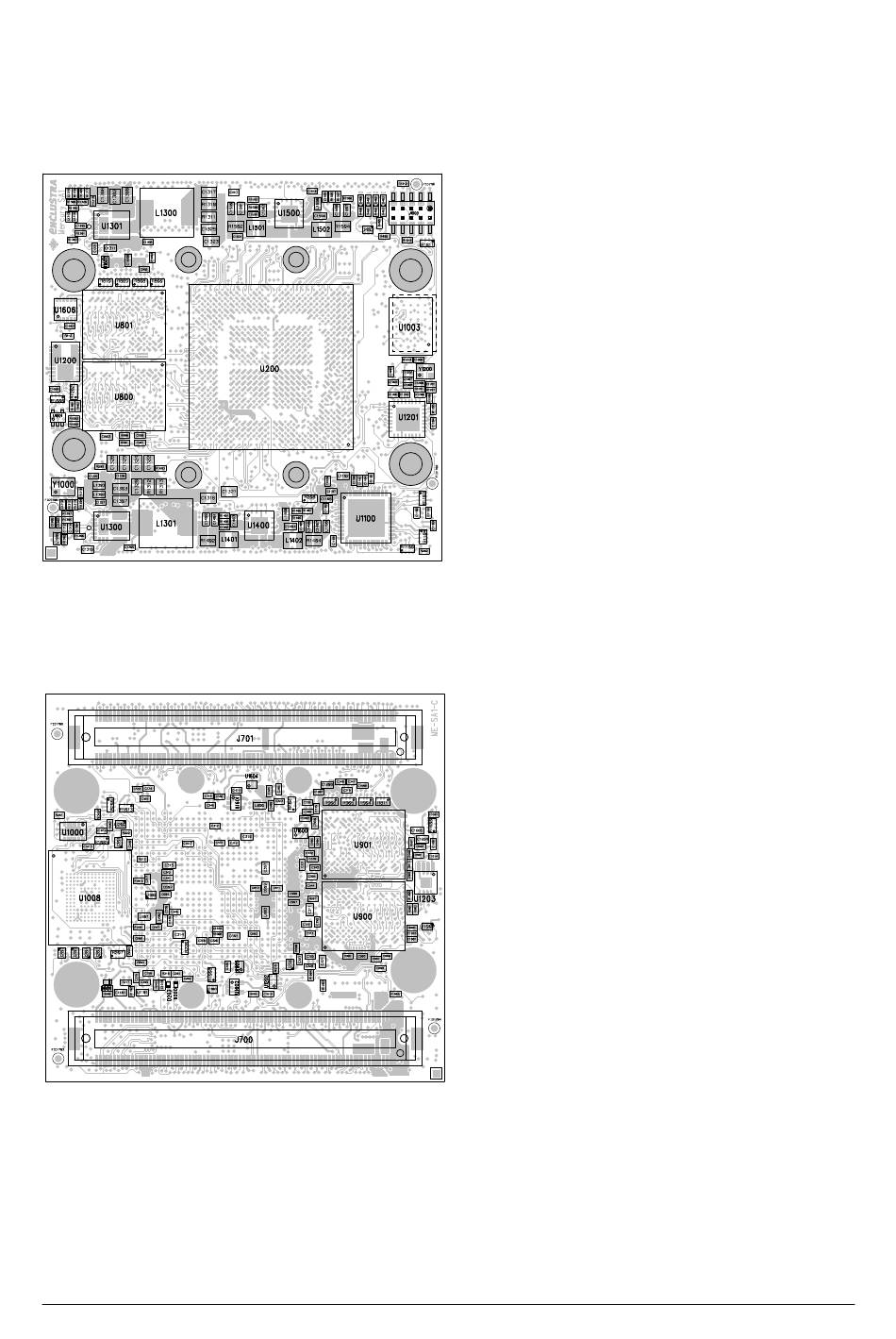

Top and Bottom Assembly Drawings
2.5.1
Top Assembly Drawing
Figure 6: Module Top Assembly Drawing
2.5.2
Bottom Assembly Drawing
Figure 7: Module Bottom Assembly Drawing
Please note that depending on the hardware revision and configuration, the module may look slightly dif-
ferent than shown in this document.
D-0000-402-002
13 / 49
Version 06, 16.02.2021
