Chapter 3: Jumpers and Connectors
Internal Connectors
CAN Terminator Resistor Selection Switch

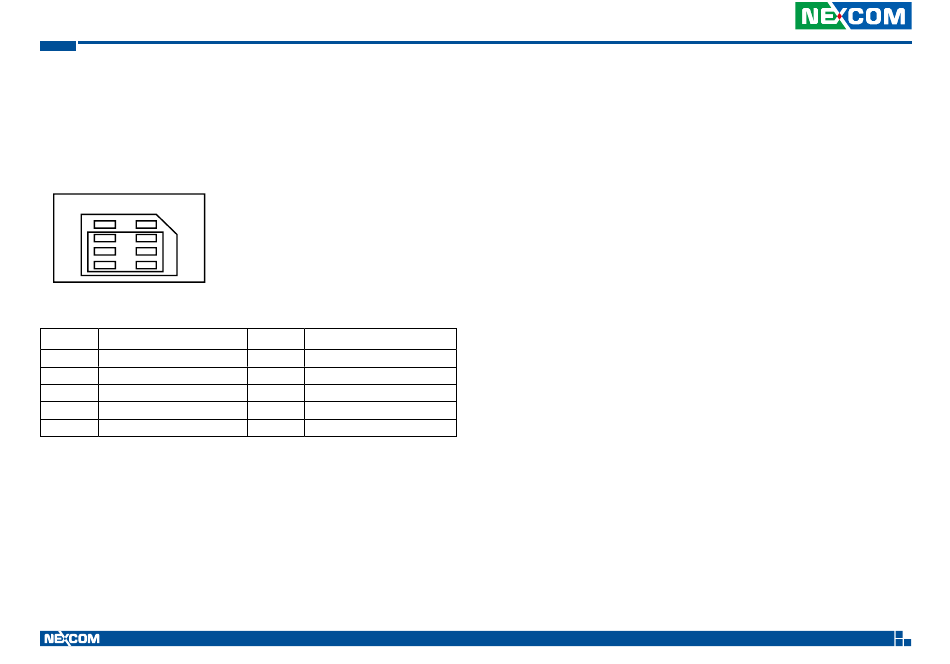

Connector location: CN22/CN25
C4
C8
C3
C7
C2
C6
C1
C5
Pin
Definition
C1
UIMA POWER
C3
UIMA CLK
C5
GND
C7
UIMA DATA
CD
SIMA_DET
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
C2
UIMB RESET
C4
N.C
C6
N.C
C8
N.C
35
VTC 7260 Series User Manual
