Chapter 1: Product Introduction

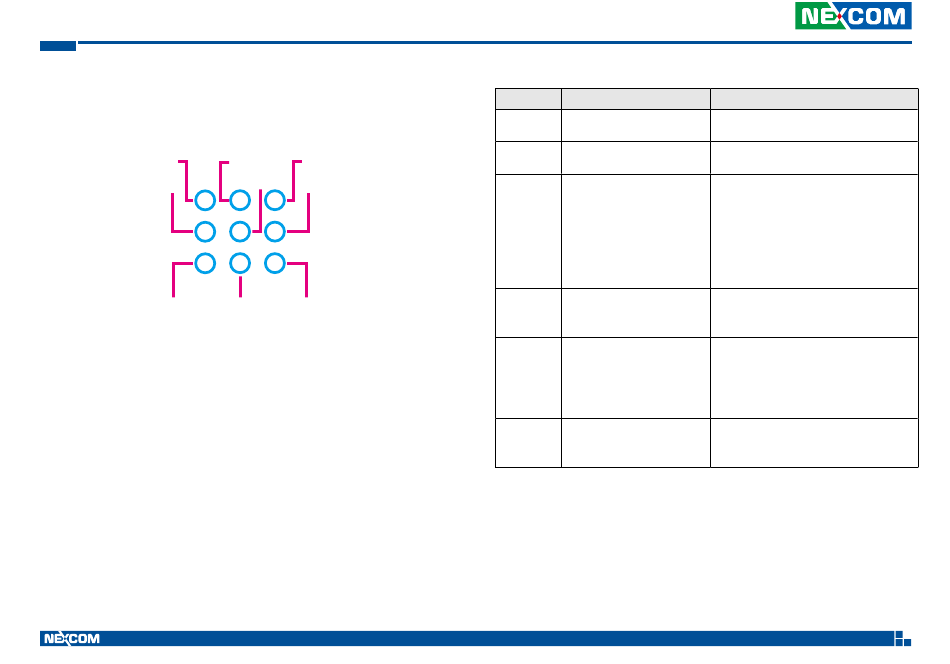

VTC 7260-x LED Description

Prog3
Prog4
WLAN WWAN
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Prog1 PWR
Prog2
STAT
SATA/NVME
LED Description
WWAN WWAN signal/service indicator
WLAN WLAN signal/service indicator
STAT System status indicator
PWR Power feed indicator
SATA/NVMe SATA/NVMe SSD Indicator
Prog. 1~4 User programmed indicator
4
LED Behavior
▪ Solid green: Link active
▪ Blinking green: Data transmission
▪ Solid green: Link active
▪ Blink green: Data transmission
▪ Off: System power off
▪ Blinking green: System booting
(BIOS post)
▪ Solid green: System ready
▪ 2Hz blinking red: System stalled
(Power is on, but system is not running.)
▪ Solid red: A fatal error occurred
▪ Solid green: Power active
▪ Solid red: Power failure
▪ Off: Power off
▪ Off: No storage installed
▪ Solid green: Powered on and ready
▪ Blinking green (10Hz): Reading/writing
data
▪ Soild red: A fatal error occurred
▪ Please refer to ATC8110 Commands
list at ST_SYSTEM_GET_33_02_
PROGRAM_LED_STATUS for Linux
VTC 7260 Series User Manual
