Chapter 3: Jumpers and Connectors

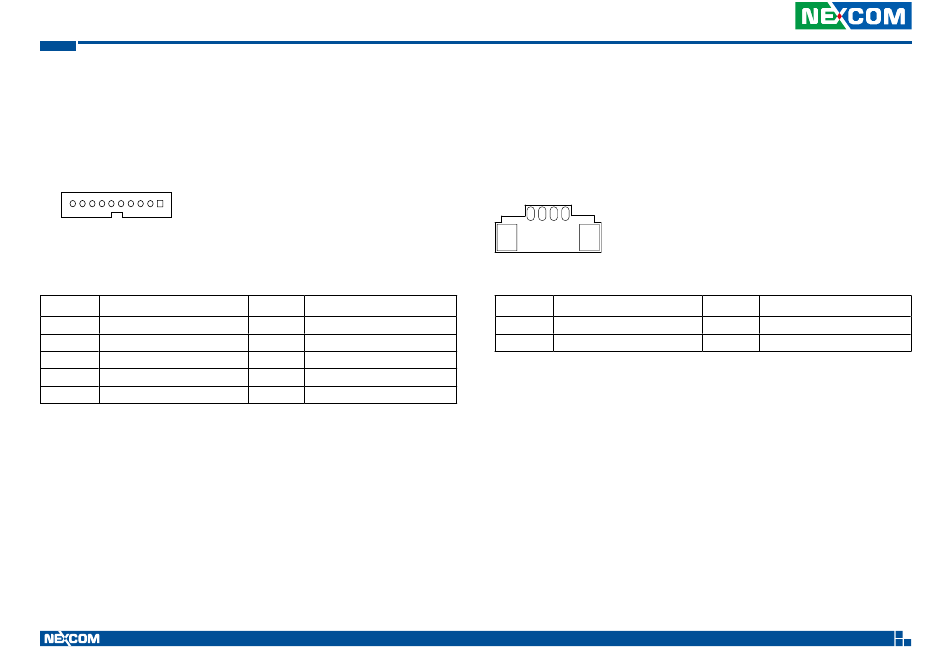

COM3/COM4 Connector
Connector type: 1x10 10-pin header
Connector location: J8/J9
10
1
Pin
Definition
1
GND
3
COM(3/4)_CTS
5
COM(3/4)_DTR
7
COM(3/4)_RI#
9
COM(3/4)_TXD
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
COM(3/4)_DSR
6
COM(3/4)_RXD
8
COM(3/4)_RTS
10
COM(3/4)_DCD
Audio Jack (Line-in)
Connector type: 1x4 4-pin header
Connector location: J10
1
4
Pin
Definition
1
LINE_IN_R
3
LINE_IN_L
31
Pin
Definition
2
LINE_IN_JD
4
GND
VTC 7260 Series User Manual
