Chapter 3: Jumpers and Connectors

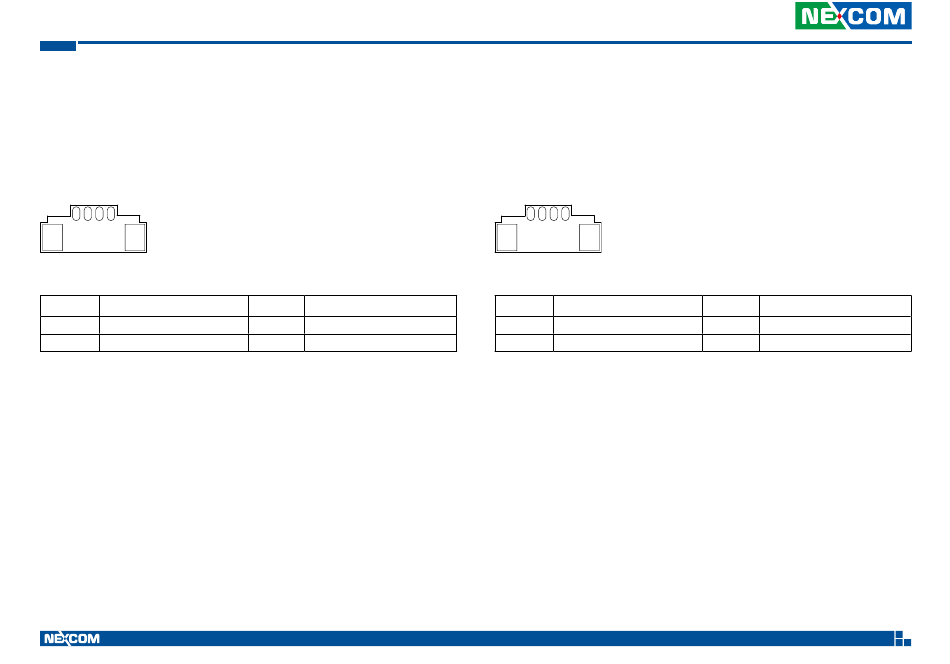

GPS DR Connector

Connector type: 1x4 4-pin header
Connector location: J4
1 4
Pin Definition
1 GND
3 ODOMETER
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 1PPS
4 DIRECTION

Internal USB2.0 Connector

Connector type: 1x4 4-pin header
Connector location: J5/J11
1 4
Pin Definition
1 GND
3 USB2_DN
30
Pin Definition
2 USB2_DP
4 USB_5V
