Chapter 1: Product Introduction
Connector Numbering

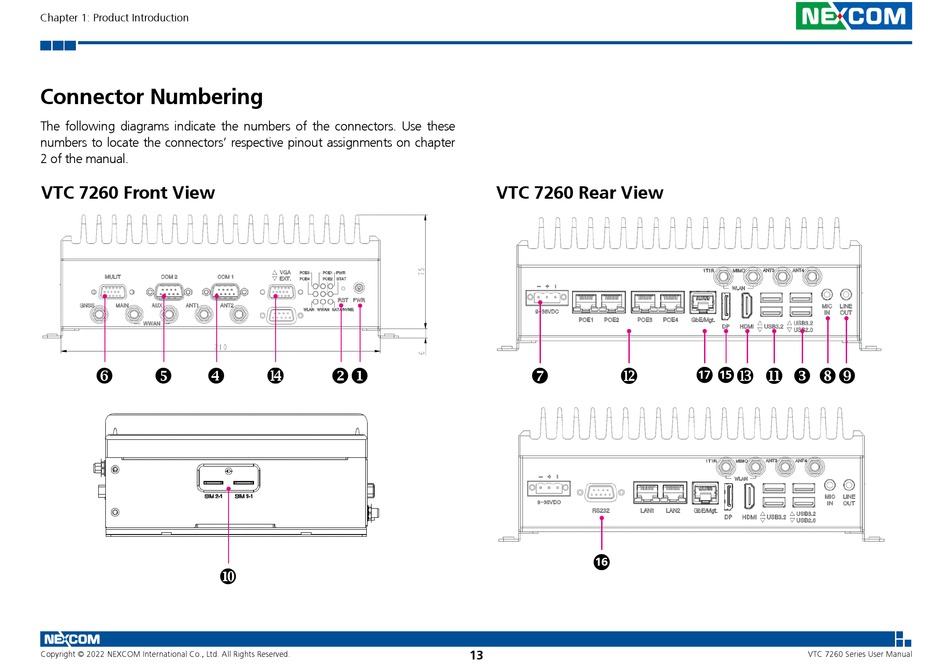

The following diagrams indicate the numbers of the connectors. Use these
numbers to locate the connectors' respective pinout assignments on chapter
2 of the manual.
VTC 7260 Front View
VTC 7260 Rear View
17
15
16
13
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
VTC 7260 Series User Manual
