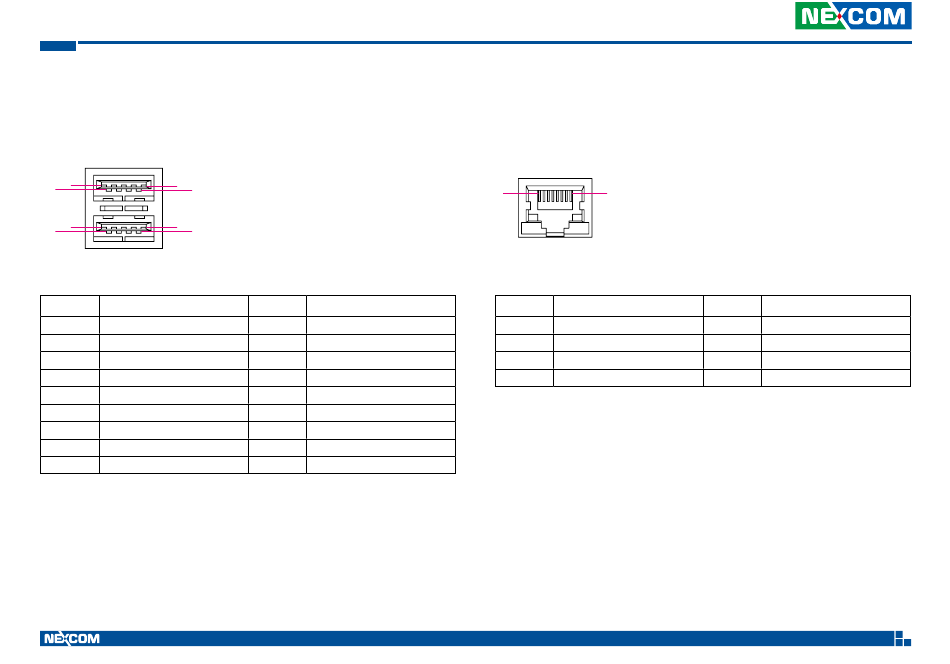

Chapter 2: External Connectors Pinout Description
Two Dual USB 3.2 Port
Connector number: 11
18
14
10
13
9
5
1
4
Pin
Definition
1
5V
3
USB_5P
5
USB3_RX5N
7
GND
9
USB3_TX5P
11
USB_6N
13
GND
15
USB3_RX6P
17
USB3_TX6N
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
USB_5N
4
GND
6
USB3_RX5P
8
USB3_TX5N
10
5V
12
USB_6P
14
USB3_RX6N
16
GND
18
USB3_TX6P
4x 2.5GbE (PoE) LAN Port
Connector number: 12
1
8
Pin
Definition
1
LAN_MDI_0P_R
3
LAN_MDI_1P_R
5
LAN_MDI_2P_R
7
LAN_MDI_3P_R
19
Pin
Definition
2
LAN_MDI_0N_R
4
LAN_MDI_1N_R
6
LAN_MDI_2N_R
8
LAN_MDI_3N_R
VTC 7260 Series User Manual
