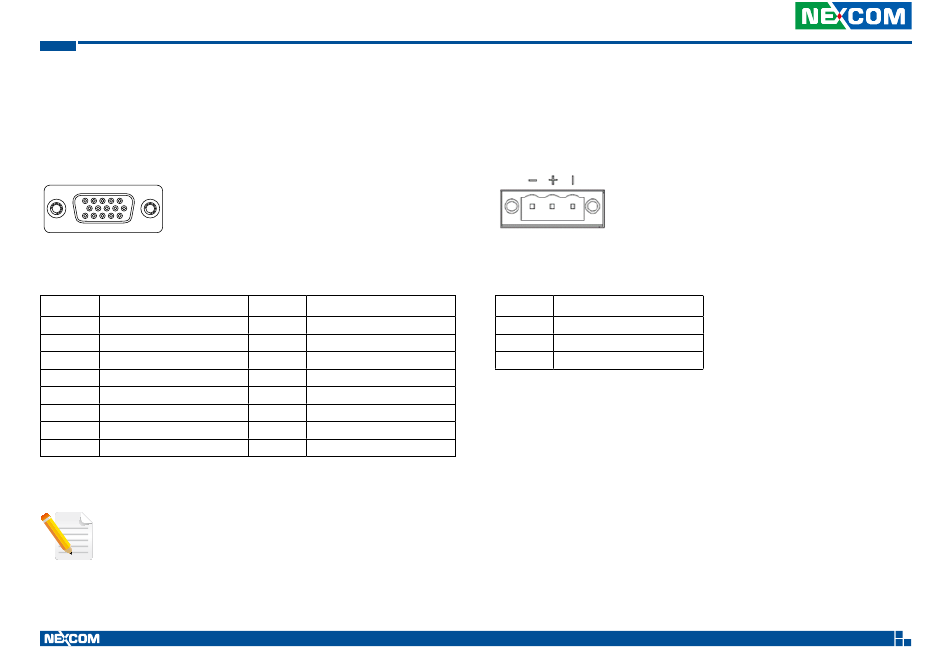

Chapter 2: External Connectors Pinout Description
Multiport Connector
Connector number: 6
5
1
5
1
15
11
15
11
Pin
Definition
1
CAN_L
3
GPO2
5
GPO4
7
GPI1
9
GPI3
11
CAN_ISOGND
13
GND
15
DR_DIRECTION
Note:
You need to connect the multi-port DB15 adapter cable to
access GPI, GPO, CAN2.0B and DR signal. Please refer to
Appendix I for details.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GPO1
4
GPO3
6
CAN_H
8
GPI2
10
GPI4
12
GPIO_GND
14
DR_ODOM
9V-36V DC Power Input
Connector number: 7
1
3
Pin
Definition
1
GND
2
VIN
3
Ignition
16
VTC 7260 Series User Manual
