Turning The Display; Post-Installation Check - Endress+Hauser Levelflex FMP55 Operating Instructions Manual

Levelflex FMP55 FOUNDATION Fieldbus
Endress+Hauser
6.2.5

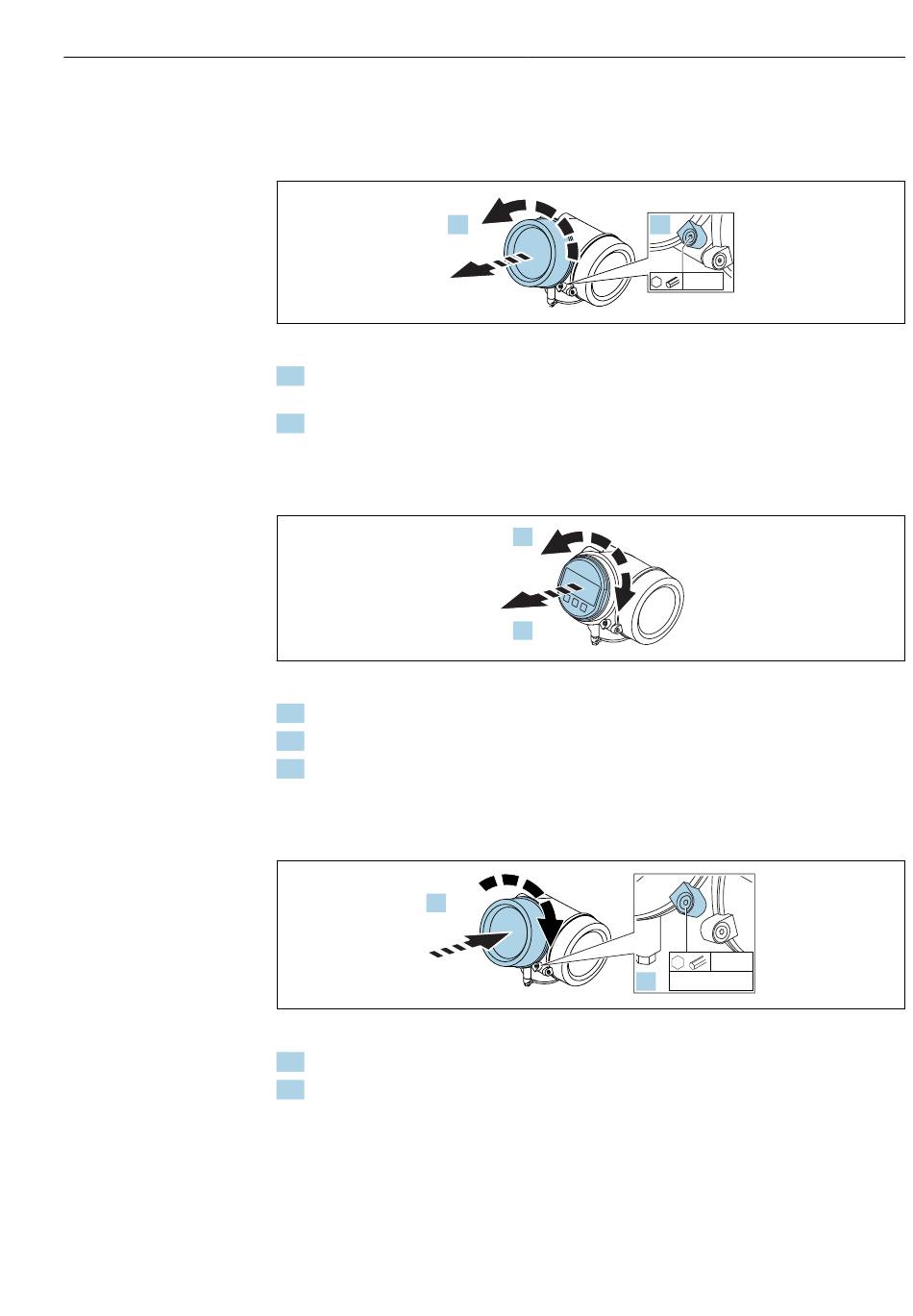

Turning the display

Opening the cover
1. Loosen the screw of the securing clamp of the electronics compartment cover using
an Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
2. Unscrew the electronics compartment cover and check the cover seal; replace it if
necessary.
Turning the display module
1. Pull out the display module with a gentle rotational movement.
2. Turn the display module to the desired position: Max. 8 × 45 ° in each direction.
3. Feed the coiled cable into the gap between the housing and main electronics module
and plug the display module into the electronics compartment until it engages.
Closing the cover of the electronics compartment
1.
1. Screw down the cover of the electronics compartment.
2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key
(3 mm), tighten the screw of the securing clamp on the electronics compartment
cover with 2.5 Nm.
6.3

Post-installation check

 Is the device undamaged (visual inspection)?
2.
2.
1.
1.
3 mm
3 mm
2. 2.5 Nm
Mounting
A0021430
A0036401
A0021451
31
