3. Click "Save as ..." and save a PDF of the protocol.
 The protocol contains the diagnostic messages and remedy information.
C: Via the "Eventlist / Extended HistoROM" function
1.

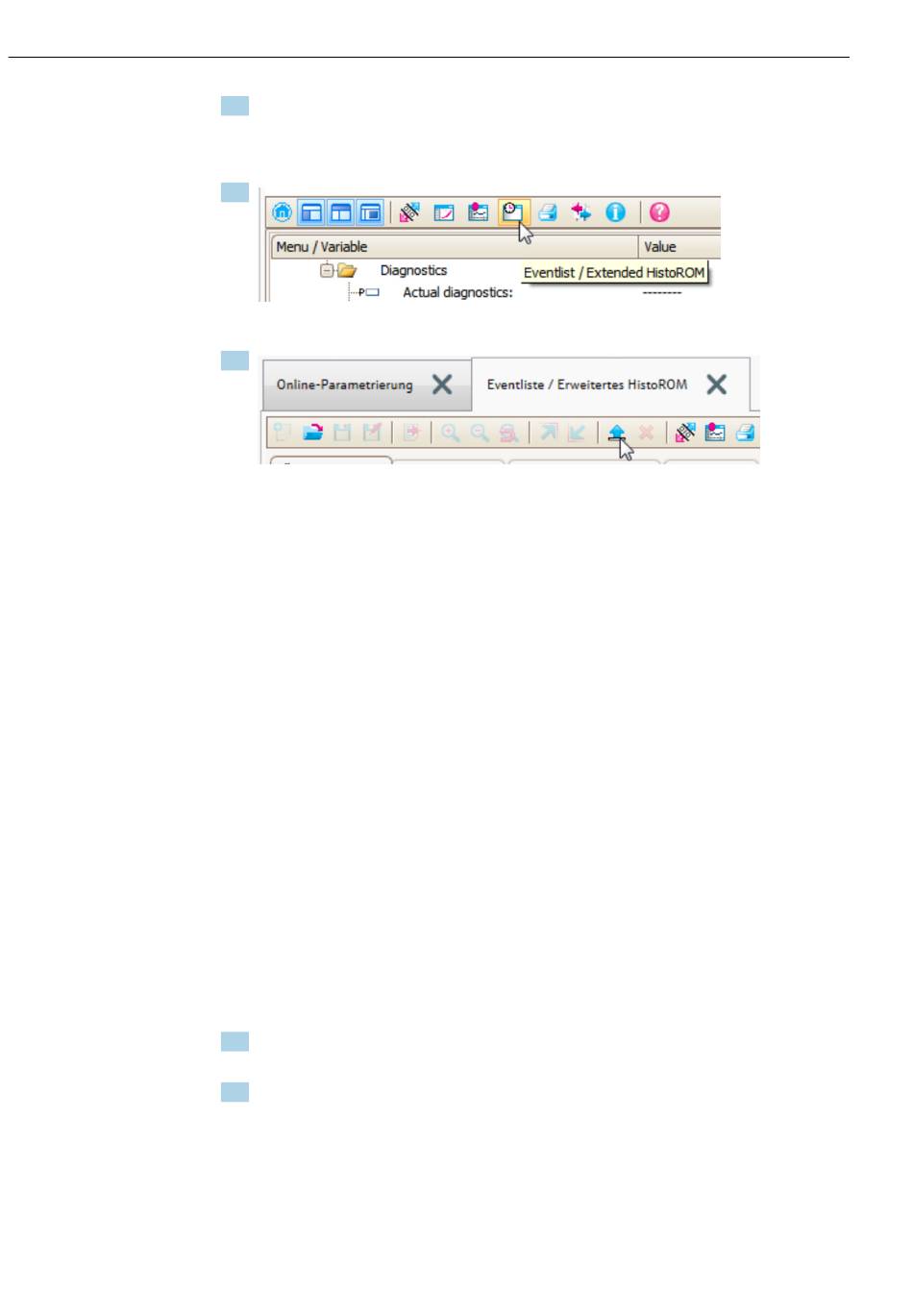

Select the "Eventlist / Extended HistoROM" function.
2.
Select the "Load Eventlist" function.
 The list of events, including remedy information, is shown in the "Data overview"
window.
13.4 Diagnostic messages in the DIAGNOSTIC Transducer
Block (TRDDIAG)
• The Actual diagnostics parameter displays the message with the highest priority. Every
message is also output as per the FOUNDATION Fieldbus Specification by means of the
XD_ERROR and BLOCK_ERROR parameters.
• A list of diagnostic messages is displayed in the Diagnostics 1 to Diagnostics 5
parameters. If more than 5 messages are currently active, only those with the highest
priority are displayed.
• You can view a list of alarms which are no longer active (event log) via the Previous
diagnostics parameter.
13.5

Diagnostic list

In the Diagnostic list submenu submenu, up to 5 currently pending diagnostic messages
can be displayed. If more than 5 messages are pending, the messages with the highest
priority are shown on the display.
Navigation path
Diagnostics → Diagnostic list
Calling up and closing the remedial measures
1. Press .
 The message for the remedial measures for the selected diagnostic event opens.
2. Press  +  simultaneously.
 The message about the remedial measures closes.
