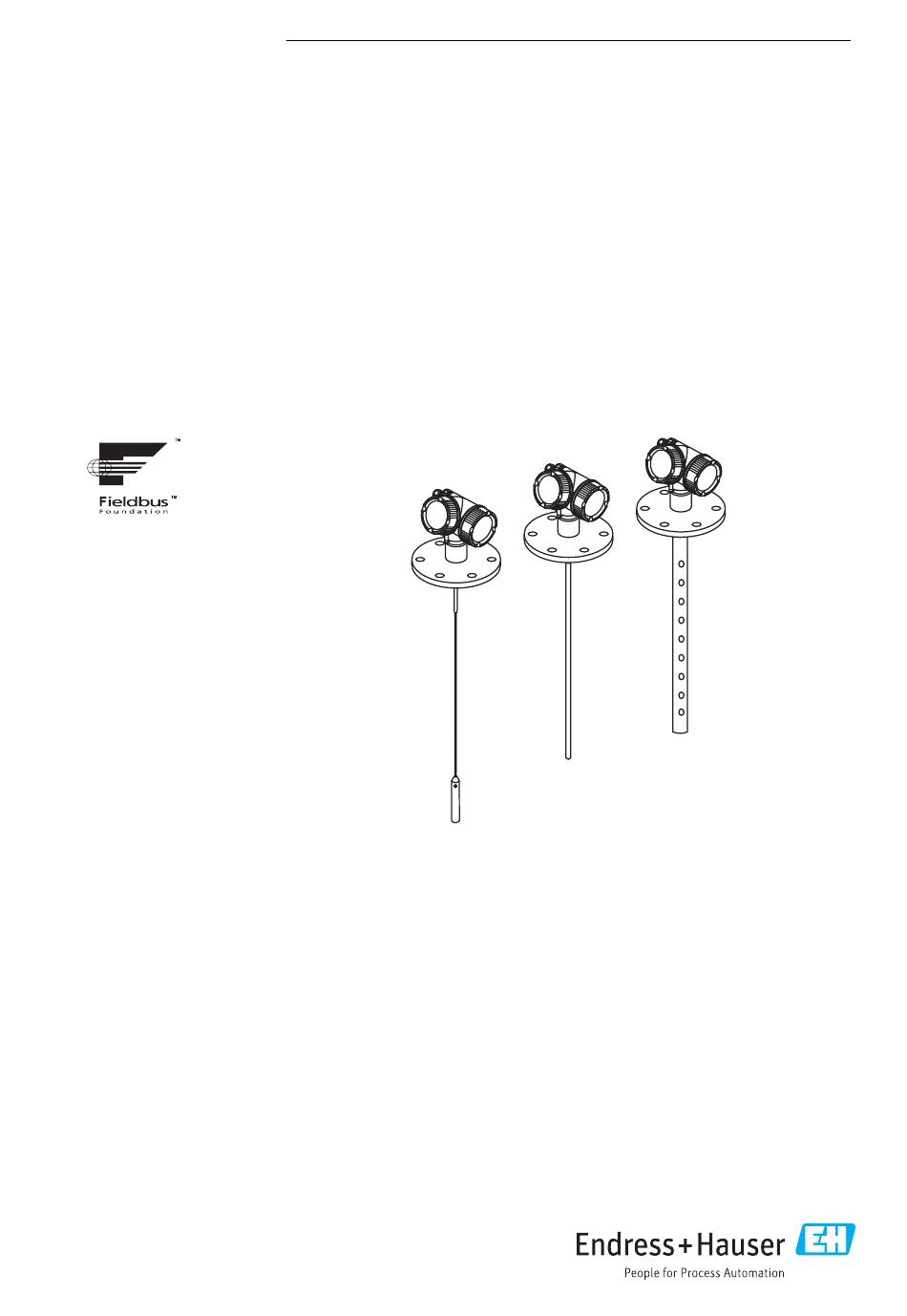

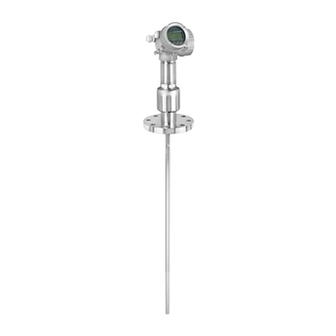

Brief Operating Instructions
Levelflex FMP55
FOUNDATION Fieldbus
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Levelflex FMP55 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Levelflex FMP55

Summary of Contents for Endress+Hauser Levelflex FMP55

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Levelflex FMP55 FOUNDATION Fieldbus Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Levelflex FMP55 FOUNDATION Fieldbus Table of contents Table of contents Important document information ..........5 Symbols .
  • Page 4 Table of contents Levelflex FMP55 FOUNDATION Fieldbus 11.6 Configuration management ............. . 54...

  • Page 5: Important Document Information

    Levelflex FMP55 FOUNDATION Fieldbus Important document information Important document information Symbols 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 6 Important document information Levelflex FMP55 FOUNDATION Fieldbus 1.1.4 Symbols for certain types of information Symbol Meaning Symbol Meaning Permitted Preferred Procedures, processes or actions that Procedures, processes or actions that are permitted. are preferred. Forbidden Procedures, processes or actions that Indicates additional information.

  • Page 7: Terms And Abbreviations

    Time of Flight FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...

  • Page 8: Registered Trademarks

    Registered trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 9: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 10: Workplace Safety

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Endress+Hauser...

  • Page 11: Product Description

    The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the EAC mark. Product description Product design 3.1.1...

  • Page 12: Incoming Acceptance And Product Identification

    ): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed.

  • Page 13: Storage, Transport

    Levelflex FMP55 FOUNDATION Fieldbus Storage, Transport Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point WARNING Housing or probe may be damaged or break away.
  • Page 14 Storage, Transport Levelflex FMP55 FOUNDATION Fieldbus A0015471 Endress+Hauser...

  • Page 15: Mounting

    Suitable mounting position A0011281  3 Mounting position of Levelflex FMP55 • Rod probes / rope probes: must be mounted in a stilling well or bypass. • Coax probes: can be mounted at an arbitrary distance from the wall of the vessel.
  • Page 16 Mounting Levelflex FMP55 FOUNDATION Fieldbus 6.1.2 Securing the probe Securing coax probes For WHG approvals: For probe lengths ≥ 3 m (10 ft) a support is required. A0012608 Coax probes can be supported at any point of the outer tube.

  • Page 17: Mounting The Device

    Levelflex FMP55 FOUNDATION Fieldbus Mounting Mounting the device 6.2.1 Required mounting tools • For flanges and other process connections: appropriate mounting tools • To turn the housing: Hexagonal wrench 8 mm 6.2.2 Mounting the device Flange mounting If a seal is used, be sure to use unpainted metal bolts to ensure good electrical contact between probe flange and process flange.
  • Page 18 Mounting Levelflex FMP55 FOUNDATION Fieldbus • The probe with the process connection • The electronics housing • The mounting bracket for wall or pipe mounting of the electronics housing • The connection cable (length as ordered). The cable has got one straight and one angled plug (90°).
  • Page 19 Levelflex FMP55 FOUNDATION Fieldbus Mounting Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 127...140 (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  4 Mounting the electronics housing using the mounting bracket; dimensions: mm (in) Wall mounting Pipe mounting Connecting the cable...
  • Page 20 Mounting Levelflex FMP55 FOUNDATION Fieldbus 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) = 100 (4) = 100 (4) 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) A0014794  5 Connecting the cable. There are the following possibilities:...
  • Page 21 Levelflex FMP55 FOUNDATION Fieldbus Mounting Unscrew the securing screw using an open-ended wrench. Rotate the housing in the desired direction. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or stainless steel housing). 6.2.5 Turning the display...
  • Page 22 Mounting Levelflex FMP55 FOUNDATION Fieldbus Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Closing electronics compartment cover 3 mm 2,5 Nm A0021451 Screw back firmly electronics compartment cover.

  • Page 23: Post-Installation Check

    Levelflex FMP55 FOUNDATION Fieldbus Mounting Post-installation check Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 24: Electrical Connection

    Electrical connection Levelflex FMP55 FOUNDATION Fieldbus Electrical connection Connection conditions 7.1.1 Terminal assignment Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V A0036519  6 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V Connection 4-20 mA HART (active): terminals 3 and 4...
  • Page 25 Levelflex FMP55 FOUNDATION Fieldbus Electrical connection CAUTION To ensure electrical safety: ‣ Do not disconnect the protective connection. ‣ Disconnect the supply voltage before disconnecting the protective earth. Connect protective earth to the internal ground terminal (3) before connecting the supply voltage.
  • Page 26 Electrical connection Levelflex FMP55 FOUNDATION Fieldbus Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500  7 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage...
  • Page 27 Levelflex FMP55 FOUNDATION Fieldbus Electrical connection Block diagram PROFIBUS PA / FOUNDATION Fieldbus A0036530  8 Block diagram PROFIBUS PA / FOUNDATION Fieldbus Cable screen; observe cable specifications Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector)
  • Page 28 Electrical connection Levelflex FMP55 FOUNDATION Fieldbus 7.1.2 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal +...
  • Page 29 Levelflex FMP55 FOUNDATION Fieldbus Electrical connection 7.1.3 Power supply PROFIBUS PA, FOUNDATION Fieldbus "Power supply; Output" "Approval" Terminal voltage E: 2-wire; FOUNDATION Fieldbus, switch output • Non-Ex 9 to 32 V G: 2-wire; PROFIBUS PA, switch output • Ex nA •...

  • Page 30: Connecting The Measuring Device

    Electrical connection Levelflex FMP55 FOUNDATION Fieldbus External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K Connecting the measuring device...
  • Page 31 Levelflex FMP55 FOUNDATION Fieldbus Electrical connection 7.2.2 Connecting A0036418  9 Dimensions: mm (in) Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. Remove the cable sheath.
  • Page 32 Electrical connection Levelflex FMP55 FOUNDATION Fieldbus 7.2.3 Plug-in spring-force terminals In the case of devices without integrated overvoltage protection, electrical connection is via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can be inserted directly into the terminal without using the lever, and create a contact automatically.

  • Page 33: Post-Connection Check

    Levelflex FMP55 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Turning securing clamp 90 ° counterclockwise and tighten the clamp with 2.5 Nm (1.84 lbf ft) again using the Allen key (3 mm). Post-connection check  Is the device or cable undamaged (visual check)? ...

  • Page 34: Integration Into The Foundation Fieldbus Network

    Integration into a FOUNDATION Fieldbus network Levelflex FMP55 FOUNDATION Fieldbus Integration into the FOUNDATION Fieldbus network • For more in-depth information on integrating the device into the FF system, see the description for the configuration software used. • When integrating the field devices into the FF system, make sure you are using the right files.
  • Page 35 Levelflex FMP55 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network – EH_Levelflex_xxxxxxxxxx – RESOURCE_xxxxxxxxxxx (RB2) SETUP_ xxxxxxxxxxx (TRDSUP) ADV_SETUP_ xxxxxxxxxxx (TRDASUP) DISPLAY_ xxxxxxxxxxx (TRDDISP) DIAGNOSTIC_ xxxxxxxxxxx (TRDDIAG) EXPERT_CONFIG_ xxxxxxxxxxx (TRDEXP) EXPERT_INFO_ xxxxxxxxxxx (TRDEXPIN) SERVICE_SENSOR_ xxxxxxxxxxx (TRDSRVSB) SERVICE_INFO_ xxxxxxxxxxx (TRDSRVIF) DATA_TRANSFER_...

  • Page 36: Block Model

    Endress+Hauser Guideline BA00062S. The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. Endress+Hauser...

  • Page 37: Assignment Of The Measured Values (Channel) In An Ai Block

    Levelflex FMP55 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network 8.4.2 Block configuration when device is delivered Device_01 4841.000 DIAGNOSTIC RESOURCE DISPLAY DATA_TRANSFER SETUP ANALOG_INPUT_1 ADV_SETUP ANALOG_INPUT_2 EXPERT_CONFIG EXPERT_INFO SERVICE_SENSOR SERVICE_INFO ARITHMETIC SIGNAL_CHAR INPUT_SELECTOR INTEGRATOR ANALOG_ALARM A0017217  12 Block configuration when device is delivered...

  • Page 38: Methods

    Integration into a FOUNDATION Fieldbus network Levelflex FMP55 FOUNDATION Fieldbus Channel Measured value 32786 Absolute echo amplitude 32787 Absolute interface amplitude 32856 Distance 32885 Elektronic temperature 32938 Interface linearized 32949 Level linearized 33044 Relative echo amplitude 33045 Relative interface amplitude...

  • Page 39: Commissioning Via Wizard

    If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser...

  • Page 40: Commissioning (Via Operating Menu)

    Commissioning (via operating menu) Levelflex FMP55 FOUNDATION Fieldbus Commissioning (via operating menu) 10.1 Display and operating module 10.1.1 Display appearance User ABC_ DEFG HIJK LMNO PQRS TUVW A0012635  13 Appearance of the display and operation module for on-site operation Measured value display (1 value max.
  • Page 41 Levelflex FMP55 FOUNDATION Fieldbus Commissioning (via operating menu) 10.1.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0018330 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).
  • Page 42 Commissioning (via operating menu) Levelflex FMP55 FOUNDATION Fieldbus 10.1.3 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Env.curve •...

  • Page 43: Operating Menu

    Levelflex FMP55 FOUNDATION Fieldbus Commissioning (via operating menu) 10.2 Operating menu Parameter/Submenu Meaning Description Language Defines the operating language of the on-site display. Setup When appropriate values have been assigned toall setup parameters, the measured should be completely configured in a standard application.

  • Page 44: Unlock The Device

    Commissioning (via operating menu) Levelflex FMP55 FOUNDATION Fieldbus 10.3 Unlock the device If the device has been locked, it must be unlocked before the measurement can be configured. For details refer to the Operating Instructions of the device: BA01054F (FMP55, FOUNDATION Fieldbus) 10.4...

  • Page 45: Configuration Of An Interface Measurement

    Levelflex FMP55 FOUNDATION Fieldbus Commissioning (via operating menu) 10.5 Configuration of an interface measurement 100% DK (DC ) A0011177  15 Configuration parameters for interface measurements R = Reference pioint of the measurement = Interface distance (Distance from reference point to lower medium)

  • Page 46: User-Specific Applications

    Commissioning (via operating menu) Levelflex FMP55 FOUNDATION Fieldbus Setup  →  Empty calibration  Enter the distance E between the reference point R and the minimum level (0%). Setup  →  Full calibration  Enter distance F between the minimum (0%) and maximum (100%) level.

  • Page 47: Commissioning (Block-Based Operation)

    Levelflex FMP55 FOUNDATION Fieldbus Commissioning (block-based operation) Commissioning (block-based operation) 11.1 Block configuration 11.1.1 Preparatory steps Switch on the device. Note the DEVICE_ID. Open the configuration program. Load Cff and device description files into the host system or the configuration program.
  • Page 48 Commissioning (block-based operation) Levelflex FMP55 FOUNDATION Fieldbus 11.1.4 Configuring the Analog Input Blocks The device has 2 Analog Input Blocks that can be assigned as required to the various process variables. Default settings Analog Input Block CHANNEL AI 1 32949: Level linearized...

  • Page 49: Scaling Of The Measured Value In An Ai Block

    Levelflex FMP55 FOUNDATION Fieldbus Commissioning (block-based operation) 11.2 Scaling of the measured value in an AI Block If the type of linearisation L_TYPE = indirect has been selected in an AI block, the measured value can be scaled within the block. The input range is defined by the XD_SCALE parameter Through its EU_0 and EU_100 elements.

  • Page 50: Language Selection

    Commissioning (block-based operation) Levelflex FMP55 FOUNDATION Fieldbus 11.3 Language selection Step Block Parameter Action DISPLAY (TRDDISP) Language (language) Select language Selection: • 32805: Arabian • 32824: Chinese simplified • 32842: Czech • 32881: Dutch • 32888: English • 32917: French •...
  • Page 51 Levelflex FMP55 FOUNDATION Fieldbus Commissioning (block-based operation) 100% DK (DC ) A0011177  17 Configuration parameters for interface measurements R = Reference pioint of the measurement = Distance of interface (Distance from reference point to lower medium) E = Empty calibration (= zero point)
  • Page 52 Commissioning (block-based operation) Levelflex FMP55 FOUNDATION Fieldbus Step Block Parameter Action SETUP (TRDSUP) Tank type (tank_type) Select tank type. Selection: • 32816: Bypass / pipe • 33288: Metallic • 33302: Coaxial • 33432: Twin rope • 33433: Twin rod • 33437: Rope...
  • Page 53 Levelflex FMP55 FOUNDATION Fieldbus Commissioning (block-based operation) Step Block Parameter Action SETUP (TRDSUP) Signal quality Displays the signal (signal_quality) quality of the level echo. SETUP (TRDSUP) Confirm distance Compare the displayed (confirm_distance) distance to the real distance in order to start the recording of the mapping curve.

  • Page 54: Configuration Of The On-Site Display

    Commissioning (block-based operation) Levelflex FMP55 FOUNDATION Fieldbus 11.5 Configuration of the on-site display 11.5.1 Factory settings of the on-site display for interface measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current output outputs Format display 1 value, max.
  • Page 55 Levelflex FMP55 FOUNDATION Fieldbus Commissioning (block-based operation) HistoROM A HistoROM is a "non-volatile" device memory in the form of an EEPROM. While this action is in progress, the configuration cannot be edited via the local display and a message on the processing status appears on the display.
