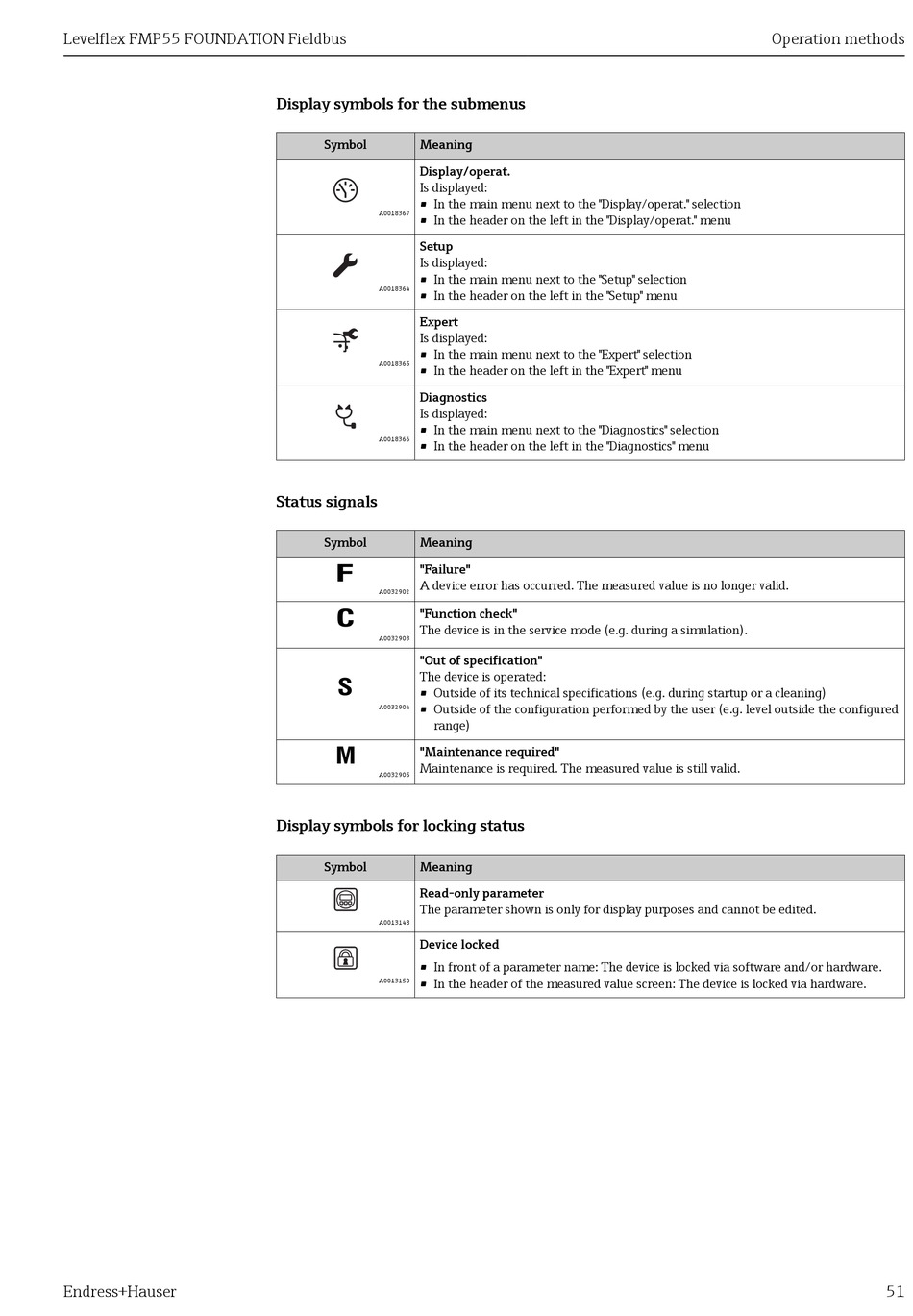

Display symbols for the submenus
Symbol Meaning
Display/operat.
Is displayed:
• In the main menu next to the "Display/operat." selection
A0018367
• In the header on the left in the "Display/operat." menu
Setup
Is displayed:
• In the main menu next to the "Setup" selection
A0018364
• In the header on the left in the "Setup" menu
Expert
Is displayed:
• In the main menu next to the "Expert" selection
A0018365
• In the header on the left in the "Expert" menu
Diagnostics
Is displayed:
• In the main menu next to the "Diagnostics" selection
A0018366
• In the header on the left in the "Diagnostics" menu
Status signals
Symbol Meaning
"Failure"
A device error has occurred. The measured value is no longer valid.
A0032902
"Function check"
The device is in the service mode (e.g. during a simulation).
A0032903
"Out of specification"
The device is operated:
S
• Outside of its technical specifications (e.g. during startup or a cleaning)
• Outside of the configuration performed by the user (e.g. level outside the configured
A0032904
range)
"Maintenance required"
Maintenance is required. The measured value is still valid.
A0032905
Display symbols for locking status
Symbol Meaning
Read-only parameter
The parameter shown is only for display purposes and cannot be edited.
A0013148
Device locked
• In front of a parameter name: The device is locked via software and/or hardware.
• In the header of the measured value screen: The device is locked via hardware.
A0013150
Operation methods
