Levelflex FMP55 FOUNDATION Fieldbus
Endress+Hauser
R
D
L
D
I
UP
LN
L
L
L
I

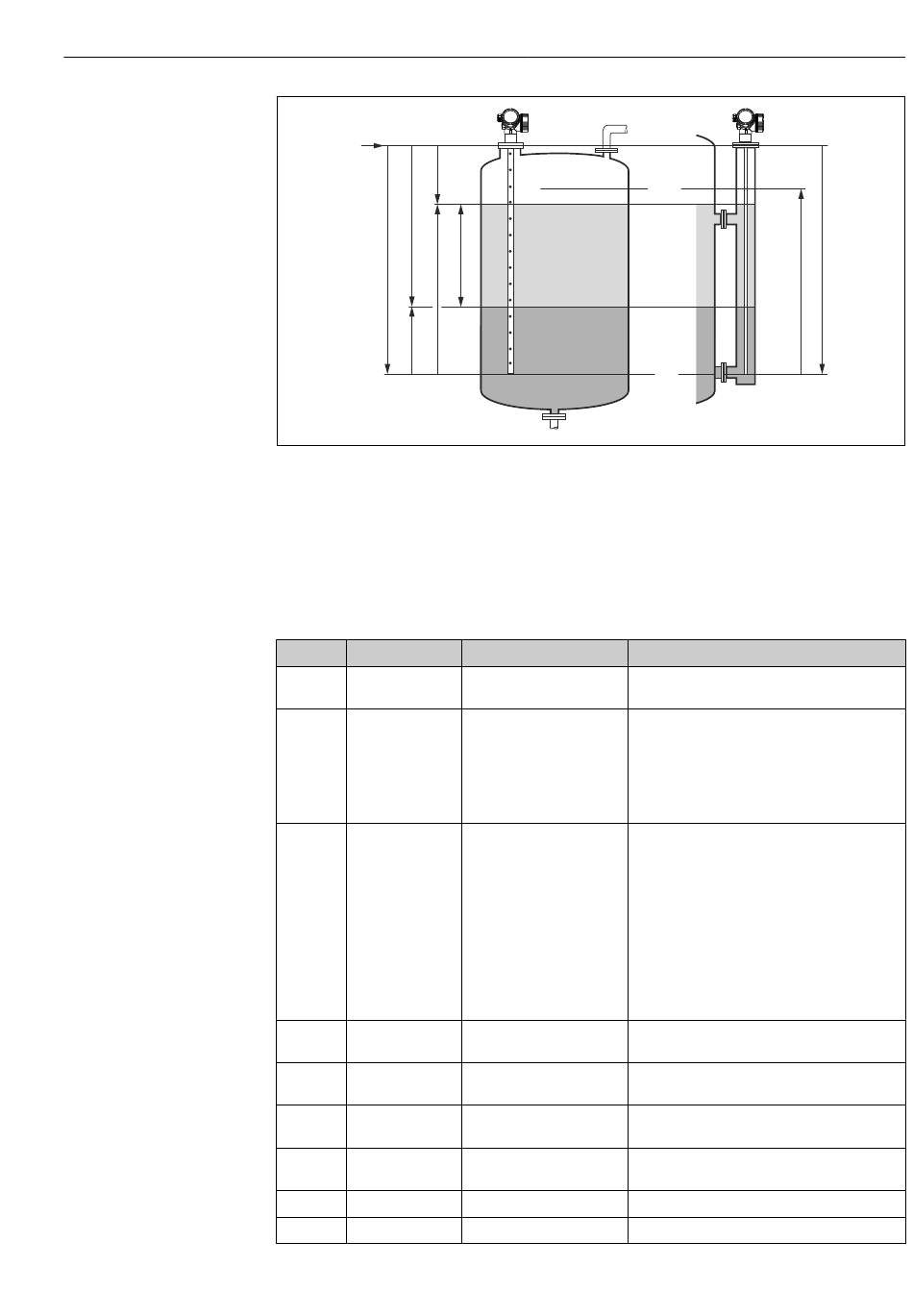

 25 Configuration parameters for interface measurement
R = Reference point of measurement
E = Empty calibration (= zero point)
F = Full calibration (= span)
LN = Probe length
UP = Thickness of upper medium
Step Block
1 SETUP (TRDSUP)
2 SETUP (TRDSUP)
3 SETUP (TRDSUP)
4 SETUP (TRDSUP)
5 SETUP (TRDSUP)
6 SETUP (TRDSUP)
7 SETUP (TRDSUP)
8 SETUP (TRDSUP)
9 SETUP (TRDSUP)
Commissioning (block-oriented operation)
DK ( DC )
1 1
DK (DC )
2 2
D = Distance to interface (distance from flange to DC
I
L = Interface level
I
D = Total level distance
L
L = Total level
L
Parameter Action
Operating mode Select 32940: Interface+capacitance.
(operating_mode)
Distance unit Select the distance unit.
(distance_unit)
Options:
• 1010: m
• 1013: mm
• 1018: in
• 1019: ft
Tank type (tank_type) Select tank type.
Options:
• 32816: Bypass/stilling well
• 33288: Metal
• 33302: Coax
• 33432: Double cable
• 33433: Double rod
• 33437: Rope, metal centering disk
• 33438: Rod, metal centering disk
• 33441: Non-metal
• 33444: Installation outside
Tube diameter Specify the diameter of the bypass or stilling
1)
(tube_diameter) well.
DC value (dc_value) Specify the dielectric constant of the upper
medium.
Empty calibration Specify the empty distance E (distance from
(empty_calibration) reference point R to 0% mark).
Full calibration Specify the full distance F (distance from the 0%
(full_calibration) mark to the 100% mark).
Level (level) Displays the measured level L.
Interface (interface) Displays the interface height L
100%
E
F
0%
)
2
.
I
A0011177
