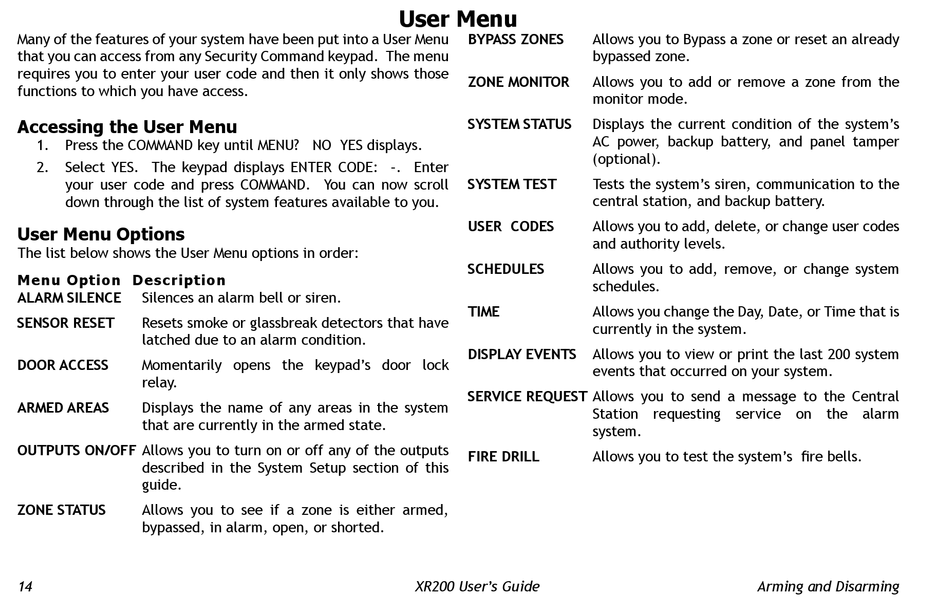

Many of the features of your system have been put into a User Menu
that you can access from any Security Command keypad. The menu
requires you to enter your user code and then it only shows those
functions to which you have access.
Accessing the User Menu
1.
Press the COMMAND key until MENU? NO YES displays.
2.
Select YES. The keypad displays ENTER CODE: –. Enter
your user code and press COMMAND. You can now scroll
down through the list of system features available to you.
User Menu Options
The list below shows the User Menu options in order:
Menu Option Description
ALARM SILENCE
Silences an alarm bell or siren.
SENSOR RESET
Resets smoke or glassbreak detectors that have
latched due to an alarm condition.
DOOR ACCESS
Momentarily opens the keypad's door lock
relay.
ARMED AREAS
Displays the name of any areas in the system
that are currently in the armed state.
OUTPUTS ON/OFF Allows you to turn on or off any of the outputs
described in the System Setup section of this
guide.
ZONE STATUS
Allows you to see if a zone is either armed,
bypassed, in alarm, open, or shorted.
14
User Menu
BYPASS ZONES
ZONE MONITOR
SYSTEM STATUS
SYSTEM TEST
USER CODES
SCHEDULES
TIME
DISPLAY EVENTS
SERVICE REQUEST Allows you to send a message to the Central
FIRE DRILL
XR200 User's Guide
Allows you to Bypass a zone or reset an already
bypassed zone.
Allows you to add or remove a zone from the
monitor mode.
Displays the current condition of the system's
AC power, backup battery, and panel tamper
(optional).
Tests the system's siren, communication to the
central station, and backup battery.
Allows you to add, delete, or change user codes
and authority levels.
Allows you to add, remove, or change system
schedules.
Allows you change the Day, Date, or Time that is
currently in the system.
Allows you to view or print the last 200 system
events that occurred on your system.
Station requesting service on the alarm
system.
Allows you to test the system's Þ re bells.
Arming and Disarming
