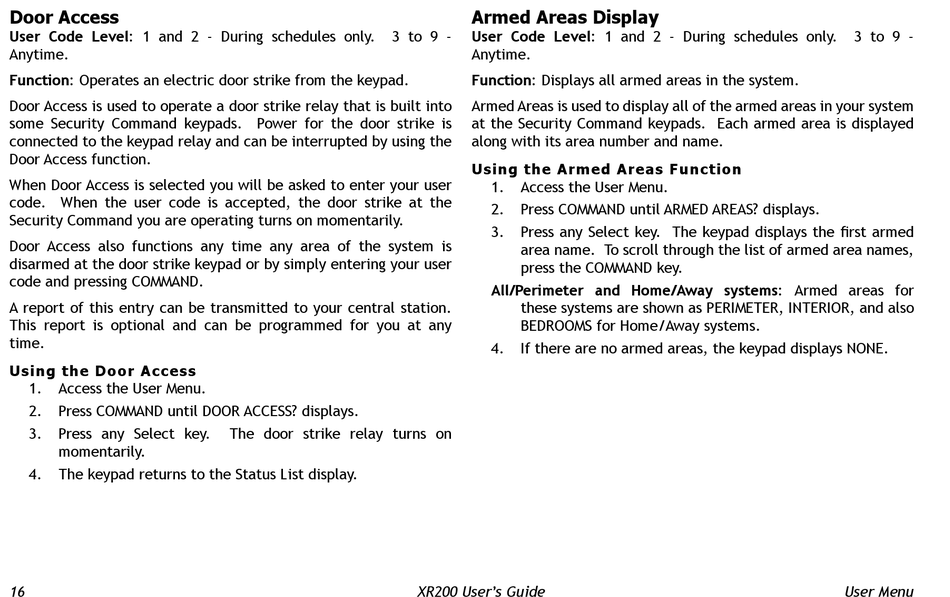

Door Access

User Code Level: 1 and 2 - During schedules only.
Anytime.
Function: Operates an electric door strike from the keypad.
Door Access is used to operate a door strike relay that is built into
some Security Command keypads. Power for the door strike is
connected to the keypad relay and can be interrupted by using the
Door Access function.
When Door Access is selected you will be asked to enter your user
code. When the user code is accepted, the door strike at the
Security Command you are operating turns on momentarily.
Door Access also functions any time any area of the system is
disarmed at the door strike keypad or by simply entering your user
code and pressing COMMAND.
A report of this entry can be transmitted to your central station.
This report is optional and can be programmed for you at any
time.
Using the Door Access
1. Access the User Menu.
2. Press COMMAND until DOOR ACCESS? displays.
3. Press any Select key.
momentarily.
4. The keypad returns to the Status List display.
16
3 to 9 -
The door strike relay turns on

Armed Areas Display

User Code Level: 1 and 2 - During schedules only.
Anytime.
Function: Displays all armed areas in the system.
Armed Areas is used to display all of the armed areas in your system
at the Security Command keypads. Each armed area is displayed
along with its area number and name.
Using the Armed Areas Function
1. Access the User Menu.
2. Press COMMAND until ARMED AREAS? displays.
3. Press any Select key. The keypad displays the Þ rst armed
area name. To scroll through the list of armed area names,
press the COMMAND key.
All/Perimeter and Home/Away systems: Armed areas for
these systems are shown as PERIMETER, INTERIOR, and also
BEDROOMS for Home/Away systems.
4. If there are no armed areas, the keypad displays NONE.
XR200 User's Guide
3 to 9 -
User Menu
