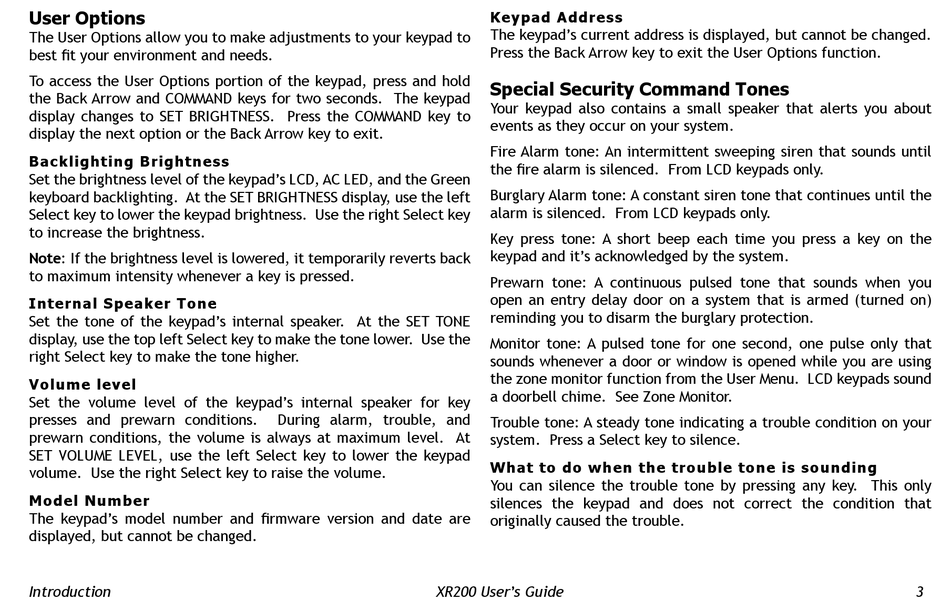

User Options; Special Security Command Tones - Security Command XR200 User Manual

User Options

The User Options allow you to make adjustments to your keypad to
best Þ t your environment and needs.
To access the User Options portion of the keypad, press and hold
the Back Arrow and COMMAND keys for two seconds. The keypad
display changes to SET BRIGHTNESS. Press the COMMAND key to
display the next option or the Back Arrow key to exit.
Backlighting Brightness
Set the brightness level of the keypad's LCD, AC LED, and the Green
keyboard backlighting. At the SET BRIGHTNESS display, use the left
Select key to lower the keypad brightness. Use the right Select key
to increase the brightness.
Note: If the brightness level is lowered, it temporarily reverts back
to maximum intensity whenever a key is pressed.
Internal Speaker Tone
Set the tone of the keypad's internal speaker. At the SET TONE
display, use the top left Select key to make the tone lower. Use the
right Select key to make the tone higher.
Volume level
Set the volume level of the keypad's internal speaker for key
presses and prewarn conditions.
prewarn conditions, the volume is always at maximum level. At
SET VOLUME LEVEL, use the left Select key to lower the keypad
volume. Use the right Select key to raise the volume.
Model Number
The keypad's model number and Þ rmware version and date are
displayed, but cannot be changed.
Introduction
During alarm, trouble, and
XR200 User's Guide
Keypad Address
The keypad's current address is displayed, but cannot be changed.
Press the Back Arrow key to exit the User Options function.

Special Security Command Tones

Your keypad also contains a small speaker that alerts you about
events as they occur on your system.
Fire Alarm tone: An intermittent sweeping siren that sounds until
the Þ re alarm is silenced. From LCD keypads only.
Burglary Alarm tone: A constant siren tone that continues until the
alarm is silenced. From LCD keypads only.
Key press tone: A short beep each time you press a key on the
keypad and it's acknowledged by the system.
Prewarn tone: A continuous pulsed tone that sounds when you
open an entry delay door on a system that is armed (turned on)
reminding you to disarm the burglary protection.
Monitor tone: A pulsed tone for one second, one pulse only that
sounds whenever a door or window is opened while you are using
the zone monitor function from the User Menu. LCD keypads sound
a doorbell chime. See Zone Monitor.
Trouble tone: A steady tone indicating a trouble condition on your
system. Press a Select key to silence.
What to do when the trouble tone is sounding
You can silence the trouble tone by pressing any key. This only
silences the keypad and does not correct the condition that
originally caused the trouble.
3
