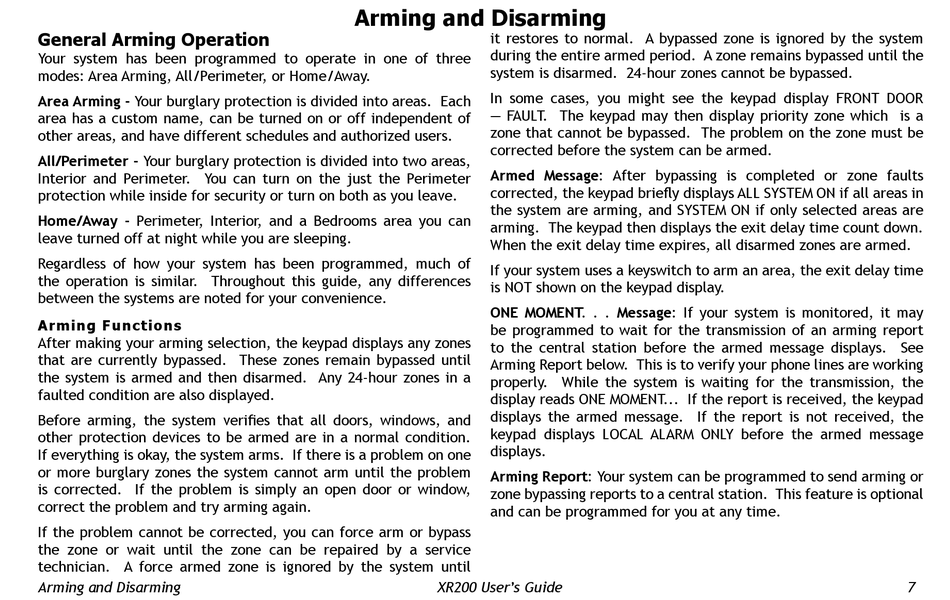

General Arming Operation
Your system has been programmed to operate in one of three
modes: Area Arming, All/Perimeter, or Home/Away.
Area Arming - Your burglary protection is divided into areas. Each
area has a custom name, can be turned on or off independent of
other areas, and have different schedules and authorized users.
All/Perimeter - Your burglary protection is divided into two areas,
Interior and Perimeter. You can turn on the just the Perimeter
protection while inside for security or turn on both as you leave.
Home/Away - Perimeter, Interior, and a Bedrooms area you can
leave turned off at night while you are sleeping.
Regardless of how your system has been programmed, much of
the operation is similar. Throughout this guide, any differences
between the systems are noted for your convenience.
Arming Functions
After making your arming selection, the keypad displays any zones
that are currently bypassed. These zones remain by passed until
the system is armed and then disarmed. Any 24-hour zones in a
faulted condition are also displayed.
Before arming, the system veriÞ es that all doors, win dows, and
other protection devices to be armed are in a normal condition.
If everything is okay, the system arms. If there is a prob lem on one
or more burglary zones the system cannot arm until the problem
is corrected. If the problem is simply an open door or window,
correct the problem and try arming again.
If the problem cannot be corrected, you can force arm or bypass
the zone or wait until the zone can be repaired by a service
technician. A force armed zone is ignored by the system until
Arming and Disarming
Arming and Disarming
it restores to normal. A bypassed zone is ignored by the system
during the entire armed period. A zone remains bypassed until the
system is disarmed. 24-hour zones cannot be bypassed.
In some cases, you might see the keypad display FRONT DOOR
— FAULT. The keypad may then display priority zone which is a
zone that cannot be bypassed. The problem on the zone must be
corrected before the system can be armed.
Armed Message: After bypassing is completed or zone faults
corrected, the keypad brieß y displays ALL SYSTEM ON if all areas in
the system are arming, and SYSTEM ON if only selected areas are
arming. The keypad then displays the exit delay time count down.
When the exit delay time ex pires, all disarmed zones are armed.
If your system uses a keyswitch to arm an area, the exit delay time
is NOT shown on the keypad display.
ONE MOMENT. . . Message: If your system is monitored, it may
be programmed to wait for the transmission of an arming report
to the central station before the armed mes sage displays. See
Arming Report below. This is to verify your phone lines are working
properly. While the system is waiting for the transmission, the
display reads ONE MO MENT... If the report is received, the keypad
displays the armed message. If the report is not received, the
keypad displays LOCAL ALARM ONLY before the armed message
displays.
Arming Report: Your system can be programmed to send arming or
zone bypassing reports to a central station. This feature is optional
and can be programmed for you at any time.
XR200 User's Guide
7
