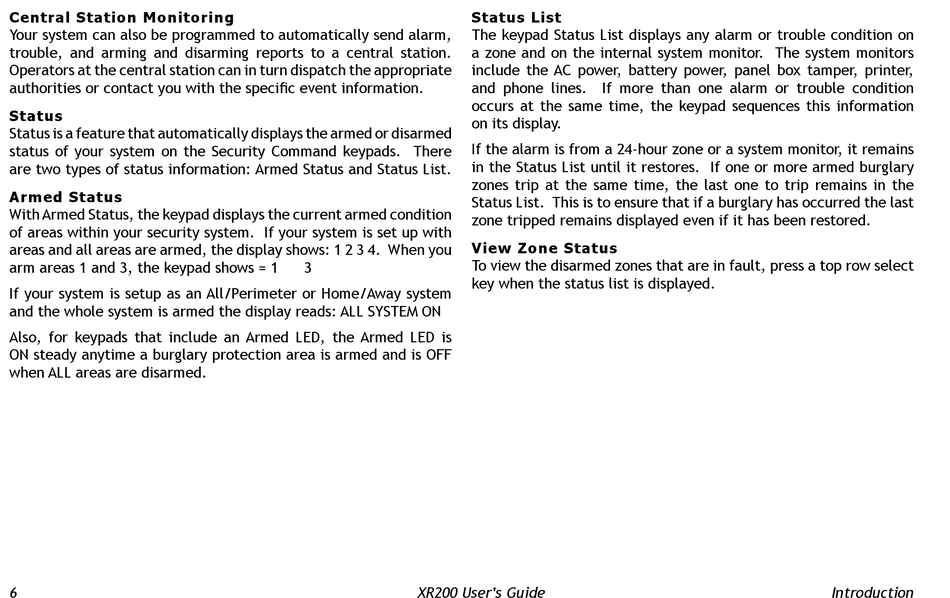

Central Station Monitoring
Your system can also be programmed to automatically send alarm,
trouble, and arming and disarming reports to a central station.
Operators at the central station can in turn dispatch the appropriate
authorities or contact you with the speciÞ c event information.
Status
Status is a feature that automatically displays the armed or dis armed
status of your system on the Security Command keypads. There
are two types of status information: Armed Status and Status List.
Armed Status
With Armed Status, the keypad displays the current armed condition
of areas within your security system. If your system is set up with
areas and all areas are armed, the display shows: 1 2 3 4. When you
arm areas 1 and 3, the keypad shows = 1
If your system is setup as an All/Perimeter or Home/Away system
and the whole system is armed the display reads: ALL SYSTEM ON
Also, for keypads that include an Armed LED, the Armed LED is
ON steady anytime a burglary protection area is armed and is OFF
when ALL areas are disarmed.
6
Status List
The keypad Status List displays any alarm or trouble condition on
a zone and on the internal system monitor. The system monitors
include the AC power, battery power, panel box tamper, printer,
and phone lines. If more than one alarm or trouble condition
occurs at the same time, the keypad sequences this information
on its display.
If the alarm is from a 24-hour zone or a system monitor, it remains
in the Sta tus List until it re stores. If one or more armed burglary
zones trip at the same time, the last one to trip remains in the
Status List. This is to ensure that if a burglary has occurred the last
zone tripped remains displayed even if it has been restored.
View Zone Status
To view the disarmed zones that are in fault, press a top row select
3
key when the status list is displayed.
